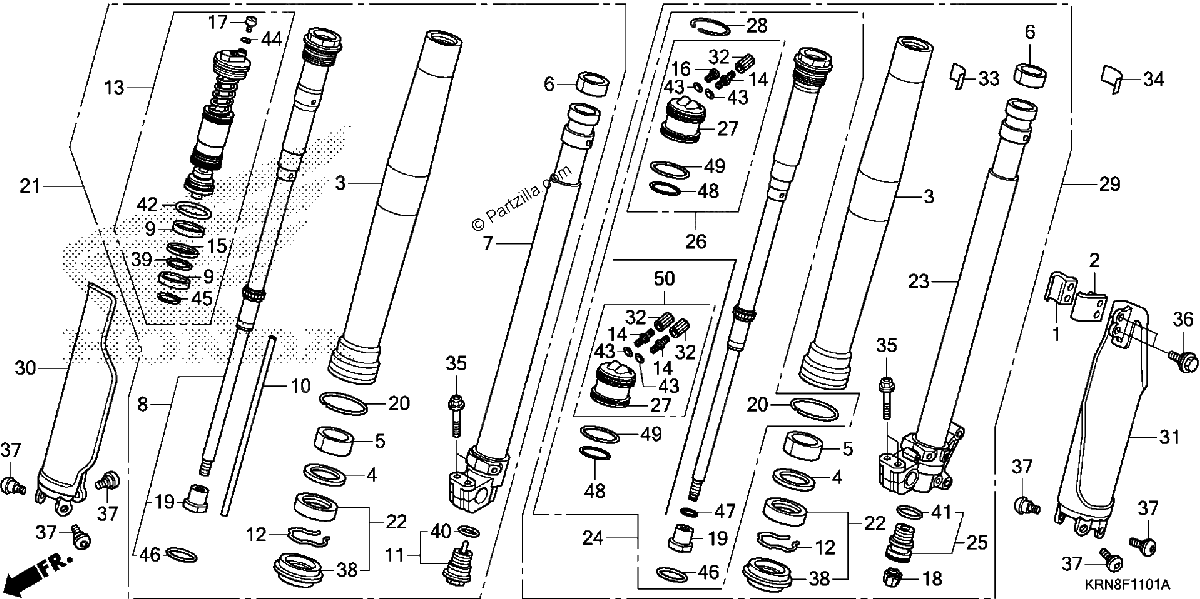

FRONT FORK 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CLAMP A, FR. BRAKE HOSE
$7.70¢3 850
#2
CLAMP B, FR. BRAKE HOSE
$5.67¢2 838
#3
TUBE (OUTER)
$752.99¢376 494
#4
RING, BACK-UP
$10.77¢5 387
#5
BUSH, GUIDE
$15.20¢7 600
#6
BUSH, SLIDER
$14.95¢7 475
#7
PIPE, R. SLIDE
$581.89¢290 944
#8
DAMPER, FR.
$569.23¢284 613
#9
BUSH, SLIDER
$17.66¢8 831
#10
COLLAR, REBOUND NEEDLE
$13.75¢6 875
#11
BOLT, CENTER
$45.36¢22 681
#12
RING, OIL SEAL STOP
$4.54¢2 269
#13
BOLT ASSY., FR. FORK
$324.88¢162 438
#14
VALVE, AIR
$8.63¢4 313
#15
RING, PISTON
$12.89¢6 444
#16
BOLT, PLUG
$11.27¢5 637
#17
BOLT, PLUG
$7.52¢3 762
#18
CAP, AIR VALVE
$2.54¢1 269
#19
NUT, LOCK
$15.19¢7 594
#20
RING, WEAR
$9.36¢4 681
#21
FORK SUB-ASSY., R. FR. (COO) (SHOWA)
$1896.56¢948 281
#22
SEAL SET, FR. FORK
$30.66¢15 331
#23
PIPE, L. SLIDE
$581.89¢290 944
#24
ROD, JOINT
No Disponible
#25
BOLT, SEALING
$42.46¢21 231
#26
CAP, CHAMBER
$101.35¢50 675
#27
CAP, CHAMBER
$70.03¢35 013
#28
RING, STOPPER
$8.79¢4 394
#29
FORK SUB-ASSY., L. FR. (COO) (SHOWA)
$1753.71¢876 856
#30
PROTECTOR, R. FR. FORK *NH196* (ROSS WHITE)
$100.13¢50 063
#31
PROTECTOR, L. FR. FORK *NH196* (ROSS WHITE)
$100.13¢50 063
#32
CAP, AIR VALVE
$7.01¢3 506
#33
LABEL, FR. FORK
$7.25¢3 625
#35
BOLT, FLANGE (8X40)
$2.75¢1 375
#36
BOLT, FLANGE (6MM)
$3.65¢1 825
#37
BOLT, PROTECTOR
$4.28¢2 138
#38
DUST SEAL
$14.75¢7 375
#39
O-RING (31.6X1.8)
$3.98¢1 988
#40
O-RING (22.1X1.9)
$3.24¢1 619
#41
O-RING (27.7X1.9)
$2.92¢1 463
#42
O-RING (42.2X2.4)
$7.16¢3 581
#43
O-RING (5.8X1.9)
$3.65¢1 825
#43
O-RING (5.8X1.9)
$3.65¢1 825
#44
O-RING (3.5X1.5)
$3.49¢1 744
#45
O-RING (35.5X2)
$3.09¢1 544
#46
O-RING (47.2X2.4)
$4.58¢2 288
#47
O-RING (9.5X1.5)
$2.66¢1 331
#48
O-RING (36.5X2.0)
$4.00¢2 000
#49
O-RING (39.5X2.0)
$4.97¢2 488
