SIDE COVER REAR COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

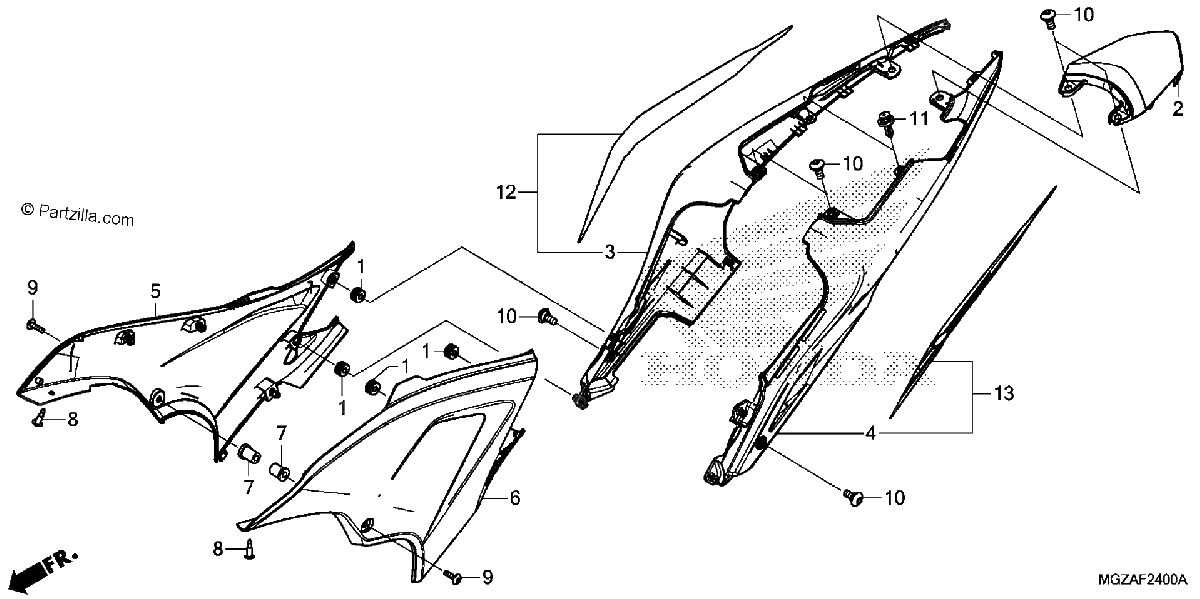

Diagrama de SIDE COVER REAR COWL

Repuestos

#1
11344-MB0-000
GROMMET A, RR. COVER (8X16X6.6)
$3.36¢1 679
1
#001
11344-MB0-000
GROMMET A, RR. COVER (8X16X6.6)
$3.36¢1 679
1
#2
77231-MGZ-J00ZB
COWL, Rear CENTER R263 (MILLENNIUM RED)
$43.81¢21 908
1
#002
77231-MGZ-J00ZB
COWL, Rear CENTER R263 (MILLENNIUM RED)
$43.81¢21 908
1
#005
83510-MGZ-J00
COVER, R. SIDE
$21.85¢10 925
1
#5
83510-MGZ-J00
COVER, R. SIDE
$21.85¢10 925
1
#006
83610-MGZ-J00
COVER, L. SIDE
$20.08¢10 040
1
#6
83610-MGZ-J00
COVER, L. SIDE
$20.08¢10 040
1
#7
90114-KAS-900
NUT, COWL SETTING (6MM)
$5.62¢2 812
1
#007
90114-KAS-900
NUT, COWL SETTING (6MM)
$5.62¢2 812
1
#8
90116-MCS-G00
RIVET, PUSH
$1.64¢822
1
#008
90116-MCS-G00
RIVET, PUSH
$1.64¢822
1
#009
90130-KYJ-900
SCREW, PAN (6X22)
$0.98¢489
1
#9
90130-KYJ-900
SCREW, PAN (6X22)
$0.98¢489
1
#010
90133-KPP-T00
SCREW, PAN (6X14)
$1.51¢753
1
#10
90133-KPP-T00
SCREW, PAN (6X14)
$1.51¢753
1
#11
90683-GR1-003
CLIP, BODY COVER
$3.36¢1 679
1
#011
90683-GR1-003
CLIP, BODY COVER
$3.36¢1 679
1
#12
77240-MJV-J62ZC
COWL SET, Right Rear. (TYPE1) (WL)
$82.54¢41 268
1
#012
77240-MJV-J62ZC
COWL SET, Right Rear. (TYPE1) (WL)
$82.54¢41 268
1
#13
77250-MJV-J62ZD
COWL SET, L Rear. (TYPE1) (WL)
$82.56¢41 279
1
#013
77250-MJV-J62ZD
COWL SET, L Rear. (TYPE1) (WL)
$82.56¢41 279
1
#013
77250-MJV-J60ZD
COWL SET, L. RR. (TYPE1) (WL)
$82.56¢41 279
1
#13
77250-MJV-J60ZD
COWL SET, L. RR. (TYPE1) (WL)
$82.56¢41 279
1
