CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

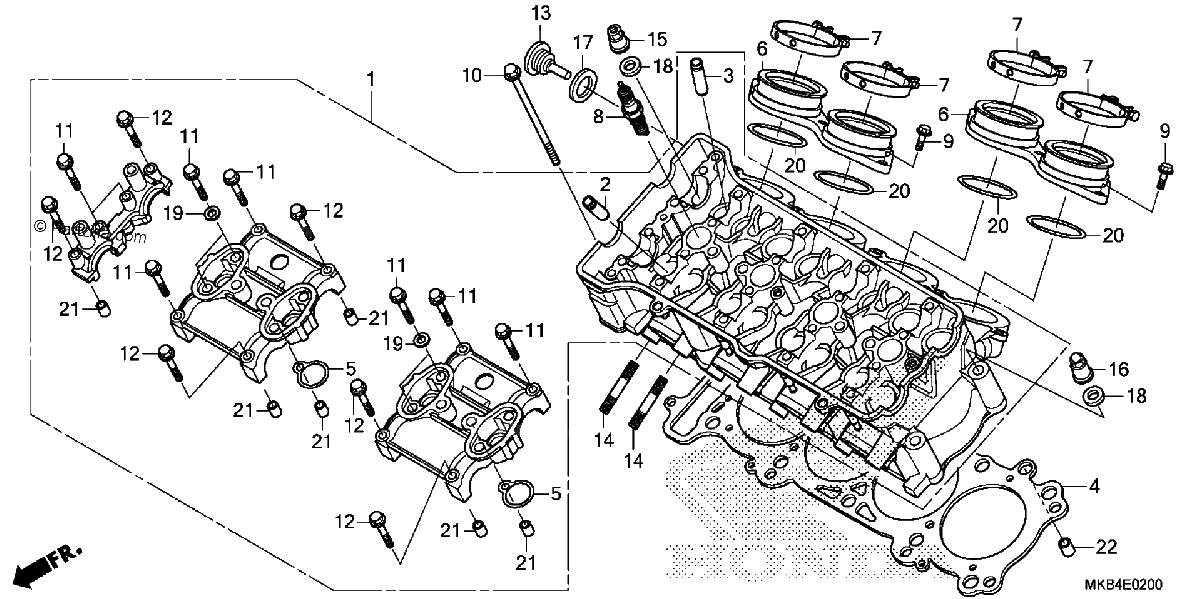

Diagrama de CYLINDER HEAD

Repuestos

#1
12010-MGP-D60
CYLINDER HEAD ASSY.
$2277.75¢1 138 875
1
#2
12204-MBW-305
(EXHAUST SIDE)
$20.55¢10 275
1
#3
12204-MFL-305
GUIDE, VALVE (OVER SIZE)
$21.80¢10 900
1
#4
12251-MFL-003
GASKET, CYLINDER HEAD
$104.19¢52 094
1
#5
12395-MBW-003
GASKET, PLUG HOLE
$5.64¢2 819
1
#6
16210-MGP-D60
INSULATOR, THROTTLE BODY
$84.75¢42 375
1
#7
16218-MFL-000
BAND, INSULATOR
$8.20¢4 100
1
#8
31912-MFL-003
SPARK PLUG (IMR9E-9HES) (NGK)
$20.47¢10 237
1
#8
31922-MEL-003
SPARK PLUG (VUH27ES) (DENSO)
$36.59¢18 294
1
#9
90004-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$4.25¢2 125
1
#10
90012-MFL-000
BOLT, FLANGE (6X105)
$4.33¢2 163
1
#11
90016-KT7-000
BOLT, FLANGE (6X37)
$3.65¢1 825
1
#12
90018-425-000
BOLT, FLANGE (6X48)
$4.06¢2 031
1
#13
90023-MFL-000
SHAFT B, CAM CHAIN TENSIONER
$30.88¢15 438
1
#14
90035-MM5-000
BOLT, STUD (8X24)
$6.20¢3 100
1
#15
90232-MFL-000
NUT, SPECIAL (9MM)
$4.54¢2 269
1
#16
90234-MFL-000
NUT, SPECIAL CAP (9MM)
$7.25¢3 625
1
#17
90403-MFL-000
WASHER, SEALING (24MM)
$1.85¢925
1
#18
90405-MFL-000
WASHER, PLAIN (9MM)
$2.75¢1 375
1
#19
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#20
91301-MEL-003
O-RING (43.7X2.5)
$5.39¢2 694
1
#21
94301-08200
PIN, DOWEL (8X20)
$2.89¢1 444
1
#22
94301-10160
PIN, DOWEL (10X16)
$2.92¢1 463
1
