HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

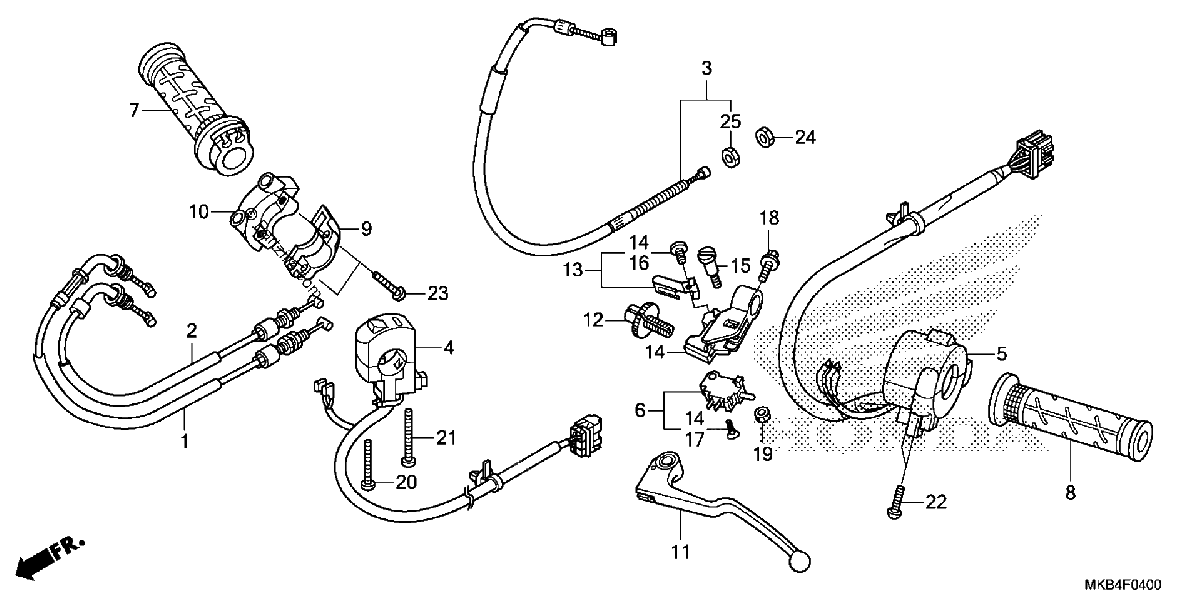

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-MGP-D60
CABLE A, THROTTLE
$30.58¢15 288
1
#2
17920-MGP-D60
CABLE B, THROTTLE
$30.58¢15 288
1
#3
22870-MGP-D60
CABLE, CLUTCH
$27.23¢13 613
1
#4
35130-MGP-D61
SWITCH ASSY., ENGINE STOP
$90.10¢45 050
1
#5
35200-MGP-A91
SWITCH ASSY., TURN SIGNAL
$180.88¢90 438
1
#6
35335-MCJ-751
SWITCH SET, CLUTCH
$16.56¢8 281
1
#7
53140-MCF-305
GRIP ASSY., THROTTLE (COO)
$40.16¢20 081
1
#8
53166-MGF-305
GRIP, L. HANDLE (COO)
$24.84¢12 419
1
#8
53166-MY9-305
GRIP, L. HANDLE (COO)
$21.13¢10 563
1
#9
53167-MV4-000
HOUSING, THROTTLE (UPPER)
$43.51¢21 756
1
#10
53168-MV4-000
HOUSING, THROTTLE (LOWER)
$47.59¢23 794
1
#11
53182-MCJ-305
LEVER, L. HANDLE (COO)
$27.83¢13 913
1
#12
53183-MCJ-750
BOLT, CABLE ADJUSTING
$9.94¢4 969
1
#13
53190-MCJ-751
SPRING SET, CLUTCH LEVER
$5.35¢2 675
1
#14
53195-MCJ-751
BRACKET SET, CLUTCH LEVER
$29.84¢14 919
1
#15
90122-MCJ-750
BOLT, LEVER PIVOT
$5.83¢2 913
1
#16
90123-MCJ-751
SCREW, PAN (4X10)
$1.19¢594
1
#17
90124-MCJ-752
SCREW, FLAT (3X16)
$0.80¢400
1
#18
90126-MCJ-750
BOLT, FLANGE (6X20)
$2.41¢1 206
1
#19
90301-MCJ-750
NUT, U (6MM)
$2.91¢1 456
1
#20
93500-04032-0G
SCREW, PAN (4X32)
$0.61¢306
1
#21
93500-04045-0G
SCREW, PAN (4X45)
$1.11¢556
1
#22
93500-05020-0G
SCREW, PAN (5X20)
$1.01¢506
1
#23
93500-05022-0G
SCREW, PAN (5X22)
$1.19¢594
1
#24
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#25
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#25
94002-08080-0S
NUT, HEX. (8MM)
$1.60¢800
1
