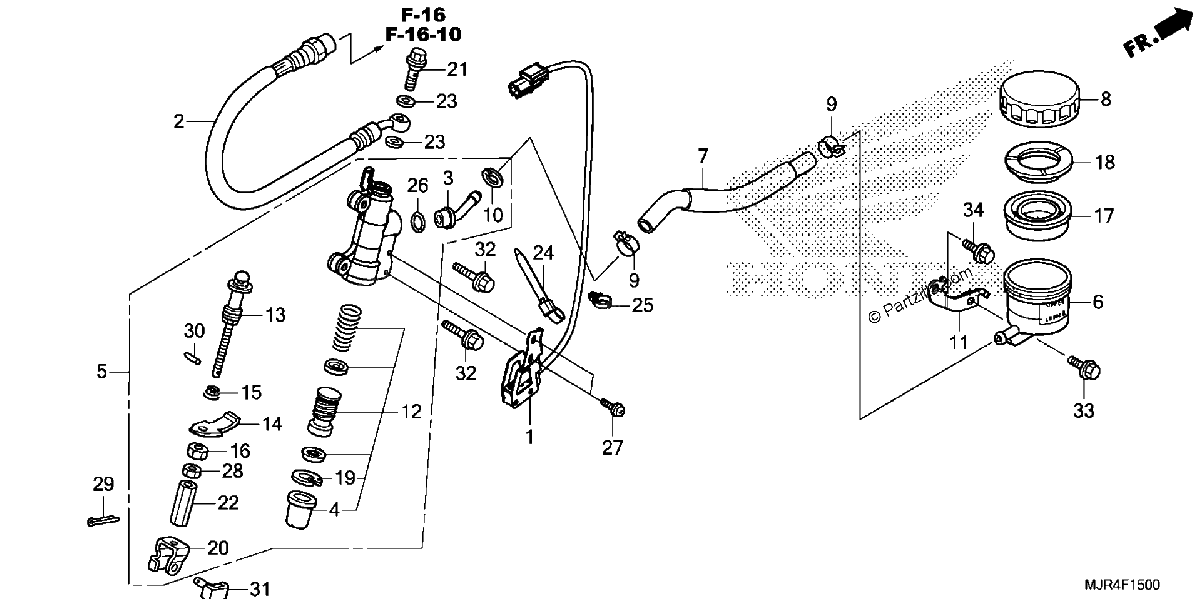

REAR BRAKE MASTER CYLINDER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH SET, RR. STOP
$48.44¢24 219
#2
MAIN HOSE A, RR. BRAKE
$54.65¢27 325
#3
CONNECTOR
$14.33¢7 163
#4
BOOT
$11.74¢5 869
#5
MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN)
$264.30¢132 150
#6
CUP, MASTER CYLINDER OIL
$6.06¢3 031
#7
HOSE, RR. MASTER CYLINDER
$7.56¢3 781
#8
CAP, OIL CUP
$34.38¢17 188
#9
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
#10
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
#11
STAY, MASTER CYLINDER RESERVE TANK
$12.38¢6 188
#12
PISTON SET, MASTER CYLINDER (NISSIN)
$77.40¢38 700
#13
ROD, PUSH
$50.80¢25 400
#14
PLATE, SWITCH (NISSIN)
$5.65¢2 825
#15
SPRING, SWITCH
$1.38¢688
#16
NUT, SWITCH PLATE (NISSIN)
$5.31¢2 656
#17
DIAPHRAGM
$10.59¢5 294
#18
PLATE, DIAPHRAGM
$4.91¢2 456
#19
CIRCLIP
$2.50¢1 250
#20
JOINT, BRAKE ROD
$12.76¢6 381
#21
BOLT, OIL (10X22)
$8.89¢4 444
#22
NUT, SPECIAL (8MM)
$0.47¢238
#23
WASHER, OIL BOLT
$4.85¢2 425
#24
BAND, WIRE (95MM)
$3.77¢1 888
#25
CLIP, HARNESS
$2.75¢1 375
#26
O-RING (14.8X2.4)
$3.30¢1 650
#27
SCREW-WASHER (4X12)
$1.72¢862
#27
SCREW-WASHER (4X12)
$1.72¢862
#28
NUT, HEX. (8MM)
$1.60¢800
#28
NUT, HEX. (8MM)
$1.60¢800
#29
PIN, SPLIT (2.0X15)
$1.34¢669
#30
PIN, SPRING (2X10)
$1.13¢563
#31
PIN D, JOINT
$5.15¢2 575
#32
BOLT, FLANGE (6X22)
$2.21¢1 106
#33
BOLT, FLANGE (6X14)
$2.31¢1 156
#34
BOLT, FLANGE (6X14)
$1.54¢769
