HANDLE SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

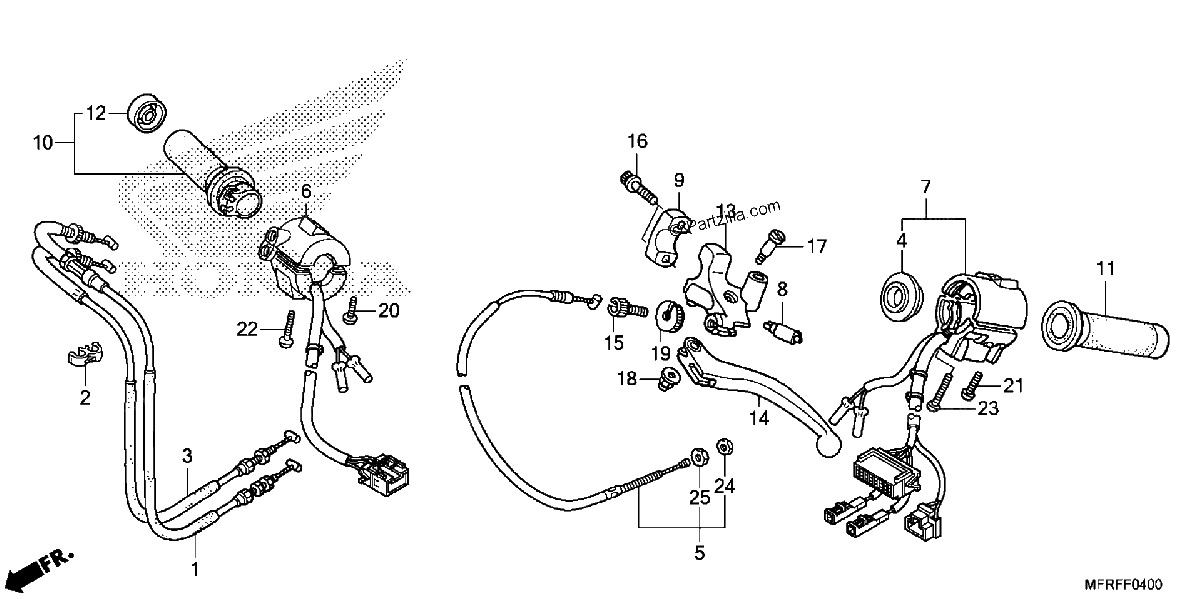

Diagrama de HANDLE SWITCH CABLE

Repuestos

#1
17910-MFY-A00
CABLE A, THROTTLE
$39.44¢19 722
1
#2
17915-SA7-981
CLIP, THROTTLE WIRE
$3.36¢1 679
1
#3
17920-MFY-A00
CABLE B, THROTTLE
$39.44¢19 722
1
#4
17962-MR1-000
ADAPTER
$20.61¢10 304
1
#5
22870-MFY-A00
CABLE, CLUTCH
$38.89¢19 447
1
#6
35130-MFY-A01
SWITCH ASSY., STARTER STOP
$160.11¢80 057
1
#7
35200-MFY-A01
SWITCH ASSY., TURN SIGNAL
$179.01¢89 505
1
#8
35330-413-003
SWITCH, FR. LEVER (TOYO DENSO)
$23.40¢11 701
1
#9
45517-MR1-671
HOLDER, MASTER CYLINDER (NISSIN)
$29.09¢14 548
1
#10
53145-MFR-305
GRIP, Right. (COO)
$46.84¢23 420
1
#11
53166-MFR-305
GRIP, L HANDLE (COO)
$46.39¢23 196
1
#12
53167-MM8-000
CAP, GRIP END
$10.07¢5 037
1
#13
53172-MR1-000
BRACKET, HANDLE LEVER
$38.12¢19 061
1
#14
53178-MFR-305
LEVER, L. HANDLEBAR (COO)
$20.84¢10 419
1
#15
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#16
90101-MCL-000
BOLT, SOCKET (6X22)
$1.71¢857
1
#17
90113-438-000
BOLT, L HANDLEBAR LEVER PIVOT
$8.46¢4 232
1
#18
90201-415-000
NUT, CAP (6MM)
$2.54¢1 271
1
#19
90321-MA6-750
NUT, FIXING
$11.15¢5 577
1
#20
93500-05020-0A
SCREW, PAN (5X20)
$0.93¢466
1
#21
93500-05022-0A
SCREW, PAN (5X22)
$0.79¢397
1
#22
93500-05025-0A
SCREW, PAN (5X25)
$1.12¢558
1
#23
93500-05032-0A
SCREW, PAN (5X32)
$1.30¢650
1
#24
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#25
94031-08000
NUT, HEX. (8MM)
$1.26¢633
1
