FRAME 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

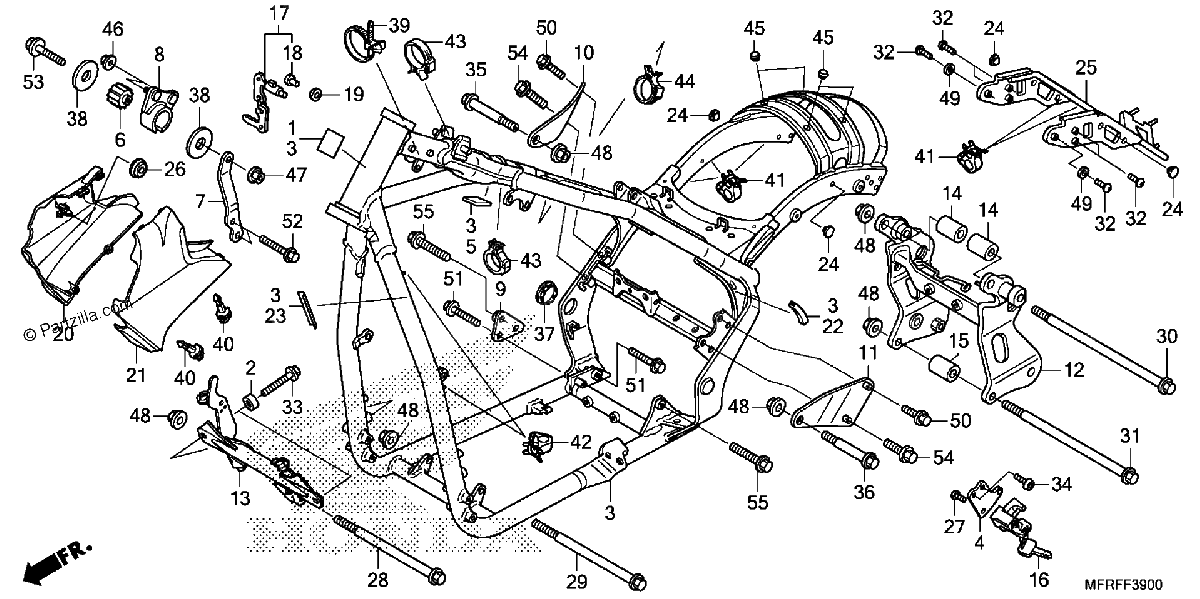

Diagrama de FRAME 1

Repuestos

#1
17528-KCZ-930
TAPE B, TANK GUARD
$4.80¢2 400
1
#2
18309-GN3-670
COLLAR B, MUFFLER STAY
$3.11¢1 556
1
#3
50010-MFY-A40ZA
FRAME SET *NH1* (BLACK)
$4760.02¢2 380 013
1
#4
50165-MFY-A00
BRACKET, HELMET HOLDER
$8.85¢4 425
1
#5
50190-MFY-A00
MAT, MAIN PIPE
$2.31¢1 156
1
#6
50201-MFY-A00
RUBBER, ENGINE HEAD MOUNTING
$11.41¢5 706
1
#7
50202-MFY-A00
PLATE, ENGINE HANGER (LOWER) (E)
$40.67¢20 338
1
#8
50203-MFY-A00
PLATE, ENGINE HANGER CENTER (E)
$75.13¢37 563
1
#9
50204-MFR-670
PLATE, RR. ENGINE MOUNT (LOWER) (RH)
$19.14¢9 569
1
#10
50207-MFR-670
PLATE, R. RR. ENGINE HANGER (UPPER)
$55.96¢27 981
1
#11
50208-MFR-670
PLATE, L. RR. ENGINE HANGER (UPPER)
$55.96¢27 981
1
#12
50210-MFR-670
PLATE, PIVOT MOUNT
$404.07¢202 038
1
#13
50220-MFY-A00
PIPE, FR. CROSS
$281.50¢140 750
1
#14
50221-MFR-670
COLLAR, ENGINE HANGER (24X41.5)
$11.27¢5 637
1
#15
50223-MFR-670
COLLAR, ENGINE HANGER (24X32)
$9.13¢4 563
1
#16
50710-GCN-003
HOLDER ASSY., HELMET (HONDALOCK)
$33.52¢16 763
1
#16
50710-GCN-305
HOLDER ASSY., HELMET (COO)
$33.52¢16 763
1
#17
53600-404-611
LOCK, HANDLEBAR
$107.70¢53 850
1
#18
53603-051-000
RIVET (4.1MM)
$3.28¢1 638
1
#19
53604-098-940
WASHER (4.5MM)
$3.05¢1 525
1
#20
63500-MFY-A40ZA
COVER, R. FR. SIDE *NH1* (BLACK)
$41.68¢20 838
1
#21
63600-MFY-A40ZA
COVER, L. FR. SIDE *NH1* (BLACK)
$41.68¢20 838
1
#22
64122-MBB-300
RUBBER, PROTECTOR
$5.67¢2 838
1
#23
76259-767-L00
SEAL, PROTECTOR
$3.51¢1 756
1
#24
77212-965-000
RUBBER, SEAT SIDE
$5.99¢2 994
1
#25
80132-MFY-A00
STAY, RR. FENDER
$325.55¢162 775
1
#26
83551-376-000
GROMMET, SIDE COVER
$3.65¢1 825
1
#27
90105-KEB-620
BOLT, ONE-WAY (6X12)
$2.91¢1 456
1
#28
90110-MFR-670
BOLT, FLANGE (10X148)
$10.02¢5 012
1
#29
90111-MFR-670
BOLT, FLANGE (10X151)
$10.48¢5 238
1
#30
90112-MFR-670
BOLT, FLANGE (10X235.5)
$12.40¢6 200
1
#31
90117-MFR-670
BOLT, FLANGE (10X212)
$12.40¢6 200
1
#32
90118-MR1-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#33
90125-MFY-A00
BOLT, FLANGE (8X40) (G)
$4.30¢2 150
1
#34
90130-MEW-D20
BOLT, TORX (6X13)
$3.95¢1 975
1
#35
90154-MFR-670
BOLT, FLANGE (10X52)
$16.15¢8 075
1
#36
90155-MFR-670
BOLT, FLANGE (10X66)
$17.54¢8 769
1
#37
90312-MB0-700
CAP, Right LOCK NUT
$21.14¢10 569
1
#38
90455-896-700
WASHER, TANK MOUNTING
$3.80¢1 900
1
#39
95701-08055-07
BOLT, FLANGE (8X55)
$2.38¢1 188
1
#39
90672-SA0-003
STRAP, CABLE (118MM) (BLACK)
$7.57¢3 787
1
#40
90683-GAZ-003
CLIP, TRIM
$4.61¢2 306
1
#41
90690-GHB-631
CLIP, CABLE (8MM)
$2.81¢1 406
1
#42
90690-GHB-641
CLIP, CABLE (10MM)
$2.81¢1 406
1
#43
90690-GHB-651
CLIP, CABLE (15MM)
$2.81¢1 406
1
#44
90690-GHB-701
CLIP, CABLE (17MM)
$3.65¢1 825
1
#45
90852-446-630
PLUG, HOLE
$3.30¢1 650
1
#46
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#47
94050-08070
NUT, FLANGE (8MM)
$1.93¢963
1
#48
94050-10070
NUT, FLANGE (10MM)
$4.06¢2 031
1
#48
90303-428-900
NUT, FLANGE (10MM)
$4.06¢2 031
1
#49
94103-06800
WASHER, PLAIN (6MM)
$1.00¢500
1
#50
95701-08025-07
BOLT, FLANGE (8X25)
$1.19¢594
1
#51
95701-08028-07
BOLT, FLANGE (8X28)
$1.60¢800
1
#52
95701-08030-07
BOLT, FLANGE (8X30)
$2.92¢1 463
1
#54
95701-10025-07
BOLT, FLANGE (10X25)
$1.82¢913
1
#55
95701-10032-07
BOLT, FLANGE (10X32)
$2.27¢1 138
1
