KICK STARTER SPINDLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

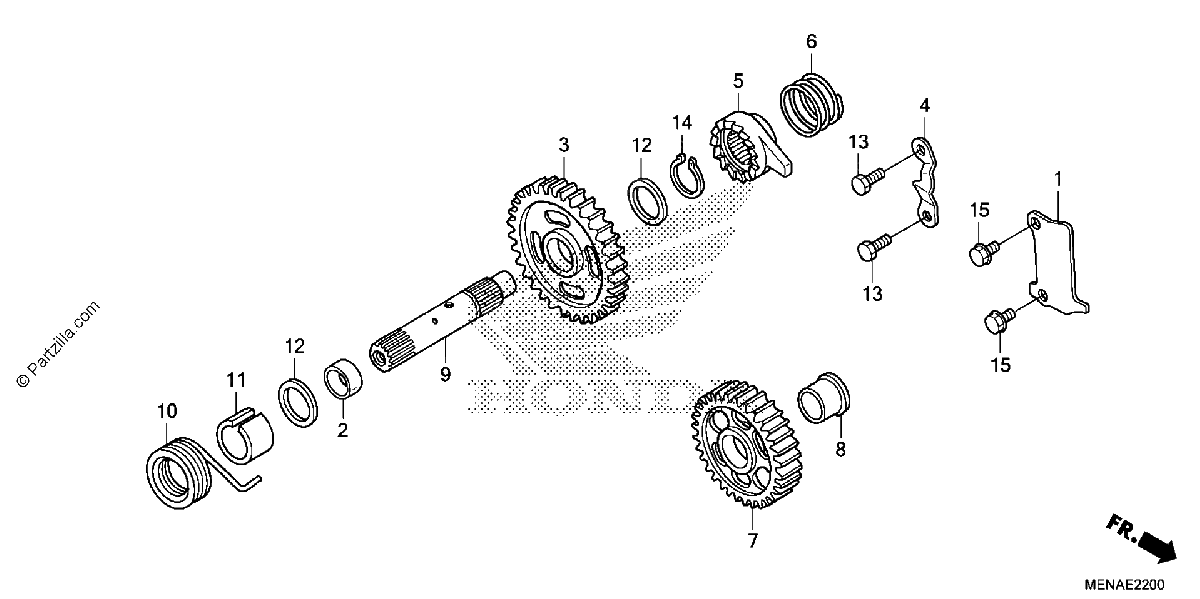

Diagrama de KICK STARTER SPINDLE

Repuestos

#1
15201-MEN-A70
PLATE, OIL GUIDE
$7.97¢3 985
1
#2
23472-KY4-900
COLLAR (20X22X10)
$11.52¢5 761
1
#3
28211-MEN-A70
PINION, KICK STARTER (34T)
$127.27¢63 635
1
#4
28215-MEN-A30
PLATE, KICK STOPPER
$9.14¢4 571
1
#5
28221-MEB-770
RATCHET, KICK STARTER
$49.06¢24 529
1
#6
28223-KA4-740
SPRING, KICK STARTER RATCHET
$4.38¢2 191
1
#7
28231-MEN-A70
GEAR, KICK STARTER IDLE (29T)
$115.77¢57 885
1
#8
28232-MEN-A70
COLLAR, KICK STARTER IDLE GEAR
$16.23¢8 113
1
#9
28251-MEN-A70
SPINDLE, KICK STARTER
$126.53¢63 267
1
#10
28261-MEN-A30
SPRING, KICK RETURN
$13.01¢6 503
1
#11
28282-MEB-670
COLLAR, KICK SPRING
$6.95¢3 473
1
#12
90554-728-940
WASHER, THRUST (20MM)
$6.76¢3 381
1
#13
93301-06016-0A
BOLT, HEX. (6X16)
$1.74¢868
1
#14
94510-19000
CIRCLIP, OUTER (19MM)
$1.45¢724
1
#15
96300-06012-00
BOLT, FLANGE (6X12)
$1.12¢558
1
