STEP 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

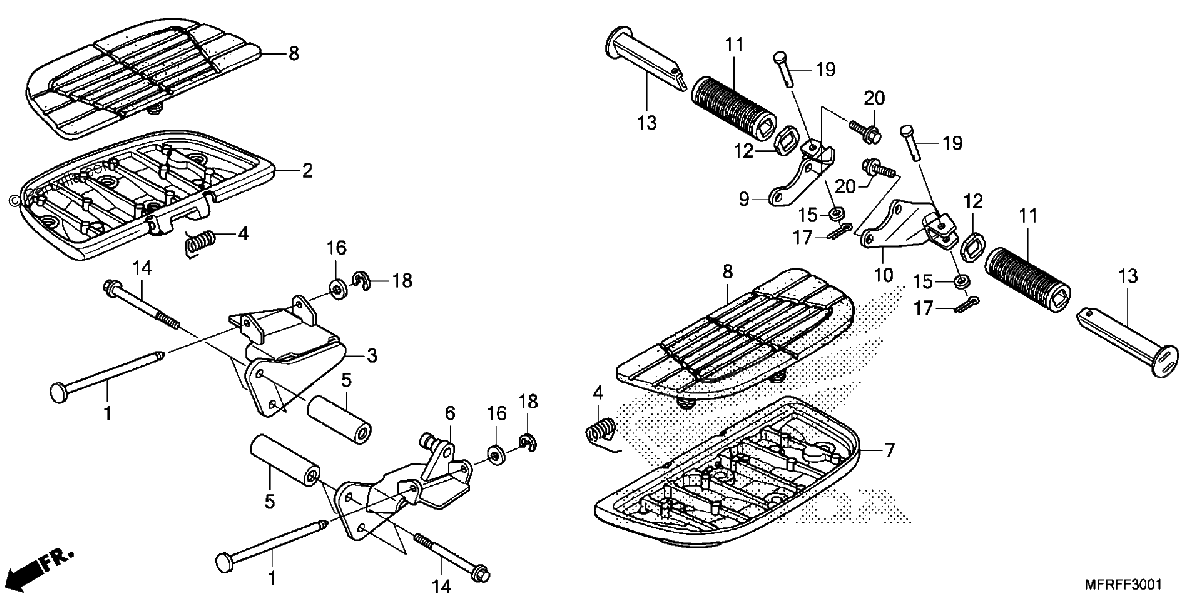

Diagrama de STEP 2

Repuestos

#1
50603-MBH-000
PIN, STEP JOINT
$9.35¢4 675
1
#2
50612-MFY-305
BOARD, R. STEP (COO)
$146.79¢73 394
1
#3
50615-MFY-A20
BRACKET, R. STEP
$124.06¢62 031
1
#4
50617-MEA-670
SPRING, STEP RETURN
$13.08¢6 538
1
#5
50619-MFY-A20
COLLAR, STEP BRACKET (T)
$12.15¢6 075
1
#6
50625-MFY-A20
BRACKET, L. STEP
$144.35¢72 175
1
#7
50642-MFY-305
BOARD, L. STEP (COO)
$146.79¢73 394
1
#8
50661-MFY-305
RUBBER, MAIN STEP (COO)
$78.20¢39 100
1
#9
50680-MFY-A00
BRACKET, R. PILLION STEP
$98.66¢49 331
1
#10
50685-MFY-A00
BRACKET, L. PILLION STEP
$98.66¢49 331
1
#11
50710-MFR-305
RUBBER, PILLION STEP (COO)
$33.15¢16 575
1
#12
50712-MFE-670
WASHER, PILLION STEP
$3.98¢1 988
1
#13
50715-413-000
BAR, PILLION STEP
$20.66¢10 331
1
#13
50715-413-305
BAR, PILLION STEP (COO)
$20.66¢10 331
1
#14
90127-126-900
BOLT, SPECIAL FLANGE (8X90)
$8.01¢4 006
1
#15
94101-06000
WASHER, PLAIN (6MM)
$0.84¢419
1
#15
94101-06080
WASHER, PLAIN (6MM)
$0.84¢419
1
#15
94101-06800
WASHER, PLAIN (6MM)
$0.84¢419
1
#16
94102-08000
WASHER, PLAIN (8MM)
$1.15¢575
1
#17
94201-16150
PIN, SPLIT (1.6X15)
$1.34¢669
1
#17
94201-16250
PIN, COTTER (1.6X25)
$1.34¢669
1
#18
94540-07029
E-RING (7MM)
$4.74¢2 369
1
#19
95015-81000
PIN A, PILLION STEP
$2.85¢1 425
1
#20
95701-08020-07
BOLT, FLANGE (8X20)
$2.40¢1 200
1
