REAR COMBINATION LIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

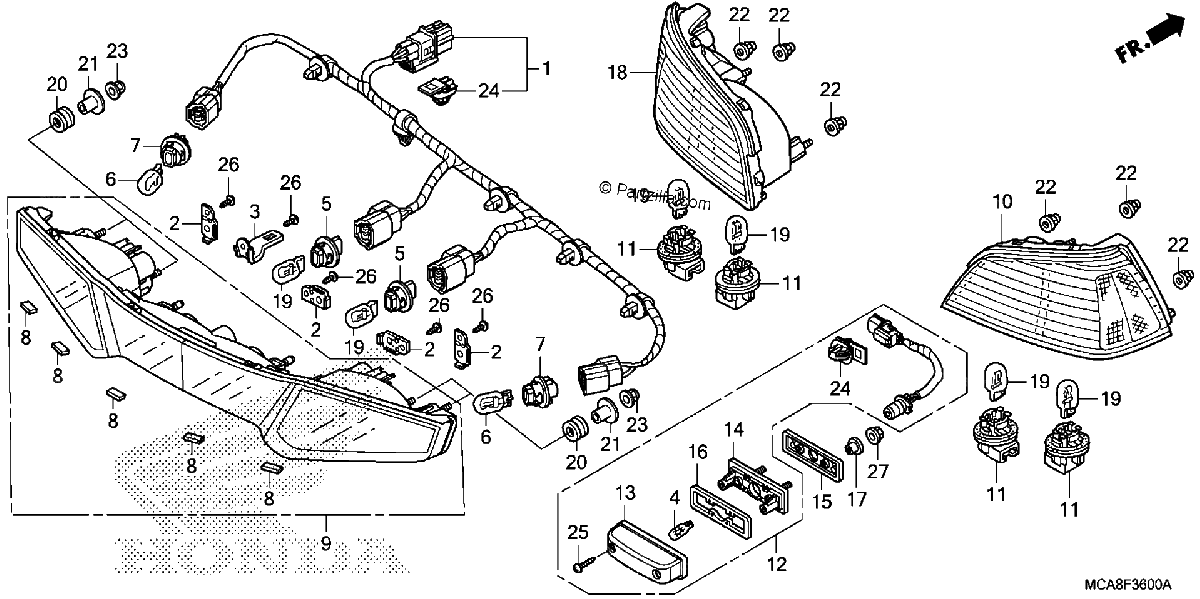

Diagrama de REAR COMBINATION LIGHT

Repuestos

#1
32126-MCA-S40
SUB-HARNESS, RR. COMBINATION LIGHT
$98.07¢49 037
1
#2
32161-MCA-S41
STAY, 1
$2.73¢1 363
1
#3
32162-MCA-S41
STAY, 2
$7.99¢3 994
1
#4
33301-SA0-741
BULB (12V 5W) (STANLEY)
$4.61¢2 306
1
#5
33302-S5A-A01
SOCKET (T20 W)
$57.73¢28 863
1
#6
33303-S2R-003
BULB, WEDGE (12V 21W) (AMBER) (STANLEY)
$11.16¢5 581
1
#7
33303-SAA-003
SOCKET (T20 S) (AMBER)
$21.92¢10 962
1
#8
33501-MCA-S41
RUBBER, SPACER
$3.46¢1 731
1
#9
33510-MCA-315
COMBINATION UNIT, RR. (COO)
$826.00¢413 000
1
#10
33710-MCA-305
HOUSING, R. TRUNK TAIL (COO)
$255.13¢127 563
1
#11
33720-GZ9-003
SOCKET
$15.16¢7 581
1
#12
33720-MCA-S41
LIGHT ASSY., LICENSE (12V 5W)
$136.38¢68 188
1
#12
33720-MJG-305
LIGHT ASSY., LICENSE (12V 5W) (COO)
$136.38¢68 188
1
#13
33721-GET-671
COVER, LICENSE
$24.61¢12 306
1
#14
33723-MER-D01
BASE, LICENSE
$29.18¢14 588
1
#15
33728-MFL-000
RUBBER, LICENSE LIGHT
$3.81¢1 906
1
#16
33729-MCZ-003
GASKET, LENS
$12.19¢6 094
1
#17
33731-MJ0-940
COLLAR, REGULATOR MOUNTING
$3.08¢1 538
1
#18
33760-MCA-305
HOUSING, L. TRUNK TAIL (COO)
$255.13¢127 563
1
#19
34906-MBB-611
BULB, WEDGE BASE (12V 21/5W ECE) (STANLEY)
$4.86¢2 431
1
#20
61103-357-000
RUBBER, FR. FENDER MOUNTING
$3.98¢1 988
1
#21
61104-357-000
COLLAR, FR. FENDER
$5.96¢2 981
1
#21
61104-428-000
COLLAR, FR. FENDER
$5.96¢2 981
1
#21
61104-MA6-720
COLLAR
$5.96¢2 981
1
#22
90167-SA0-980
NUT, FLANGE CAP (5MM)
$6.79¢3 394
1
#23
90207-RAA-A00
NUT, HEX. CAP (6MM)
$2.97¢1 487
1
#24
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
$5.02¢2 512
1
#25
93901-24480
SCREW, TAPPING (4X16)
$1.06¢531
1
#26
93913-25320
SCREW, TAPPING (5X14) (PO)
$1.00¢500
1
#27
94050-05080
NUT, FLANGE (5MM)
$0.45¢225
1
