OIL PAN OIL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

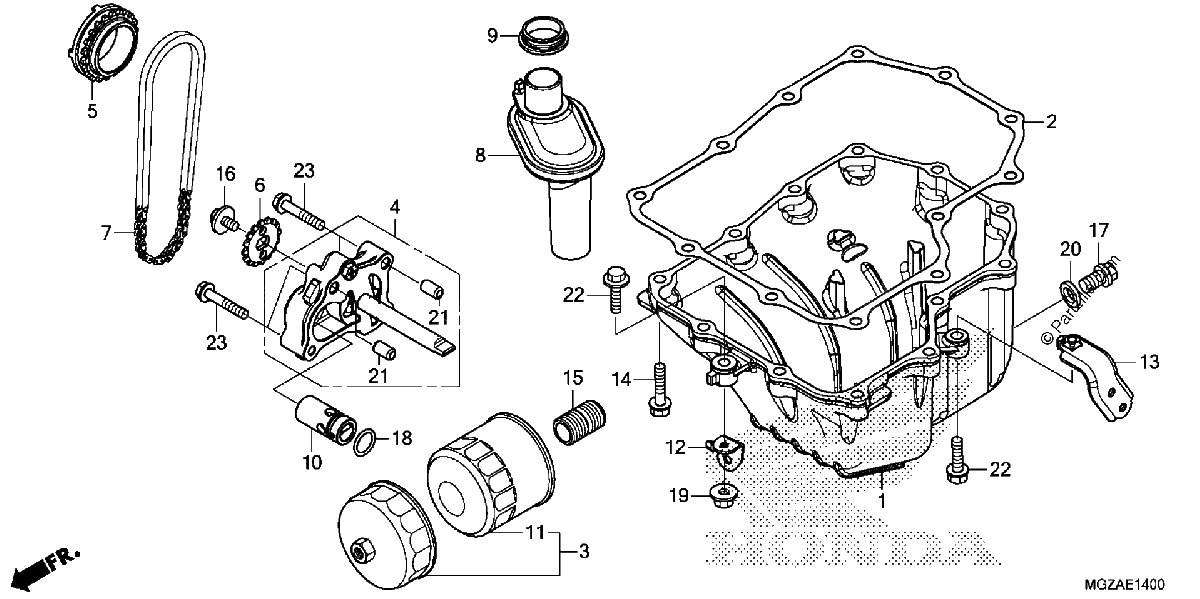

Diagrama de OIL PAN OIL PUMP

Repuestos

#1
11210-MGZ-J00
PAN, OIL
$90.84¢45 419
1
#001
11210-MGZ-J00
PAN, OIL
$90.84¢45 419
1
#002
11396-MGZ-J00
GASKET, OIL PAN
$8.34¢4 169
1
#2
11396-MGZ-J00
GASKET, OIL PAN
$8.34¢4 169
1
#002
11396-MGZ-J01
GASKET, OIL PAN
$8.34¢4 169
1
#003
15010-MCE-H51
FILTER SET, OIL
$21.21¢10 603
1
#3
15010-MCE-H51
FILTER SET, OIL
$21.21¢10 603
1
#003
15010-MKR-305
FILTER SET, OIL
$21.21¢10 603
1
#004
15100-MGZ-J00
PUMP Assembly., OIL
$107.72¢53 860
1
#4
15100-MGZ-J00
PUMP Assembly., OIL
$107.72¢53 860
1
#005
15131-MGZ-J01
SPROCKET, OIL PUMP DRIVE (22T)
$44.08¢22 040
1
#5
15131-MGZ-J01
SPROCKET, OIL PUMP DRIVE (22T)
$44.08¢22 040
1
#6
15134-MGZ-J00
SPROCKET, OIL PUMP DRIVEN (16T)
$16.33¢8 165
1
#006
15134-MGZ-J00
SPROCKET, OIL PUMP DRIVEN (16T)
$16.33¢8 165
1
#7
15140-MAT-003
CHAIN, OIL PUMP (DID 25H-56LE)
$23.91¢11 954
1
#007
15140-MAT-003
CHAIN, OIL PUMP (DID 25H-56LE)
$23.91¢11 954
1
#008
15150-MGZ-J00
STRAINER, OIL
$15.59¢7 797
1
#8
15150-MGZ-J00
STRAINER, OIL
$15.59¢7 797
1
#9
15154-MAT-000
GASKET, OIL STRAINER
$6.87¢3 433
1
#009
15154-MAT-000
GASKET, OIL STRAINER
$6.87¢3 433
1
#010
15220-MGZ-J00
VALVE ASSY., RELIEF
$46.59¢23 293
1
#10
15220-MGZ-J00
VALVE ASSY., RELIEF
$46.59¢23 293
1
#011
15410-MFJ-D01
FILTER, OIL (TOYO ROKI)
$16.54¢8 269
1
#11
15410-MFJ-D01
FILTER, OIL (TOYO ROKI)
$16.54¢8 269
1
#011
15410-MFJ-D02
FILTER, OIL (WAKO FILTER)
$16.54¢8 269
1
#12
64325-MGZ-J40
STAY, Front COWL (LOWER)
$1.45¢724
1
#012
64325-MGZ-J40
STAY, Front COWL (LOWER)
$1.45¢724
1
#013
64326-MGZ-J40
STAY, Rear COWL (LOWER)
$5.93¢2 967
1
#13
64326-MGZ-J40
STAY, Rear COWL (LOWER)
$5.93¢2 967
1
#14
90010-MGZ-J00
BOLT, FLANGE (6X28)
$0.56¢282
1
#014
90010-MGZ-J00
BOLT, FLANGE (6X28)
$0.56¢282
1
#15
90019-MGZ-J00
BOSS, OIL FILTER
$2.68¢1 340
1
#015
90019-MGZ-J00
BOSS, OIL FILTER
$2.68¢1 340
1
#16
90021-MGZ-J00
BOLT-WASHER (6X12)
$4.86¢2 432
1
#016
90021-MGZ-J00
BOLT-WASHER (6X12)
$4.86¢2 432
1
#17
90131-883-000
BOLT, DRAIN PLUG (12X15)
$4.50¢2 248
1
#017
90131-883-000
BOLT, DRAIN PLUG (12X15)
$4.50¢2 248
1
#017
90131-896-650
BOLT, DRAIN PLUG (12X15)
$4.50¢2 248
1
#17
90131-896-650
BOLT, DRAIN PLUG (12X15)
$4.50¢2 248
1
#18
91313-MG7-004
O-RING (14.8X2.2)
$4.09¢2 047
1
#18
91313-MB0-003
O-RING (14.7X2.2) (ARAI)
$4.09¢2 047
1
#018
91313-MG7-004
O-RING (14.8X2.2)
$4.09¢2 047
1
#018
91313-MB0-003
O-RING (14.7X2.2) (ARAI)
$4.09¢2 047
1
#019
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#19
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#20
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.45¢724
1
#020
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.45¢724
1
#21
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#021
94301-08140
PIN, DOWEL (8X14)
$2.66¢1 328
1
#022
95701-06022-00
BOLT, FLANGE (6X22)
$2.13¢1 064
1
#22
95701-06022-00
BOLT, FLANGE (6X22)
$2.13¢1 064
1
#23
95701-06035-00
BOLT, FLANGE (6X35)
$2.22¢1 110
1
#023
95701-06035-00
BOLT, FLANGE (6X35)
$2.22¢1 110
1
