REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

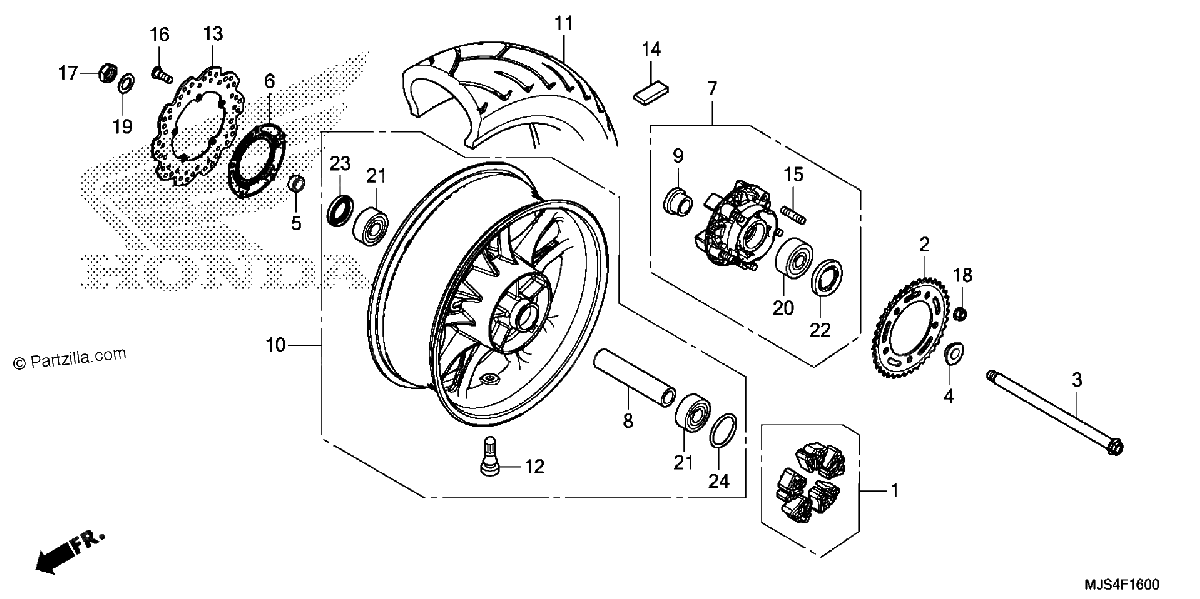

Diagrama de REAR WHEEL

Repuestos

#1
06410-MGS-D30
DAMPER SET, WHEEL
$67.19¢33 594
1
#2
41201-MGS-D70
SPROCKET, FINAL DRIVEN (39T)
$100.04¢50 019
1
#3
42301-MGS-D30
AXLE, RR. WHEEL
$61.22¢30 612
1
#4
42311-MGS-D10
COLLAR, L. RR. WHEEL SIDE
$27.31¢13 656
1
#5
42312-MGS-D10
COLLAR, RR. BRAKE SIDE
$18.14¢9 069
1
#6
42515-MGS-D80
RING, Rear PULSER
$81.11¢40 556
1
#7
42615-MGS-D30
FLANGE SUB-Assembly., Rear DRIVEN
$334.59¢167 294
1
#8
42620-MJS-J70
COLLAR, RR. AXLE DISTANCE
$39.26¢19 631
1
#9
42625-MGS-D30
COLLAR B, RR. WHEEL DISTANCE
$22.61¢11 306
1
#10
42650-MJS-305
WHEEL SUB-ASSY., RR. (COO)
$1404.04¢702 019
1
#11
42711-MJS-J71
TIRE, RR. (200/50ZR17 M/C 75W) (DUNLOP)
$383.63¢191 813
1
#12
42753-ML7-004
VALVE, RIM (DUNLOP)
$14.79¢7 394
1
#13
43251-MJS-J71
DISK, RR. BRAKE (SUNSTAR)
$397.01¢198 506
1
#14
44723-MGC-003
WEIGHT, BALANCE (20G)
$6.76¢3 381
1
#14
44721-MGC-003
WEIGHT, BALANCE (10G)
$5.67¢2 838
1
#14
44722-MGC-003
WEIGHT, BALANCE (15G)
$6.76¢3 381
1
#15
90102-MAS-000
BOLT, STUD (12X25)
$4.86¢2 431
1
#16
90105-MGS-D30
BOLT, DISK (8X25)
$3.65¢1 825
1
#17
90301-MJF-A01
NUT, U (18MM)
$12.25¢6 125
1
#18
90306-KF0-003
NUT, FLANGE (12MM) (FUSE RASHI)
$4.68¢2 338
1
#19
90401-MAS-000
WASHER (20X31.5X2)
$3.89¢1 944
1
#20
91051-MGS-D31
BEARING, ANGULAR BALL (22X50X15)
$44.23¢22 113
1
#21
91053-MGS-D31
BEARING, RADIAL BALL (6204UU)
$15.11¢7 556
1
#22
91251-MGS-D31
DUST SEAL (30X50X7)
$14.92¢7 462
1
#23
91253-MAE-003
DUST SEAL (30X47X7.5)
$18.51¢9 256
1
#24
91351-MGS-D30
O-RING (55X2)
$3.65¢1 825
1
