CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

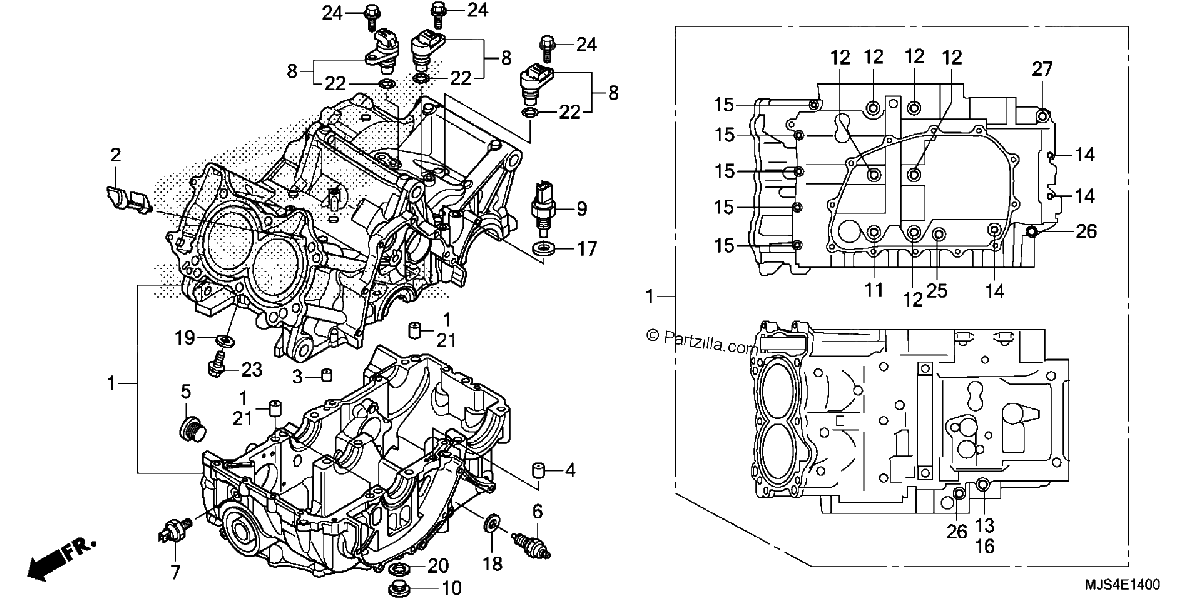

Diagrama de CRANKCASE

Repuestos

#1
11000-MJS-A20
CRANKCASE SET
$3272.41¢1 636 206
1
#2
11103-MGS-D31
PLATE, PARTITION
$7.36¢3 681
1
#3
11207-MFL-000
ORIFICE (1.1MM)
$4.84¢2 419
1
#4
11207-MGS-D30
ORIFICE (1.5MM)
$5.32¢2 662
1
#5
12208-PR3-000
BOLT, SEALING (20MM)
$11.74¢5 869
1
#6
35600-MFJ-D01
SWITCH Assembly., NEUTRAL
$24.56¢12 281
1
#7
37241-RNA-A01
SWITCH Assembly., OIL PRESSURE (DENSO)
$112.03¢56 013
1
#8
37700-MGS-D31
SENSOR Assembly., SPEED
$215.58¢107 788
1
#9
37750-KPH-701
SENSOR Assembly., THERMOSTAT OIL (PANASONIC)
$58.90¢29 450
1
#10
90002-RGA-000
BOLT, SEALING (12X8)
$8.20¢4 100
1
#11
90015-MGS-D31
BOLT, FLANGE (9X150)
$17.01¢8 506
1
#12
90016-MFA-D01
BOLT, FLANGE (9X125)
$6.19¢3 094
1
#13
90021-MGS-D30
BOLT, FLANGE (8X100)
$4.30¢2 150
1
#14
90021-MJL-D30
BOLT, SPECIAL (6X45)
$4.20¢2 100
1
#15
90022-MJL-D30
BOLT, SPECIAL (6X32)
$3.55¢1 775
1
#16
90442-028-000
WASHER, SEALING (8MM)
$2.27¢1 138
1
#17
90443-MB0-000
WASHER, SEALING (10.2MM)
$3.65¢1 825
1
#18
90443-MJ6-000
WASHER, NEUTRAL
$2.48¢1 238
1
#19
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#20
90545-KF0-000
WASHER (12MM)
$3.77¢1 888
1
#21
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#22
91303-KF0-003
O-RING (14.8X2.4) (ARAI)
$2.27¢1 138
1
#23
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#24
95701-06018-00
BOLT, FLANGE (6X18)
$2.09¢1 044
1
#25
95701-08045-00
BOLT, FLANGE (8X45)
$1.89¢944
1
#26
95701-08070-00
BOLT, FLANGE (8X70)
$3.44¢1 719
1
#27
95701-10070-00
BOLT, FLANGE (10X70)
$2.82¢1 412
1
