FRONT BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

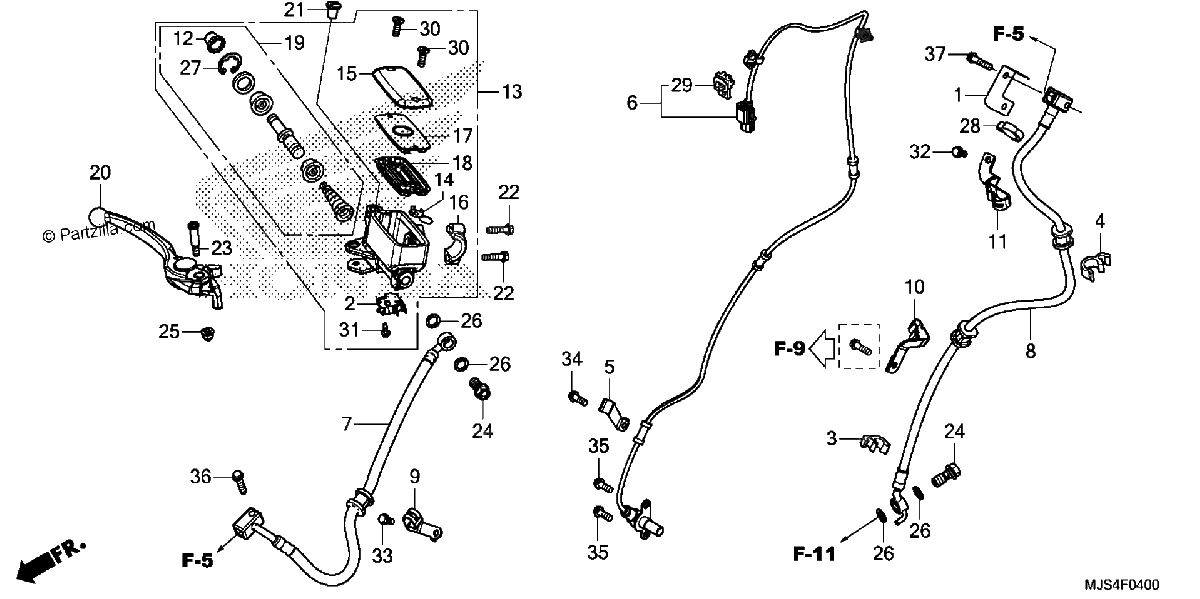

Diagrama de FRONT BRAKE MASTER CYLINDER

Repuestos

#1
32157-MJL-D70
STAY, HARNESS CLIP
$6.27¢3 137
1
#2
35340-MGS-D31
SWITCH Assembly., Front STOP (ALPS)
$21.49¢10 744
1
#3
38516-MGE-003
CLAMP, ABS WIRE (D8.5)
$4.00¢2 000
1
#4
38517-MGE-003
CLAMP, ABS WIRE (D12)
$3.50¢1 750
1
#5
38517-MGS-D80
CLAMP, SENSOR WIRE
$6.64¢3 319
1
#6
38520-MJS-J71
SENSOR, FR. WHEEL SPEED
$255.93¢127 963
1
#7
45125-MJS-J71
HOSE A, FR. BRAKE
$70.04¢35 019
1
#8
45128-MJS-J71
HOSE D, FR. BRAKE
$84.32¢42 162
1
#9
45155-MJS-J70
CLAMP A, FR. BRAKE
$8.69¢4 344
1
#10
45156-MJF-C10
CLAMP B, FR. BRAKE
$15.35¢7 675
1
#11
45156-MJS-J70
CLAMP B, FR. BRAKE HOSE
$14.49¢7 244
1
#12
45504-410-003
BOOT
$14.24¢7 119
1
#13
45510-MGS-305
MASTER CYLINDER SUB-Assembly., Front.(COO)
$360.26¢180 131
1
#13
45510-MGS-D31
MASTER CYLINDER SUB-Assembly., Front.(NISSIN)
$360.26¢180 131
1
#14
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#15
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
1
#16
45517-166-006
HOLDER, MASTER CYLINDER
$15.74¢7 869
1
#17
45518-MM5-006
PLATE, DIAPHRAGM
$12.36¢6 181
1
#18
45520-MM5-006
DIAPHRAGM
$17.68¢8 838
1
#19
45530-KVY-911
MASTER CYLINDER SET (NISSIN)
$33.21¢16 606
1
#20
53170-MEJ-305
LEVER ASSY., R. HANDLE (COO)
$52.47¢26 237
1
#21
53174-116-670
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
1
#21
53174-463-770
PLUG, HANDLE LEVER BRACKET
$3.20¢1 600
1
#22
90101-MBZ-G00
BOLT, FLANGE (6X22)
$1.85¢925
1
#23
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
1
#24
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#25
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#26
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#27
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#28
90690-MGS-D81
CLIP, CABLE (12MM)
$2.88¢1 438
1
#29
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
$5.02¢2 512
1
#30
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#30
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#31
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#31
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#32
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#33
96001-06014-07
BOLT, FLANGE (6X14)
$1.54¢769
1
#34
96001-06016-07
BOLT, FLANGE (6X16)
$1.35¢675
1
#35
96001-06016-07
BOLT, FLANGE (6X16)
$1.35¢675
1
#36
96001-06025-00
BOLT, FLANGE (6X25)
$2.70¢1 350
1
#37
96001-06025-07
BOLT, FLANGE (6X25)
$1.72¢862
1
