RIGHT CRANKCASE COVER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

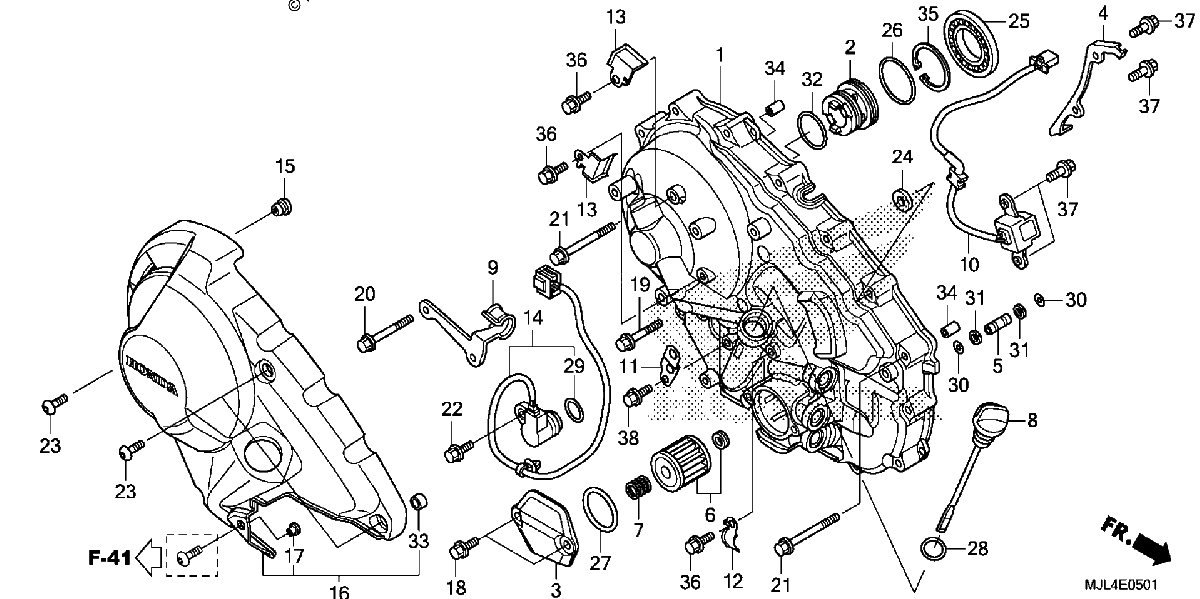

Diagrama de RIGHT CRANKCASE COVER 2

Repuestos

#001
11330-MGS-D40
COVER, Right CRANKCASE
$420.16¢210 081
1
#1
11330-MGS-D40
COVER, Right CRANKCASE
$420.16¢210 081
1
#2
11332-MGS-D20
COLLAR, OIL GUIDE
$34.04¢17 019
1
#002
11332-MGS-D20
COLLAR, OIL GUIDE
$34.04¢17 019
1
#3
11337-MGS-D40
COVER, OIL FILTER
$73.17¢36 588
1
#003
11337-MGS-D40
COVER, OIL FILTER
$73.17¢36 588
1
#4
11339-MGS-D20
CLAMP, SOLENOID CORD
$12.76¢6 381
1
#004
11339-MGS-D20
CLAMP, SOLENOID CORD
$12.76¢6 381
1
#005
15104-MGS-D20
PIPE, OIL PASSAGE
$12.59¢6 294
1
#5
15104-MGS-D20
PIPE, OIL PASSAGE
$12.59¢6 294
1
#6
15412-MGS-D21
ELEMENT, OIL FILTER
$9.90¢4 950
1
#006
15412-MGS-D21
ELEMENT, OIL FILTER
$9.90¢4 950
1
#007
15414-MEB-670
SPRING, OIL FILTER
$3.38¢1 688
1
#7
15414-MEB-670
SPRING, OIL FILTER
$3.38¢1 688
1
#008
15650-MGS-D20
DIPSTICK, OIL
$37.98¢18 988
1
#8
15650-MGS-D20
DIPSTICK, OIL
$37.98¢18 988
1
#9
22821-MJL-D50
STAY, FUEL HOSE
$10.58¢5 288
1
#009
22821-MJL-D50
STAY, FUEL HOSE
$10.58¢5 288
1
#10
30300-MGS-D21
GENERATOR Assembly., PULSE (TOYO)
$152.15¢76 075
1
#010
30300-MGS-D21
GENERATOR Assembly., PULSE (TOYO)
$152.15¢76 075
1
#11
32171-MGS-D20
STAY, HARNESS CLIP (B)
$3.49¢1 744
1
#011
32171-MGS-D20
STAY, HARNESS CLIP (B)
$3.49¢1 744
1
#12
32172-MGS-D70
STAY, HARNESS
$3.49¢1 744
1
#012
32172-MGS-D70
STAY, HARNESS
$3.49¢1 744
1
#13
32173-MGS-D70
STAY, HARNESS
$3.49¢1 744
1
#013
32173-MGS-D70
STAY, HARNESS
$3.49¢1 744
1
#014
38810-MGS-D51
SENSOR Assembly., ANGLE
$309.26¢154 631
1
#14
38810-MGS-D51
SENSOR Assembly., ANGLE
$309.26¢154 631
1
#15
53125-174-670
PLUG, HANDLE COVER (LOWER)
$2.39¢1 194
1
#015
53125-174-670
PLUG, HANDLE COVER (LOWER)
$2.39¢1 194
1
#016
64520-MGS-D50ZA
COVER, Right ENGINE SIDE NH303M (MAT AXIS GRAY METALLIC)
$103.85¢51 925
1
#16
64520-MGS-D50ZA
COVER, Right ENGINE SIDE NH303M (MAT AXIS GRAY METALLIC)
$103.85¢51 925
1
#017
80103-MCJ-750
COLLAR, FENDER SETTING
$3.33¢1 663
1
#17
80103-MCJ-750
COLLAR, FENDER SETTING
$3.33¢1 663
1
#018
90006-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$2.31¢1 156
1
#18
90006-GHB-630
BOLT, FLANGE (6X16) (NSHF)
$2.31¢1 156
1
#019
90006-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.63¢1 313
1
#19
90006-GHB-680
BOLT, FLANGE (6X28) (NSHF)
$2.63¢1 313
1
#20
90006-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$2.48¢1 238
1
#020
90006-GHB-710
BOLT, FLANGE (6X40) (NSHF)
$2.48¢1 238
1
#021
90006-GHB-730
BOLT, FLANGE (6X50) (NSHF)
$2.31¢1 156
1
#21
90006-GHB-730
BOLT, FLANGE (6X50) (NSHF)
$2.31¢1 156
1
#22
90011-MGE-D00
BOLT, KNOCK (6MM)
$3.71¢1 856
1
#022
90011-MGE-D00
BOLT, KNOCK (6MM)
$3.71¢1 856
1
#23
90085-MCZ-000
BOLT, SPECIAL (6X17)
$2.75¢1 375
1
#023
90085-MCZ-000
BOLT, SPECIAL (6X17)
$2.75¢1 375
1
#24
90488-425-000
WASHER, SEALING (6MM)
$2.92¢1 463
1
#024
90488-425-000
WASHER, SEALING (6MM)
$2.92¢1 463
1
#25
91029-MGS-D21
BEARING, RADIAL BALL (40X68X7.5)
$27.24¢13 619
1
#025
91029-MGS-D21
BEARING, RADIAL BALL (40X68X7.5)
$27.24¢13 619
1
#026
91302-MGS-D20
O-RING (35X2.2)
$2.97¢1 487
1
#26
91302-MGS-D20
O-RING (35X2.2)
$2.97¢1 487
1
#27
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$6.50¢3 250
1
#027
91302-PA9-003
O-RING (39.8X2.2) (ARAI)
$6.50¢3 250
1
#028
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#28
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#029
91310-MGE-D01
O-RING (16.5X2.5)
$6.19¢3 094
1
#29
91310-MGE-D01
O-RING (16.5X2.5)
$6.19¢3 094
1
#30
91311-RFH-003
O-RING (7.7X1.9)
$3.36¢1 681
1
#030
91311-RFH-003
O-RING (7.7X1.9)
$3.36¢1 681
1
#31
91315-MGS-D20
RING, BACK-UP (8X11)
$4.30¢2 150
1
#031
91315-MGS-D20
RING, BACK-UP (8X11)
$4.30¢2 150
1
#032
91344-PC9-004
O-RING (29X2.4) (NOK)
$4.28¢2 138
1
#32
91344-PC9-004
O-RING (29X2.4) (NOK)
$4.28¢2 138
1
#33
91502-MGS-D50
COLLAR
$3.50¢1 750
1
#033
91502-MGS-D50
COLLAR
$3.50¢1 750
1
#034
94301-08200
PIN, DOWEL (8X20)
$2.89¢1 444
1
#34
94301-08200
PIN, DOWEL (8X20)
$2.89¢1 444
1
#35
94520-40150
CIRCLIP (INNER) (40)
$2.60¢1 300
1
#035
94520-40150
CIRCLIP (INNER) (40)
$2.60¢1 300
1
#036
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#36
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#37
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#037
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
#38
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
#038
96001-06014-00
BOLT, FLANGE (6X14)
$2.31¢1 156
1
