FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

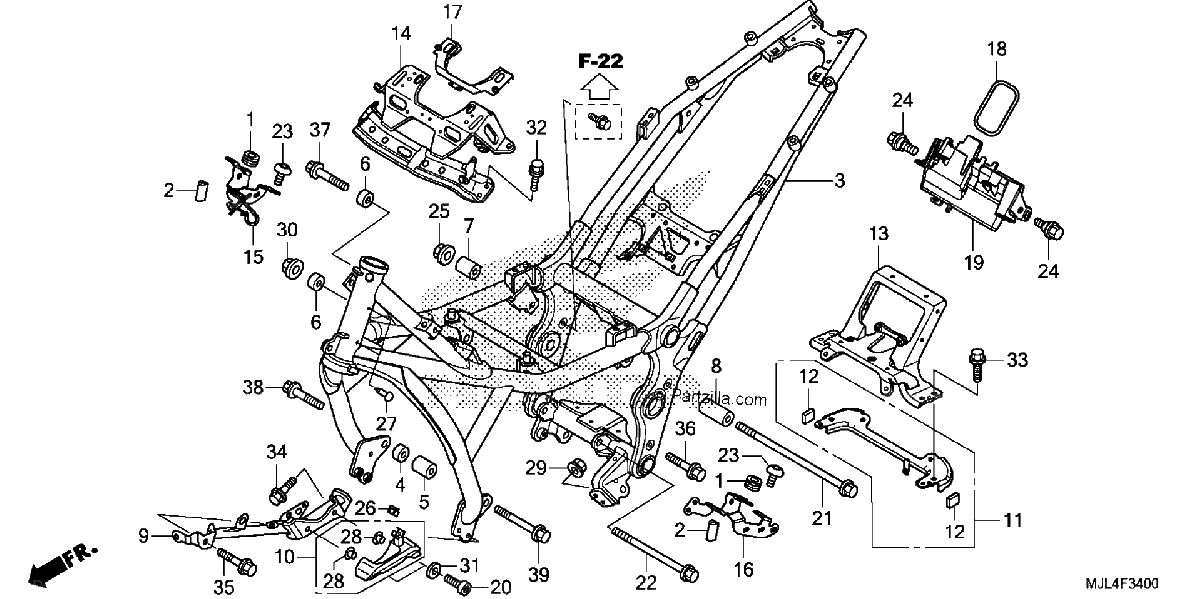

Diagrama de FRAME

Repuestos

#001
17245-107-010
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.36¢1 679
1
#1
17245-107-010
RUBBER, AIR CLEANER HOUSING MOUNTING
$3.36¢1 679
1
#2
17516-KCZ-000ZB
TRIM, FUEL TANK NH1 (BLACK)
$2.39¢1 196
1
#002
17516-KCZ-000ZB
TRIM, FUEL TANK NH1 (BLACK)
$2.39¢1 196
1
#003
50100-MJL-D50ZB
FRAME *NH303M* (MAT AXIS GRAY METALLIC)
$3085.30¢1 542 650
1
#3
50100-MJL-D50ZB
FRAME *NH303M* (MAT AXIS GRAY METALLIC)
$3085.30¢1 542 650
1
#004
50191-MGS-D10
COLLAR A, R. ENGINE HANGER
$9.50¢4 749
1
#4
50191-MGS-D10
COLLAR A, R. ENGINE HANGER
$9.50¢4 749
1
#5
50192-MGS-D10
COLLAR A, L ENGINE HANGER
$14.18¢7 090
1
#005
50192-MGS-D10
COLLAR A, L ENGINE HANGER
$14.18¢7 090
1
#6
50193-MGS-D10
COLLAR B, ENGINE HANGER
$6.58¢3 289
1
#006
50193-MGS-D10
COLLAR B, ENGINE HANGER
$6.58¢3 289
1
#007
50194-MGS-D10
COLLAR C, R. ENGINE HANGER
$13.35¢6 676
1
#7
50194-MGS-D10
COLLAR C, R. ENGINE HANGER
$13.35¢6 676
1
#008
50195-MGS-D10
COLLAR C, L. ENGINE HANGER
$15.50¢7 751
1
#8
50195-MGS-D10
COLLAR C, L. ENGINE HANGER
$15.50¢7 751
1
#009
50196-MGS-D50
PIPE, GUARD
$181.81¢90 907
1
#9
50196-MGS-D50
PIPE, GUARD
$181.81¢90 907
1
#10
50197-MGS-D50
COVER, MOTOR
$23.80¢11 902
1
#010
50197-MGS-D50
COVER, MOTOR
$23.80¢11 902
1
#011
50230-MJL-D30
STAY SET, FR. TANK
$23.02¢11 511
1
#11
50230-MJL-D30
STAY SET, FR. TANK
$23.02¢11 511
1
#12
50233-MGS-D30
RUBBER, CROSS PLATE
$1.17¢586
1
#012
50233-MGS-D30
RUBBER, CROSS PLATE
$1.17¢586
1
#013
50234-MGS-D30
PLATE, CENTER CROSS
$178.12¢89 062
1
#13
50234-MGS-D30
PLATE, CENTER CROSS
$178.12¢89 062
1
#14
50236-MGS-D30
PLATE B, CROSS
$105.80¢52 900
1
#014
50236-MGS-D30
PLATE B, CROSS
$105.80¢52 900
1
#15
50237-MJL-D30
STAY, Right AIR CLEANER HOUSING
$18.40¢9 200
1
#015
50237-MJL-D30
STAY, Right AIR CLEANER HOUSING
$18.40¢9 200
1
#16
50238-MJL-D30
STAY, L AIR CLEANER HOUSING
$14.95¢7 475
1
#016
50238-MJL-D30
STAY, L AIR CLEANER HOUSING
$14.95¢7 475
1
#017
50239-MGS-D30
RUBBER, CROSS PLATE
$9.18¢4 589
1
#17
50239-MGS-D30
RUBBER, CROSS PLATE
$9.18¢4 589
1
#18
80123-GN5-900
BAND, TOOL
$3.16¢1 581
1
#018
80123-GN5-900
BAND, TOOL
$3.16¢1 581
1
#19
81230-MGS-D30
BOX, ELECTRIC CONTROL UNIT
$14.50¢7 251
1
#019
81230-MGS-D30
BOX, ELECTRIC CONTROL UNIT
$14.50¢7 251
1
#20
90102-MN8-700
BOLT, SOCKET (8X25)
$5.07¢2 536
1
#020
90102-MN8-700
BOLT, SOCKET (8X25)
$5.07¢2 536
1
#021
90103-MGS-D30
BOLT, FLANGE (12X276)
$23.21¢11 603
1
#21
90103-MGS-D30
BOLT, FLANGE (12X276)
$23.21¢11 603
1
#22
90104-MGS-D30
BOLT, FLANGE (12X168)
$14.36¢7 182
1
#022
90104-MGS-D30
BOLT, FLANGE (12X168)
$14.36¢7 182
1
#023
90106-KSE-000
SCREW, PAN (6X12)
$2.27¢1 133
1
#23
90106-KSE-000
SCREW, PAN (6X12)
$2.27¢1 133
1
#024
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#24
90111-162-000
BOLT, FLANGE (6MM)
$3.36¢1 679
1
#25
90364-MEJ-000
NUT, FLANGE (12MM)
$2.04¢1 018
1
#025
90364-MEJ-000
NUT, FLANGE (12MM)
$2.04¢1 018
1
#26
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#026
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#27
90841-001-000
SCREW, RIVET (1.8X5)
$1.79¢897
1
#027
90841-001-000
SCREW, RIVET (1.8X5)
$1.79¢897
1
#28
91501-MGS-D30
COLLAR
$3.60¢1 800
1
#028
91501-MGS-D30
COLLAR
$3.60¢1 800
1
#29
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#029
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#30
94050-12000
NUT, FLANGE (12MM)
$1.17¢586
1
#030
94050-12000
NUT, FLANGE (12MM)
$1.17¢586
1
#31
94101-08700
WASHER, PLAIN (8MM)
$1.17¢586
1
#031
94101-08700
WASHER, PLAIN (8MM)
$1.17¢586
1
#032
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#32
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#033
95701-06022-08
BOLT, FLANGE (6X22)
$2.04¢1 018
1
#33
95701-06022-08
BOLT, FLANGE (6X22)
$2.04¢1 018
1
#34
95701-08020-07
BOLT, FLANGE (8X20)
$2.21¢1 104
1
#034
95701-08020-07
BOLT, FLANGE (8X20)
$2.21¢1 104
1
#35
95701-08022-08
BOLT, FLANGE (8X22)
$2.48¢1 242
1
#035
95701-08022-08
BOLT, FLANGE (8X22)
$2.48¢1 242
1
#036
95701-12035-08
BOLT, FLANGE (12X35)
$3.75¢1 874
1
#36
95701-12035-08
BOLT, FLANGE (12X35)
$3.75¢1 874
1
#037
95701-12045-08
BOLT, FLANGE (12X45)
$2.17¢1 087
1
#37
95701-12045-08
BOLT, FLANGE (12X45)
$2.17¢1 087
1
#038
95701-12055-08
BOLT, FLANGE (12X55)
$3.89¢1 943
1
#38
95701-12055-08
BOLT, FLANGE (12X55)
$3.89¢1 943
1
#039
95701-12080-08
BOLT, FLANGE (12X80)
$5.22¢2 610
1
#39
95701-12080-08
BOLT, FLANGE (12X80)
$5.22¢2 610
1
