FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

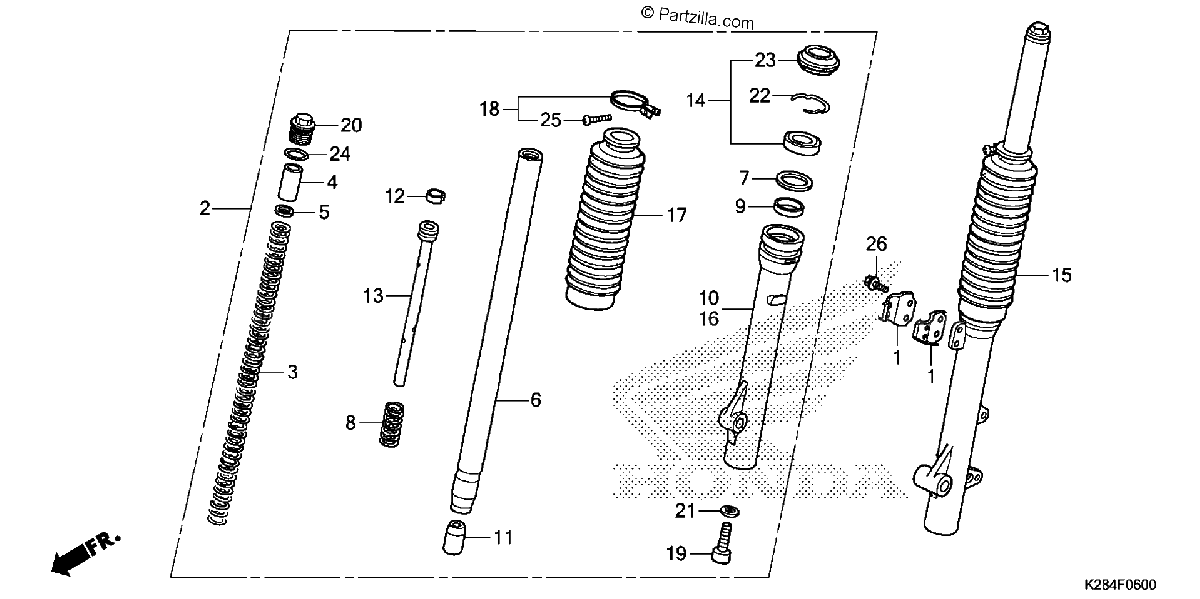

Diagrama de FRONT FORK

Repuestos

#1
45461-KRH-900
CLAMP A, BRAKE HOSE
$7.60¢3 801
1
#2
51400-K28-305
FORK ASSY., R. FR. (COO)
$657.36¢328 682
1
#3
51401-K28-911
SPRING, FR. FORK
$58.03¢29 015
1
#4
51402-K28-911
COLLAR, SPRING
$11.47¢5 733
1
#5
51403-K28-911
PLATE, SPRING
$4.37¢2 185
1
#6
51410-K28-911
PIPE, FR. FORK
$296.64¢148 321
1
#7
51412-GGC-901
WASHER, OIL SEAL (CHUANNAN ABSORBER)
$6.20¢3 099
1
#8
51413-KRH-901
SPRING, REBOUND
$11.52¢5 761
1
#9
51414-GFM-J11
GUIDE, FR. FORK (CHUANNAN ABSORBER)
$10.26¢5 129
1
#10
51420-K28-911
CASE, R. (LOWER)
$282.13¢141 065
1
#11
51432-KRH-901
PIECE, OIL LOCK
$12.57¢6 285
1
#12
51437-KRH-901
RING, PISTON
$7.26¢3 628
1
#13
51440-K28-911
PIPE, SEAT
$37.01¢18 504
1
#14
51490-KRH-901
SEAL SET, FR. FORK
$21.23¢10 615
1
#15
51500-K28-305
FORK ASSY., L. FR. (COO)
$657.36¢328 682
1
#16
51520-K28-911
CASE, L. (LOWER)
$269.87¢134 935
1
#17
51611-K28-911
BOOT, FR. FORK
$55.96¢27 979
1
#18
51612-KTJ-C00
BAND, FR. FORK BOOT (CHUANNAN ABSORBER)
$12.62¢6 308
1
#19
90116-KRF-H71
BOLT, SOCKET (8X30) (CHUANNAN ABSORBER)
$4.09¢2 047
1
#20
90123-KRF-H71
BOLT, FR. FORK
$19.46¢9 729
1
#21
90544-KRF-H71
WASHER, SPECIAL (8MM) (CHUANNAN ABSORBER)
$2.32¢1 162
1
#22
90651-KRF-H71
RING, OIL SEAL STOPPER (CHUANNAN ABSORBER)
$1.21¢604
1
#23
91254-KRH-901
DUST SEAL
$10.82¢5 411
1
#24
91351-KRF-H71
O-RING (22X2.8) (CHUANNAN ABSORBER)
$3.36¢1 679
1
#25
93500-03020-0G
SCREW, PAN (3X20)
$0.89¢443
1
#26
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
