FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

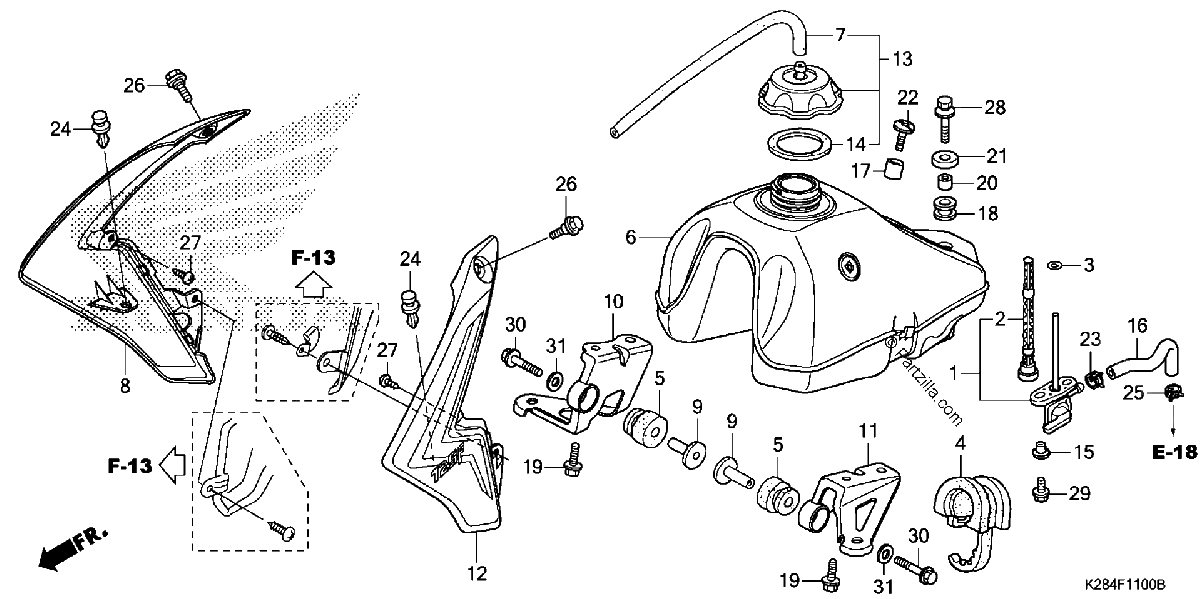

Diagrama de FUEL TANK

Repuestos

#1
16950-KSJ-A21
PETCOCK ASSY.
$66.64¢33 321
1
#2
16952-KSJ-A21
SCREEN SET, FUEL STRAINER
$24.09¢12 046
1
#3
16997-467-000
O-RING (11.8X3.55)
$2.62¢1 311
1
#4
17504-GN1-770
RUBBER, TANK SETTING
$16.47¢8 234
1
#5
17508-GBF-830
RUBBER, TANK MOUNTING
$6.59¢3 295
1
#6
17510-K28-910
TANK, FUEL
$419.43¢209 714
1
#7
17521-429-000
TUBE, FUEL CAP BREATHER
$7.77¢3 887
1
#8
17545-K28-910ZA
SHROUD SET A, R. TANK (TYPE1) (WL)
$71.66¢35 828
1
#9
17551-K28-910
COLLAR, TANK SET
$8.31¢4 157
1
#10
17553-K28-910
BRACKET, R. FR. TANK
$24.18¢12 092
1
#11
17554-K28-910
BRACKET, L. FR. TANK
$26.06¢13 029
1
#12
17555-K28-910ZA
SHROUD SET A, L. TANK (TYPE1) (WL)
$68.87¢34 437
1
#13
17620-GEL-770
CAP ASSY., FUEL TANK
$33.59¢16 796
1
#14
17624-GEL-770
GASKET, FUEL CAP
$5.12¢2 559
1
#15
17626-467-000
COLLAR, FUEL TANK SETTING
$5.32¢2 662
1
#16
17681-K28-910
TUBE, FUEL
$12.72¢6 360
1
#17
77207-KYK-910
COLLAR, SEAT MOUNT
$3.84¢1 920
1
#18
80103-MG2-000
CUSHION, RR. FENDER
$3.39¢1 696
1
#19
90004-GHB-600
BOLT, FLANGE (6X10) (NSHF)
$3.45¢1 725
1
#20
90112-K28-910
COLLAR, TANK MOUNT
$3.96¢1 978
1
#21
90113-K28-910
WASHER, TANK MOUNTING
$3.62¢1 811
1
#22
90381-KCW-870
SCREW, SPECIAL (6X17)
$3.36¢1 679
1
#23
90652-KSJ-A21
CLAMP, TUBE (8.0)
$1.71¢857
1
#24
90653-HC4-900
CLIP, SPLASH GUARD
$0.70¢351
1
#25
90653-KSJ-A20
CLAMP, TUBE (8.5)
$1.71¢857
1
#26
90653-KYK-910
BOLT, SPECIAL (6MM)
$3.36¢1 679
1
#27
93913-24220
SCREW, TAPPING (4X12)
$1.07¢535
1
#28
95701-08025-00
BOLT, FLANGE (8X25)
$2.12¢1 058
1
#29
96001-06014-00
BOLT, FLANGE (6X14)
$2.13¢1 064
1
#30
96001-06040-00
BOLT, FLANGE (6X40)
$2.56¢1 282
1
#31
94103-06800
WASHER, PLAIN (6MM)
$0.92¢460
1
