FRAME

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

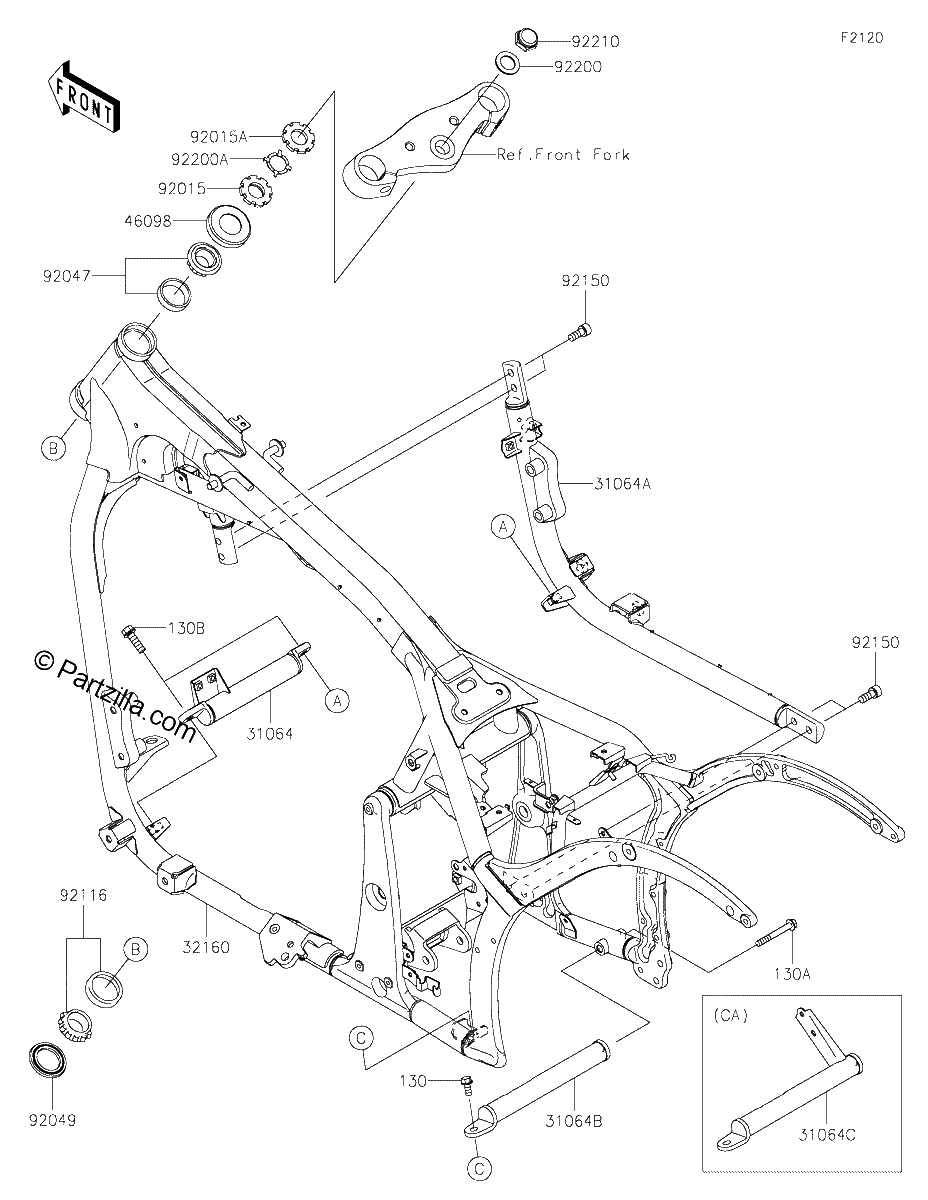

Diagrama de FRAME

Repuestos

#130
130BB0818
BOLT FLANGED,8X18
$1.66¢831
1
#130A
130BB0865
BOLT-FLANGED,8X65
$5.30¢2 650
1
#130B
130BB1025
BOLT-FLANGED,10X25
$5.41¢2 706
1
#31064
31064-0047-26M
PIPE COMP,FRONT CROSS,F M GRAY
$151.18¢75 588
1
#31064C
31064-0184-26M
PIPE COMP,REAR CROSS,F M GRAY
$98.79¢49 394
1
#31064B
31064-0183-26M
PIPE COMP,REAR CROSS,F M GRAY
$98.79¢49 394
1
#31064A
31064-0097-26M
PIPE COMP,DOWNTUBE,Right Hand,F M GRAY
$452.98¢226 488
1
#32160
32160-0597-26M
FRAME COMP,F M GRAY
$3373.80¢1 686 900
1
#46098
46098-017
CAP,STEERING STEM
$6.29¢3 144
1
#92015A
92015-1378
NUT,25MM,T=6
$22.09¢11 044
1
#92015
92015-1377
NUT,25MM,T=10
$29.98¢14 988
1
#92047
92047-017
RACE,ROLLER,32005JR RS
$49.81¢24 906
1
#92049
92049-1162
SEAL OIL,XMHE36X52X4J
$9.22¢4 613
1
#92116
92116-1009
BEARING ROLLER,HR320/28XJ
$41.35¢20 675
1
#92150
92150-1942
BOLT,SOCKET,10X23
$7.30¢3 650
1
#92200A
92200-0353
WASHER,CLAW,25.5X34X0.6
$4.11¢2 056
1
#92200
92200-0270
WASHER,22.5X36X2.3
$4.11¢2 056
1
#92210
92210-0263
NUT,CAP,22MM
$24.15¢12 075
1
