CLUTCH 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

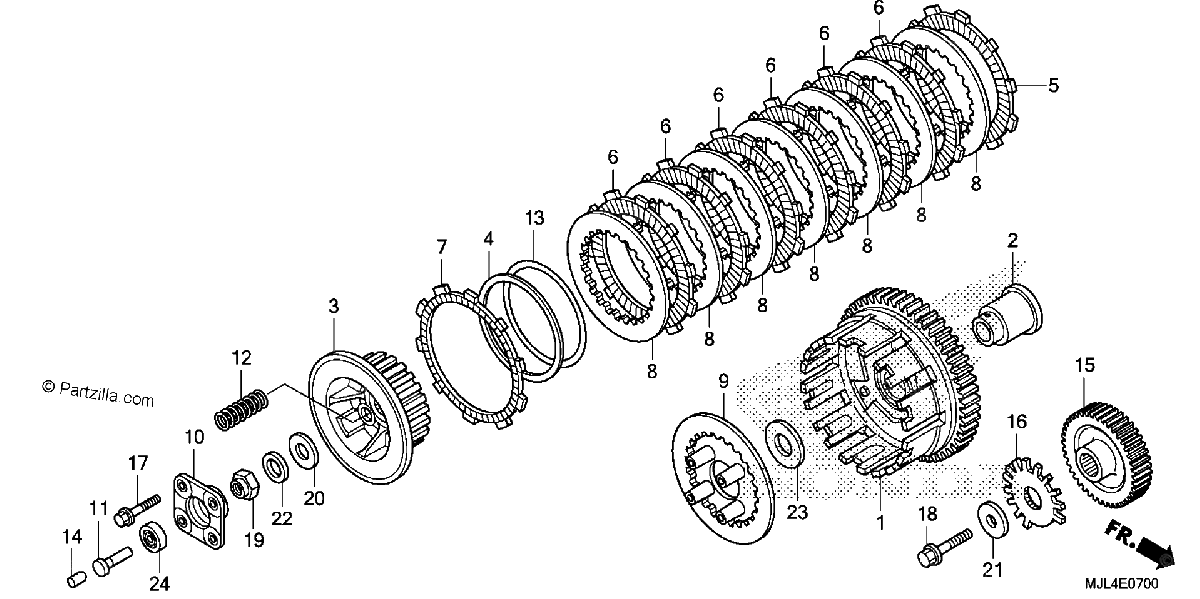

Diagrama de CLUTCH 1

Repuestos

#001
22100-MGS-D30
CLUTCH OUTER (71T)
$520.76¢260 381
1
#1
22100-MGS-D30
CLUTCH OUTER (71T)
$520.76¢260 381
1
#002
22116-MGS-D30
GUIDE, CLUTCH (OUTER)
$48.63¢24 313
1
#2
22116-MGS-D30
GUIDE, CLUTCH (OUTER)
$48.63¢24 313
1
#003
22120-MBA-000
CENTER, CLUTCH (24T)
$101.97¢50 988
1
#3
22120-MBA-000
CENTER, CLUTCH (24T)
$101.97¢50 988
1
#4
22125-MJL-D30
SEAT, JUDDER SPRING
$11.60¢5 800
1
#004
22125-MJL-D30
SEAT, JUDDER SPRING
$11.60¢5 800
1
#005
22201-MAV-000
DISK, CLUTCH FRICTION
$15.13¢7 563
1
#5
22201-MAV-000
DISK, CLUTCH FRICTION
$15.13¢7 563
1
#6
22201-MEW-920
DISK, CLUTCH FRICTION
$16.30¢8 150
1
#006
22201-MEW-920
DISK, CLUTCH FRICTION
$16.30¢8 150
1
#007
22202-MAE-000
DISK B, CLUTCH FRICTION
$18.59¢9 294
1
#7
22202-MAE-000
DISK B, CLUTCH FRICTION
$18.59¢9 294
1
#8
22321-MJH-Y00
PLATE, CLUTCH
$15.32¢7 663
1
#008
22321-MJH-Y00
PLATE, CLUTCH
$15.32¢7 663
1
#009
22350-MS6-922
PLATE, CLUTCH PRESSURE
$70.22¢35 113
1
#9
22350-MS6-922
PLATE, CLUTCH PRESSURE
$70.22¢35 113
1
#10
22361-MR1-000
PLATE, CLUTCH LIFTER
$24.59¢12 294
1
#010
22361-MR1-000
PLATE, CLUTCH LIFTER
$24.59¢12 294
1
#11
22366-MFF-D00
ROD, CLUTCH CENTER
$15.25¢7 625
1
#011
22366-MFF-D00
ROD, CLUTCH CENTER
$15.25¢7 625
1
#12
22401-MJL-D30
SPRING, CLUTCH
$6.39¢3 194
1
#012
22401-MJL-D30
SPRING, CLUTCH
$6.39¢3 194
1
#013
22402-MJL-D31
SPRING, JUDDER
$60.20¢30 100
1
#013
22402-MJL-D30
SPRING, JUDDER
No Disponible
1
#13
22402-MJL-D30
SPRING, JUDDER
No Disponible
1
#14
22847-MFF-D00
ROD, CLUTCH LIFTER
$7.99¢3 994
1
#014
22847-MFF-D00
ROD, CLUTCH LIFTER
$7.99¢3 994
1
#15
23103-MGS-D30
GEAR, PRIMARY DRIVE (41T)
$189.24¢94 619
1
#015
23103-MGS-D30
GEAR, PRIMARY DRIVE (41T)
$189.24¢94 619
1
#16
30291-MGS-D30
ROTOR, PULSE
$10.32¢5 163
1
#016
30291-MGS-D30
ROTOR, PULSE
$10.32¢5 163
1
#017
90007-MJH-Y01
BOLT, FLANGE (6X35)
$3.65¢1 825
1
#17
90007-MJH-Y01
BOLT, FLANGE (6X35)
$3.65¢1 825
1
#18
90023-MBW-000
BOLT, FLANGE (10MM)
$12.60¢6 300
1
#018
90023-MBW-000
BOLT, FLANGE (10MM)
$12.60¢6 300
1
#19
90236-HA0-000
NUT, LOCK (18MM)
$12.21¢6 106
1
#019
90236-HA0-000
NUT, LOCK (18MM)
$12.21¢6 106
1
#020
90401-MZ8-B40
WASHER (18MM)
$3.26¢1 631
1
#20
90401-MZ8-B40
WASHER (18MM)
$3.26¢1 631
1
#21
90414-MGE-D00
WASHER (10.5X36X4)
$3.02¢1 513
1
#021
90414-MGE-D00
WASHER (10.5X36X4)
$3.02¢1 513
1
#022
90432-428-000
WASHER, LOCK
$9.19¢4 594
1
#22
90432-428-000
WASHER, LOCK
$9.19¢4 594
1
#023
90452-471-000
WASHER, THRUST (22MM)
$5.79¢2 894
1
#23
90452-471-000
WASHER, THRUST (22MM)
$5.79¢2 894
1
#024
96100-60010-00
BEARING, RADIAL BALL (6001)
$25.94¢12 969
1
#24
96100-60010-00
BEARING, RADIAL BALL (6001)
$25.94¢12 969
1
