FUEL TANK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

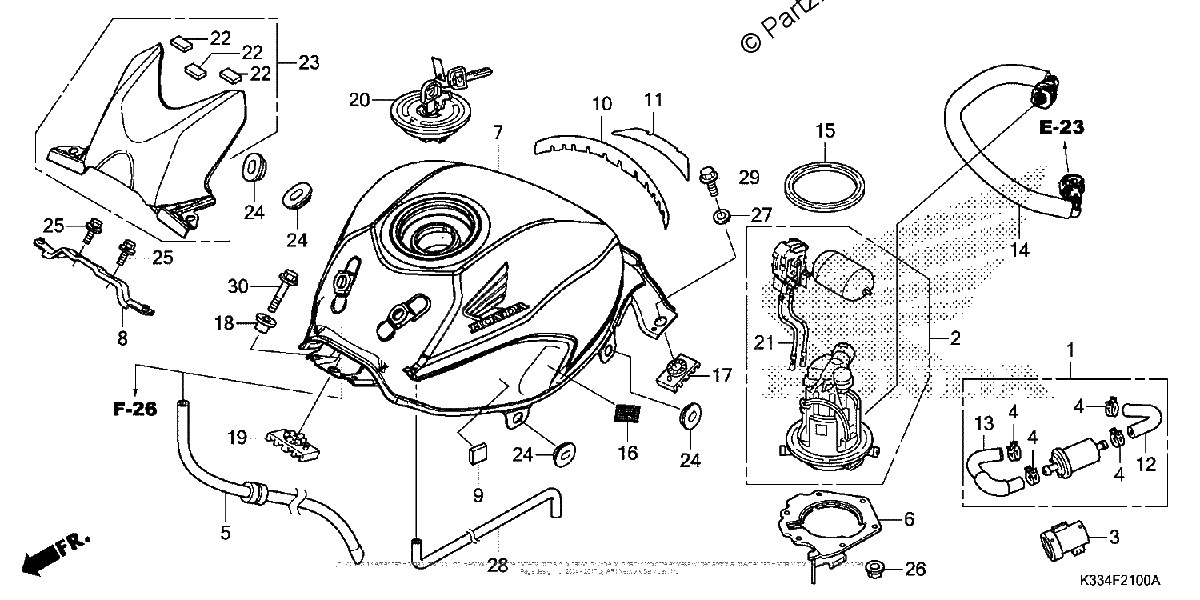

Diagrama de FUEL TANK

Repuestos

#001
06160-KYJ-920
FILTER KIT, FUEL
$59.93¢29 963
1
#1
06160-KYJ-920
FILTER KIT, FUEL
$59.93¢29 963
1
#002
16700-KYJ-901
PUMP ASSY., FUEL
$513.08¢256 542
1
#2
16700-KYJ-901
PUMP ASSY., FUEL
$513.08¢256 542
1
#3
16912-KYJ-900
HOLDER, FUEL FILTER
$10.88¢5 440
1
#003
16912-KYJ-900
HOLDER, FUEL FILTER
$10.88¢5 440
1
#004
16962-KYJ-920
CLAMP, TUBE (14.0)
$1.68¢839
1
#4
16962-KYJ-920
CLAMP, TUBE (14.0)
$1.68¢839
1
#006
17507-KYJ-900
PLATE, SETTING
$8.26¢4 129
1
#6
17507-KYJ-900
PLATE, SETTING
$8.26¢4 129
1
#7
17520-K33-A30ZA
TANK SET, FUEL (TYPE1) (WL)
$721.83¢360 916
1
#007
17520-K33-A30ZA
TANK SET, FUEL (TYPE1) (WL)
$721.83¢360 916
1
#008
17522-K33-D00
STAY, TANK LID
$7.52¢3 760
1
#8
17522-K33-D00
STAY, TANK LID
$7.52¢3 760
1
#9
17525-KPP-T00
RUBBER, FUEL TANK
$2.27¢1 133
1
#009
17525-KPP-T00
RUBBER, FUEL TANK
$2.27¢1 133
1
#10
17527-KYJ-710
FILM A, TANK PROTECTOR
$15.61¢7 803
1
#010
17527-KYJ-710
FILM A, TANK PROTECTOR
$15.61¢7 803
1
#11
17528-KYJ-710
FILM B, TANK PROTECTOR
$10.79¢5 394
1
#011
17528-KYJ-710
FILM B, TANK PROTECTOR
$10.79¢5 394
1
#012
17541-KYJ-920
TUBE A, FUEL PUMP
$19.94¢9 971
1
#12
17541-KYJ-920
TUBE A, FUEL PUMP
$19.94¢9 971
1
#13
17542-KYJ-920
TUBE B, FUEL PUMP
$29.11¢14 553
1
#013
17542-KYJ-920
TUBE B, FUEL PUMP
$29.11¢14 553
1
#14
17570-K33-D01
HOSE, FUEL FEED
$63.28¢31 642
1
#014
17570-K33-D01
HOSE, FUEL FEED
$63.28¢31 642
1
#015
17572-KTR-941
GASKET, FUEL PUMP
$24.67¢12 334
1
#15
17572-KTR-941
GASKET, FUEL PUMP
$24.67¢12 334
1
#016
17580-MGZ-J00
FASTENER A, DUAL LOCK (18X28)
$2.90¢1 449
1
#16
17580-MGZ-J00
FASTENER A, DUAL LOCK (18X28)
$2.90¢1 449
1
#17
17613-K33-D00
CUSHION, FUEL TANK (B)
$3.42¢1 708
1
#017
17613-K33-D00
CUSHION, FUEL TANK (B)
$3.42¢1 708
1
#018
17614-K33-D00
COLLAR, FUEL TANK
$2.00¢1 001
1
#18
17614-K33-D00
COLLAR, FUEL TANK
$2.00¢1 001
1
#019
17615-K33-D00
CUSHION, FUEL TANK (A)
$4.19¢2 093
1
#19
17615-K33-D00
CUSHION, FUEL TANK (A)
$4.19¢2 093
1
#20
17620-MCB-611
CAP, FUEL FILLER
$147.46¢73 732
1
#020
17620-MCB-611
CAP, FUEL FILLER
$147.46¢73 732
1
#020
17620-MCB-612
CAP, FUEL FILLER
$147.46¢73 732
1
#21
37800-KYJ-901
FUEL UNIT
$137.38¢68 690
1
#021
37800-KYJ-901
FUEL UNIT
$137.38¢68 690
1
#022
64455-KPP-T00
RUBBER SPONGE, TANK COVER
$1.62¢811
1
#22
64455-KPP-T00
RUBBER SPONGE, TANK COVER
$1.62¢811
1
#023
64700-K33-D00ZE
COVER ASSY., FUEL TANK *NH436M*(MAT GUNPOWDER BLACK METALLIC)
$38.61¢19 303
1
#23
64700-K33-D00ZE
COVER ASSY., FUEL TANK *NH436M*(MAT GUNPOWDER BLACK METALLIC)
$38.61¢19 303
1
#024
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.09¢2 047
1
#24
83551-300-000
GROMMET, AIR CLEANER HOUSING
$4.09¢2 047
1
#25
93401-06014-00
BOLT-WASHER (6X14)
$1.92¢960
1
#025
93401-06014-00
BOLT-WASHER (6X14)
$1.92¢960
1
#026
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#26
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#027
94103-06800
WASHER, PLAIN (6MM)
$0.92¢460
1
#27
94103-06800
WASHER, PLAIN (6MM)
$0.92¢460
1
#028
95005-80001-20M
BULK HOSE, VACUUM (8X1000) (8X50)
$25.73¢12 863
1
#28
95005-80001-20M
BULK HOSE, VACUUM (8X1000) (8X50)
$25.73¢12 863
1
#029
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#29
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#30
95701-08030-08
BOLT, FLANGE (8X30)
$1.66¢828
1
#030
95701-08030-08
BOLT, FLANGE (8X30)
$1.66¢828
1
