REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

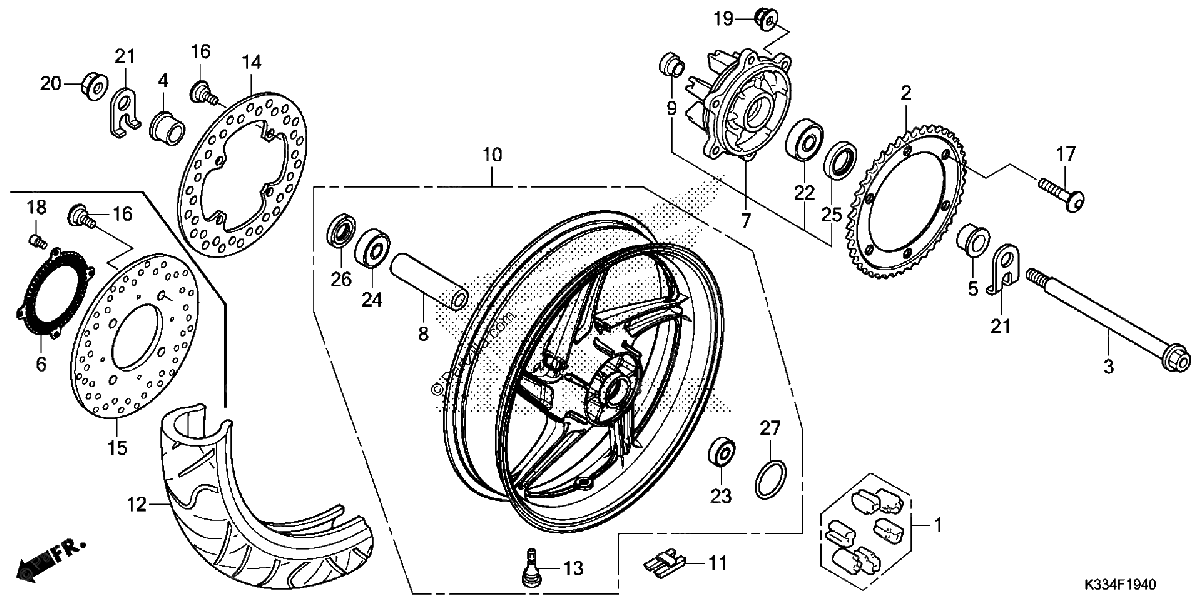

Diagrama de REAR WHEEL

Repuestos

#1
06410-KEA-750
DAMPER SET, WHEEL
$47.92¢23 960
1
#001
06410-KEA-750
DAMPER SET, WHEEL
$47.92¢23 960
1
#2
41201-K33-D00
SPROCKET, FINAL DRIVEN (36T)
$48.54¢24 271
1
#002
41201-K33-D00
SPROCKET, FINAL DRIVEN (36T)
$48.54¢24 271
1
#3
42301-KYJ-900
AXLE, Rear WHEEL
$22.09¢11 046
1
#003
42301-KYJ-900
AXLE, Rear WHEEL
$22.09¢11 046
1
#4
42312-KYJ-900
COLLAR, Right Rear WHEEL SIDE
$18.34¢9 171
1
#004
42312-KYJ-900
COLLAR, Right Rear WHEEL SIDE
$18.34¢9 171
1
#005
42313-KYJ-900
COLLAR, L. RR. WHEEL SIDE
$14.56¢7 280
1
#5
42313-KYJ-900
COLLAR, L. RR. WHEEL SIDE
$14.56¢7 280
1
#6
42515-KYJ-910
RING, Rear PULSER
$68.74¢34 368
1
#006
42515-KYJ-910
RING, Rear PULSER
$68.74¢34 368
1
#007
42615-K33-D00ZA
FLANGE SUB-ASSY., RR. DRIVEN *NH303M* (MAT AXIS GRAY METALLIC)
$129.01¢64 504
1
#7
42615-K33-D00ZA
FLANGE SUB-ASSY., RR. DRIVEN *NH303M* (MAT AXIS GRAY METALLIC)
$129.01¢64 504
1
#008
42620-KYJ-900
COLLAR, RR. WHEEL DISTANCE
$8.41¢4 203
1
#8
42620-KYJ-900
COLLAR, RR. WHEEL DISTANCE
$8.41¢4 203
1
#9
42625-MC4-000
COLLAR B, Rear AXLE DISTANCE
$19.78¢9 890
1
#009
42625-MC4-000
COLLAR B, Rear AXLE DISTANCE
$19.78¢9 890
1
#9
42625-MAN-620
COLLAR B, RR. AXLE DISTANCE
$23.26¢11 632
1
#10
42650-K33-305ZA
WHEEL SUB-Assembly., Rear. NH303M (COO)(MAT AXIS GRAY METALLIC)
$420.20¢210 099
1
#010
42650-K33-305ZA
WHEEL SUB-Assembly., Rear. NH303M (COO)(MAT AXIS GRAY METALLIC)
$420.20¢210 099
1
#011
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#11
42704-MER-D00
WEIGHT, BALANCE (10G)
$10.04¢5 020
1
#11
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#011
42705-MER-D00
WEIGHT, BALANCE (20G)
$20.62¢10 310
1
#011
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#11
42706-MER-D00
WEIGHT, BALANCE (30G)
$20.32¢10 160
1
#12
42711-KYJ-902
TIRE, RR. (140/70-17M/C 66S) (IRC)
$122.47¢61 238
1
#012
42711-KYJ-902
TIRE, RR. (140/70-17M/C 66S) (IRC)
$122.47¢61 238
1
#012
42711-KYJ-903
TIRE, RR. (140/70-17M/C 66S) (IRC)
$122.47¢61 238
1
#12
42711-KYJ-903
TIRE, RR. (140/70-17M/C 66S) (IRC)
$122.47¢61 238
1
#012
42711-KYJ-904
TIRE, Rear. (140/70-17M/C 66S) (IRC)
$122.47¢61 238
1
#012
42711-KYJ-905
TIRE, Rear. (140/70-17M/C 66S) (IRC)
$122.47¢61 238
1
#013
42753-KWF-901
VALVE, RIM (TRITON)
$0.66¢328
1
#13
42753-KWF-901
VALVE, RIM (TRITON)
$0.66¢328
1
#013
42753-K38-901
VALVE, RIM
$0.66¢328
1
#13
42753-GM9-743
VALVE, RIM (IRC)
$9.34¢4 669
1
#013
42753-GM9-743
VALVE, RIM (IRC)
$9.34¢4 669
1
#015
43251-KYJ-911
DISK, RR. BRAKE
$85.86¢42 930
1
#15
43251-KYJ-911
DISK, RR. BRAKE
$85.86¢42 930
1
#16
90105-KGH-900
BOLT, BRAKE DISK (8X24)
$2.27¢1 133
1
#016
90105-KGH-900
BOLT, BRAKE DISK (8X24)
$2.27¢1 133
1
#017
90128-KYJ-900
BOLT, SPROCKET FIXING
$1.60¢799
1
#17
90128-KYJ-900
BOLT, SPROCKET FIXING
$1.60¢799
1
#18
90131-KYJ-910
BOLT, HEX. (5X8)
$8.22¢4 111
1
#018
90131-KYJ-910
BOLT, HEX. (5X8)
$8.22¢4 111
1
#19
90304-KGH-901
NUT, U (10MM) (FUJI SEIMITSU)
$3.52¢1 759
1
#019
90304-KGH-901
NUT, U (10MM) (FUJI SEIMITSU)
$3.52¢1 759
1
#20
90306-MGZ-J01
NUT, U FLANGE (16MM)
$7.69¢3 847
1
#020
90306-MGZ-J01
NUT, U FLANGE (16MM)
$7.69¢3 847
1
#21
90559-KYJ-900
WASHER, Rear SWINGARM
$3.55¢1 777
1
#021
90559-KYJ-900
WASHER, Rear SWINGARM
$3.55¢1 777
1
#022
91013-MCG-901
BEARING, RADIAL BALL (6204) (UU) (FUJIKOSHI)
$15.75¢7 877
1
#22
91013-MCG-901
BEARING, RADIAL BALL (6204) (UU) (FUJIKOSHI)
$15.75¢7 877
1
#023
91051-KVK-901
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$10.03¢5 014
1
#23
91051-KVK-901
BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)
$10.03¢5 014
1
#024
91051-MGZ-J01
BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)
$23.49¢11 747
1
#24
91051-MGZ-J01
BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)
$23.49¢11 747
1
#025
91253-443-762
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
1
#25
91253-443-762
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
1
#25
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
1
#025
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
1
#26
91253-443-762
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
1
#026
91253-443-762
DUST SEAL (30X47X8) (NOK)
$12.96¢6 480
1
#026
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
1
#26
91253-443-761
DUST SEAL (30X47X8) (ARAI)
$12.96¢6 480
1
#27
91302-317-700
O-RING (54X2)
$3.60¢1 800
1
#027
91302-317-700
O-RING (54X2)
$3.60¢1 800
1
#27
91307-MB0-000
O-RING (54X2)
$3.60¢1 800
1
#027
91307-MB0-000
O-RING (54X2)
$3.60¢1 800
1
#27
91307-MB0-003
O-RING (54X2) (ARAI)
$3.60¢1 800
1
#027
91307-MB0-003
O-RING (54X2) (ARAI)
$3.60¢1 800
1
