RADIATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

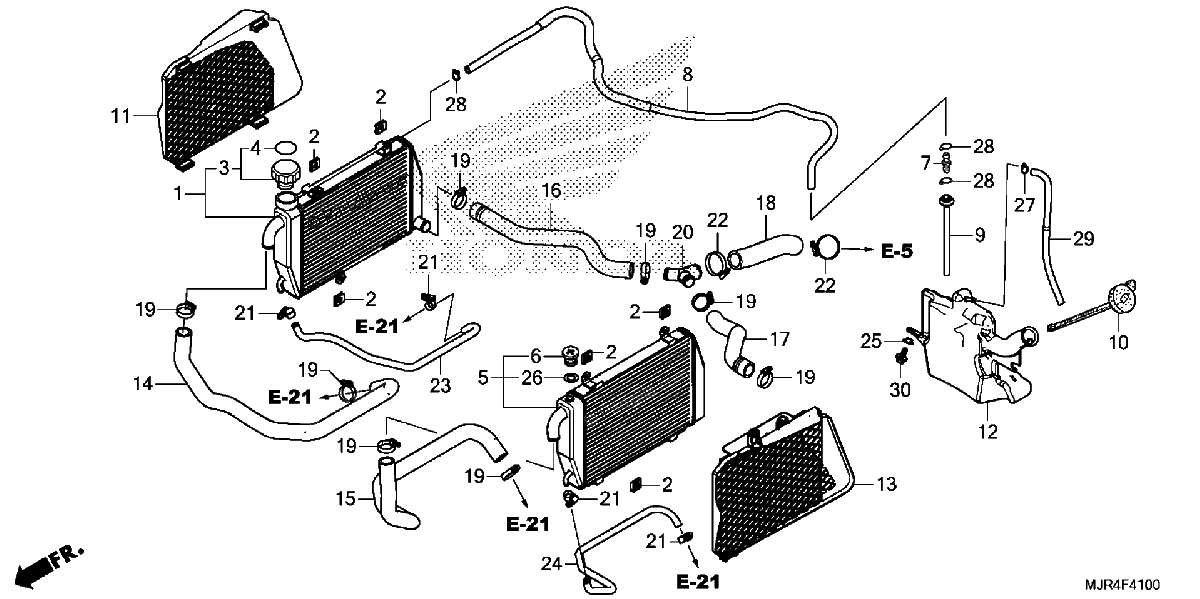

Diagrama de RADIATOR

Repuestos

#1
19010-MJR-305
RADIATOR, R. (COO)
$794.88¢397 438
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.75¢1 875
1
#3
19045-MY3-621
CAP, RADIATOR
$47.33¢23 663
1
#4
19055-MV9-881
SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)
$10.79¢5 394
1
#5
19060-MJR-305
RADIATOR, L. (COO)
$830.71¢415 356
1
#6
19071-MEC-003
PETCOCK, DRAIN
$4.34¢2 169
1
#7
19102-KT8-000
JOINT, TUBE
$8.03¢4 013
1
#8
19102-MJR-670
TUBE, RESERVE TANK
$30.29¢15 144
1
#9
19102-ML7-701
TUBE, LEVEL
$13.10¢6 550
1
#10
19104-MCA-000
CAP ASSY., RESERVE TANK
$11.38¢5 688
1
#11
19105-MJR-670
GRILLE, R. RADIATOR
$85.43¢42 713
1
#12
19110-MCA-000
TANK ASSY., RESERVE
$73.06¢36 531
1
#13
19205-MJR-670
GRILLE, L. RADIATOR
$85.43¢42 713
1
#14
19501-MJR-670
HOSE, R. FR. RADIATOR
$55.94¢27 969
1
#15
19502-MJR-670
HOSE, L. FR. RADIATOR
$55.94¢27 969
1
#16
19503-MCA-A60
HOSE, R. RR. RADIATOR
$8.21¢4 106
1
#17
19504-MCA-A60
HOSE, L. RR. RADIATOR
$7.25¢3 625
1
#18
19505-MCA-000
HOSE, RR. RADIATOR
$5.10¢2 550
1
#19
19505-ML3-770
CLAMP, WATER HOSE
$8.58¢4 288
1
#20
19506-MCA-000
JOINT, THREE WAY
$16.35¢8 175
1
#21
19507-MAL-600
CLAMP, WATER HOSE
$7.31¢3 656
1
#22
19509-MM5-003
CLAMP, RADIATOR HOSE
$15.88¢7 938
1
#23
19520-MCA-A60
HOSE, R. DRAIN
$14.29¢7 144
1
#24
19525-MCA-A60
HOSE, L. DRAIN
$18.44¢9 219
1
#25
90522-028-000
WASHER, CHAIN CASE SETTING
$3.65¢1 825
1
#26
91353-MEC-003
O-RING (9.8X1.9)
$4.15¢2 075
1
#27
95002-02100
CLIP, TUBE (B10)
$2.44¢1 219
1
#28
95002-02120
CLIP, TUBE (B12)
$2.39¢1 194
1
#29
95005-55008-10M
BULK HOSE, VACUUM (5.5X8000) (5.3X670)
No Disponible
1
#30
95701-06016-00
BOLT, FLANGE (6X16)
$2.09¢1 044
1
