MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

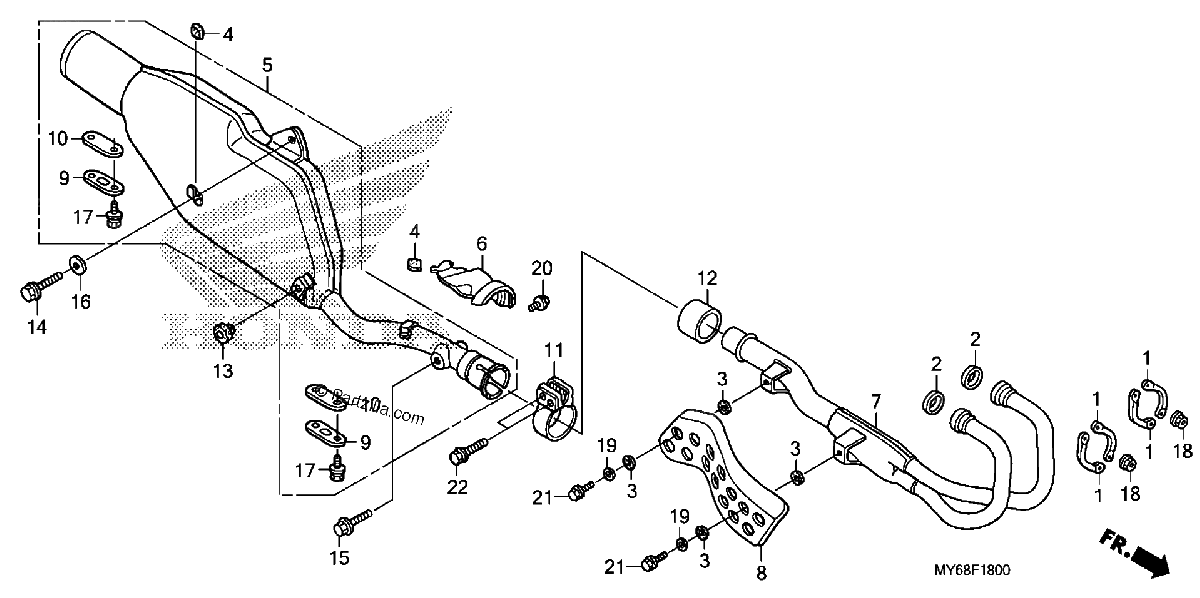

Diagrama de MUFFLER

Repuestos

#001
18231-MN1-670
JOINT, EX. PIPE
$25.18¢12 588
1
#1
18231-MN1-670
JOINT, EX. PIPE
$25.18¢12 588
1
#2
18291-MN5-650
GASKET, EX. PIPE
$4.58¢2 288
1
#002
18291-MN5-650
GASKET, EX. PIPE
$4.58¢2 288
1
#3
18292-KBR-000
GASKET, PROTECTOR
$4.19¢2 094
1
#003
18292-KBR-000
GASKET, PROTECTOR
$4.19¢2 094
1
#4
18293-147-000
RUBBER, PROTECTOR GASKET
$4.89¢2 444
1
#4
18293-GE8-000
RUBBER, PROTECTOR GASKET
$4.89¢2 444
1
#004
18293-GE8-000
RUBBER, PROTECTOR GASKET
$4.89¢2 444
1
#005
18310-MGW-305
MUFFLER (COO)
$1226.79¢613 394
1
#5
18310-MGW-305
MUFFLER (COO)
$1226.79¢613 394
1
#6
18315-MY6-670
PLATE, HEAT GUARD
$62.30¢31 150
1
#006
18315-MY6-670
PLATE, HEAT GUARD
$62.30¢31 150
1
#007
18320-MGW-305
PIPE, EX. (COO)
$506.56¢253 281
1
#7
18320-MGW-305
PIPE, EX. (COO)
$506.56¢253 281
1
#8
18325-MY6-670ZA
PROTECTOR, EX PIPE NH106 (HEATPROOF BLACK)
$88.75¢44 375
1
#008
18325-MY6-670ZA
PROTECTOR, EX PIPE NH106 (HEATPROOF BLACK)
$88.75¢44 375
1
#9
18373-429-010
LID, MUFFLER
$10.70¢5 350
1
#009
18373-429-010
LID, MUFFLER
$10.70¢5 350
1
#010
18374-MN1-880
GASKET, MUFFLER LID
$5.09¢2 544
1
#10
18374-MN1-880
GASKET, MUFFLER LID
$5.09¢2 544
1
#011
18377-MT3-000
BAND, L. MUFFLER
$35.76¢17 881
1
#11
18377-MT3-000
BAND, L. MUFFLER
$35.76¢17 881
1
#12
18392-MJ4-670
GASKET, RR. MUFFLER
$18.65¢9 325
1
#012
18392-MJ4-670
GASKET, RR. MUFFLER
$18.65¢9 325
1
#13
83512-KA4-700
RUBBER, SIDE COVER
$5.55¢2 775
1
#013
83512-KA4-700
RUBBER, SIDE COVER
$5.55¢2 775
1
#14
90154-KZ3-000
BOLT, FLANGE (8X44)
$5.99¢2 994
1
#014
90154-KZ3-000
BOLT, FLANGE (8X44)
$5.99¢2 994
1
#15
90212-MN1-670
BOLT, FLANGE (8X28)
$7.79¢3 894
1
#015
90212-MN1-670
BOLT, FLANGE (8X28)
$7.79¢3 894
1
#016
90509-642-000
WASHER, PLAIN (8.5X22X2.3)
$8.28¢4 138
1
#16
90509-642-000
WASHER, PLAIN (8.5X22X2.3)
$8.28¢4 138
1
#017
93401-06012-07
BOLT-WASHER (6X12)
$2.09¢1 044
1
#17
93401-06012-07
BOLT-WASHER (6X12)
$2.09¢1 044
1
#18
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#018
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#019
94101-06700
WASHER, PLAIN (6MM)
$1.21¢606
1
#19
94101-06700
WASHER, PLAIN (6MM)
$1.21¢606
1
#020
95701-06008-07
BOLT, FLANGE (6X8)
$1.15¢575
1
#20
95701-06008-07
BOLT, FLANGE (6X8)
$1.15¢575
1
#21
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#021
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#022
96300-08040-07
BOLT, FLANGE (8X40)
$2.60¢1 300
1
#22
96300-08040-07
BOLT, FLANGE (8X40)
$2.60¢1 300
1
