SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

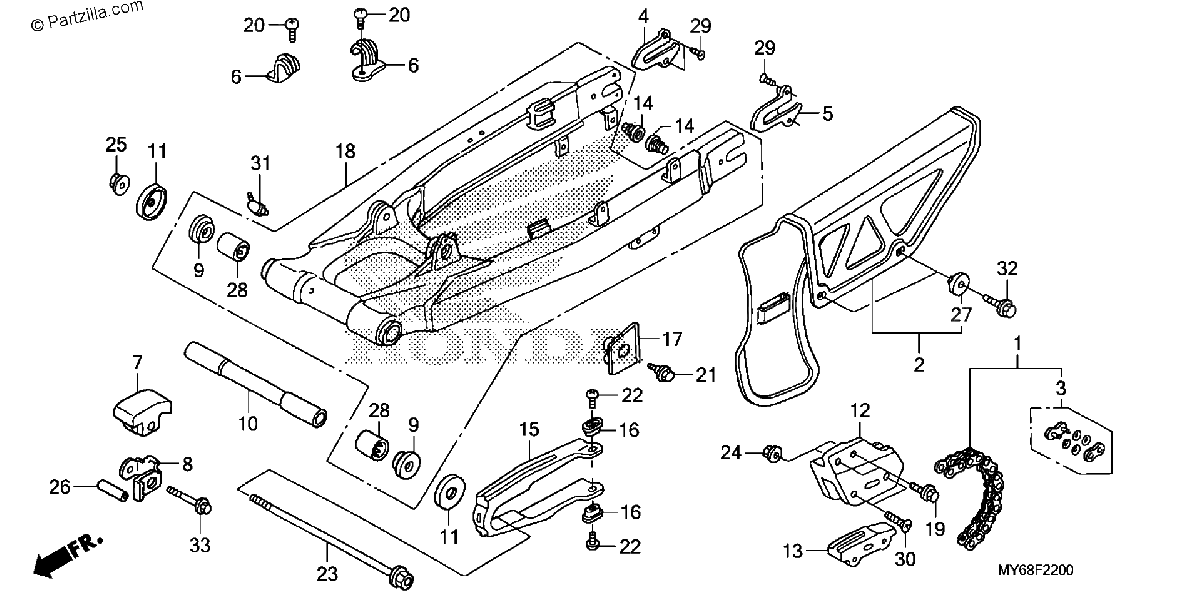

Diagrama de SWINGARM

Repuestos

#1
40540-KV3-405
CHAIN, DRIVE (DID520V8-120ZB) (DAIDO) (STANDARD LINK 120L) (STANDARD LINK 110L)
$212.89¢106 444
1
#001
40540-KV3-405
CHAIN, DRIVE (DID520V8-120ZB) (DAIDO) (STANDARD LINK 120L) (STANDARD LINK 110L)
$212.89¢106 444
1
#001
40540-KV3-406
CHAIN, DRIVE (RK EXCEL) (RK520MOZ6-120LJ-FZ)
$212.85¢106 425
1
#1
40540-KV3-406
CHAIN, DRIVE (RK EXCEL) (RK520MOZ6-120LJ-FZ)
$212.85¢106 425
1
#002
40510-KAE-870
CASE, DRIVE CHAIN
$49.74¢24 869
1
#2
40510-KAE-870
CASE, DRIVE CHAIN
$49.74¢24 869
1
#002
40510-KR6-000
CASE, DRIVE CHAIN
$49.74¢24 869
1
#2
40510-KR6-000
CASE, DRIVE CHAIN
$49.74¢24 869
1
#3
40535-KV3-406
MASTER LINK SET (RK EXCEL)
$5.46¢2 731
1
#003
40535-KV3-406
MASTER LINK SET (RK EXCEL)
$5.46¢2 731
1
#003
40535-KV3-405
MASTER LINK SET (DAIDO)
$7.91¢3 956
1
#3
40535-KV3-405
MASTER LINK SET (DAIDO)
$7.91¢3 956
1
#004
42307-MY6-670
WASHER, R. RR. SWINGARM
$42.53¢21 263
1
#4
42307-MY6-670
WASHER, R. RR. SWINGARM
$42.53¢21 263
1
#005
42308-MY6-670
WASHER, L. RR. SWINGARM
$42.53¢21 263
1
#5
42308-MY6-670
WASHER, L. RR. SWINGARM
$42.53¢21 263
1
#006
43468-KAE-000
GUIDE, RR. BRAKE HOSE
$6.61¢3 306
1
#6
43468-KAE-000
GUIDE, RR. BRAKE HOSE
$6.61¢3 306
1
#7
50911-MN1-670
SLIPPER, CHAIN
$28.46¢14 231
1
#007
50911-MN1-670
SLIPPER, CHAIN
$28.46¢14 231
1
#8
50912-MN1-670
STAY, CHAIN SLIPPER
$19.11¢9 556
1
#008
50912-MN1-670
STAY, CHAIN SLIPPER
$19.11¢9 556
1
#9
52109-430-300
BUSH, PIVOT THRUST
$18.59¢9 294
1
#009
52109-430-300
BUSH, PIVOT THRUST
$18.59¢9 294
1
#010
52141-MN1-670
COLLAR, SWINGARM
$85.76¢42 881
1
#10
52141-MN1-670
COLLAR, SWINGARM
$85.76¢42 881
1
#011
52144-356-005
CAP, SWINGARM DUST SEAL (NOK)
$20.25¢10 125
1
#11
52144-356-005
CAP, SWINGARM DUST SEAL (NOK)
$20.25¢10 125
1
#12
52146-MN1-671
GUIDE, CHAIN
$39.52¢19 763
1
#012
52146-MN1-671
GUIDE, CHAIN
$39.52¢19 763
1
#013
52147-MN1-670
SLIDER, CHAIN GUIDE
$16.35¢8 175
1
#13
52147-MN1-670
SLIDER, CHAIN GUIDE
$16.35¢8 175
1
#14
52156-KV6-000
PIN, CHAIN ADJUSTER
$14.57¢7 288
1
#014
52156-KV6-000
PIN, CHAIN ADJUSTER
$14.57¢7 288
1
#015
52170-MN1-681
SLIDER, CHAIN
$66.96¢33 481
1
#15
52170-MN1-681
SLIDER, CHAIN
$66.96¢33 481
1
#016
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#16
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#017
52180-MY6-670
GUARD, CHAIN
$59.69¢29 844
1
#17
52180-MY6-670
GUARD, CHAIN
$59.69¢29 844
1
#18
52200-MY6-305
SWINGARM SET
$1300.41¢650 206
1
#018
52200-MY6-305
SWINGARM SET
$1300.41¢650 206
1
#019
90103-MY6-670
BOLT, FLANGE (6X16)
$4.53¢2 263
1
#19
90103-MY6-670
BOLT, FLANGE (6X16)
$4.53¢2 263
1
#020
90104-ML7-920
SCREW, PAN (5X10)
$3.65¢1 825
1
#20
90104-ML7-920
SCREW, PAN (5X10)
$3.65¢1 825
1
#21
90113-MY6-670
BOLT, FLANGE (6X10)
$5.29¢2 644
1
#021
90113-MY6-670
BOLT, FLANGE (6X10)
$5.29¢2 644
1
#022
90115-KV3-700
SCREW, PAN (5X8)
$3.36¢1 681
1
#22
90115-KV3-700
SCREW, PAN (5X8)
$3.36¢1 681
1
#23
90121-KK3-830
BOLT, SWINGARM PIVOT
$44.77¢22 388
1
#023
90121-KK3-830
BOLT, SWINGARM PIVOT
$44.77¢22 388
1
#024
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#24
90301-473-003
NUT, U (6MM) (FUSE RASHI)
$4.94¢2 469
1
#25
90305-GE8-003
NUT, U (14MM)
$4.68¢2 338
1
#025
90305-GE8-003
NUT, U (14MM)
$4.68¢2 338
1
#26
90501-MN1-680
COLLAR, CHAIN SLIPPER
$4.45¢2 225
1
#026
90501-MN1-680
COLLAR, CHAIN SLIPPER
$4.45¢2 225
1
#027
90513-405-000
WASHER (6X9)
$2.82¢1 412
1
#27
90513-405-000
WASHER (6X9)
$2.82¢1 412
1
#27
90513-428-900
WASHER (6X9)
$2.82¢1 412
1
#027
90513-428-900
WASHER (6X9)
$2.82¢1 412
1
#028
91070-GC4-601
BEARING, NEEDLE (20X26X20) (NTN)
$28.71¢14 356
1
#28
91070-GC4-601
BEARING, NEEDLE (20X26X20) (NTN)
$28.71¢14 356
1
#29
93600-05010-0A
SCREW, FLAT (5X10)
$1.00¢500
1
#029
93600-05010-0A
SCREW, FLAT (5X10)
$1.00¢500
1
#030
93600-06045-0A
SCREW, FLAT (6X45)
$1.21¢606
1
#30
93600-06045-0A
SCREW, FLAT (6X45)
$1.21¢606
1
#031
96201-80000
NIPPLE, GREASE (B.T6S)
$3.30¢1 650
1
#31
96201-80000
NIPPLE, GREASE (B.T6S)
$3.30¢1 650
1
#032
96300-06012-07
BOLT, FLANGE (6X12)
$1.66¢831
1
#32
96300-06012-07
BOLT, FLANGE (6X12)
$1.66¢831
1
#33
96400-06032-00
BOLT, FLANGE (6X32)
$2.31¢1 156
1
#033
96400-06032-00
BOLT, FLANGE (6X32)
$2.31¢1 156
1
