TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

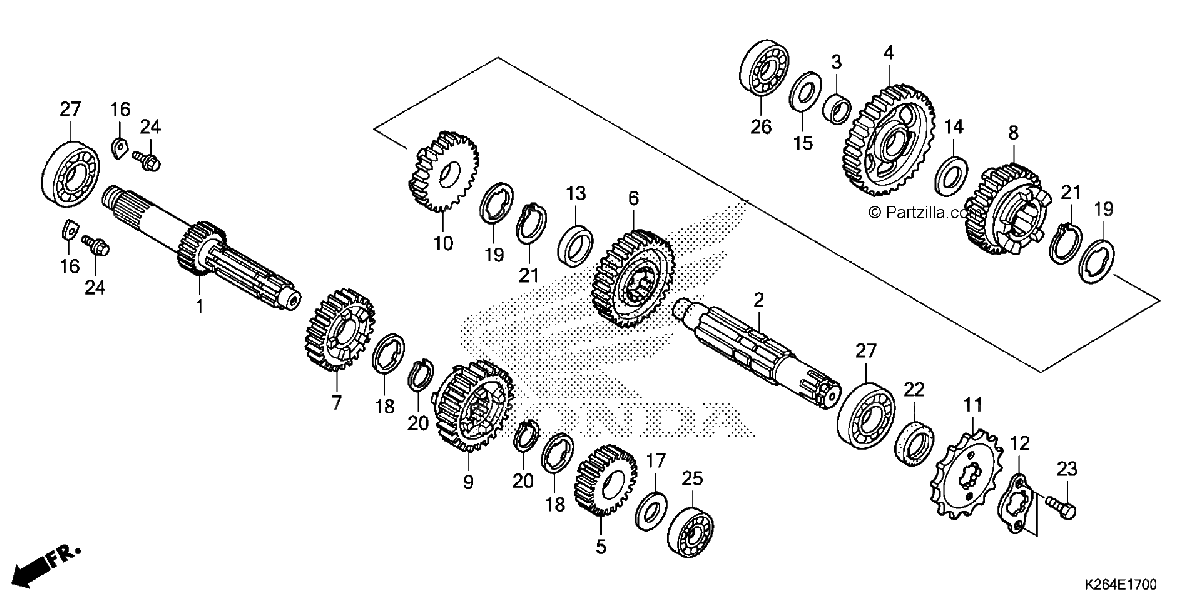

Diagrama de TRANSMISSION

Repuestos

#1
23211-KPH-900
MAINSHAFT (14T)
$29.90¢14 950
1
#2
23221-KPH-900
COUNTERSHAFT
$28.01¢14 007
1
#3
23415-KPH-900
BUSH (15MM)
$6.14¢3 070
1
#4
23421-KPH-900
GEAR, COUNTERSHAFT FIRST (35T)
$20.04¢10 022
1
#5
23431-KPH-700
GEAR, MAINSHAFT SECOND (20T)
$25.33¢12 667
1
#6
23441-KPH-900
GEAR, COUNTERSHAFT SECOND (31T)
$13.56¢6 779
1
#7
23451-KPH-700
GEAR, MAINSHAFT THIRD (20T)
$26.83¢13 415
1
#8
23461-KPH-900
GEAR, COUNTERSHAFT THIRD (23T)
$24.98¢12 489
1
#9
23471-KPH-700
GEAR, MAINSHAFT FOURTH (26T)
$19.63¢9 815
1
#10
23481-KPH-700
GEAR, COUNTERSHAFT FOURTH (24T)
$30.49¢15 243
1
#11
23801-K26-900
SPROCKET, DRIVE (15T)
$20.34¢10 172
1
#12
23802-GN5-910
PLATE, FIXING
$5.49¢2 743
1
#13
23911-KPG-T00
COLLAR (5.1MM)
$1.66¢828
1
#14
90412-187-000
WASHER, THRUST (15MM)
$2.54¢1 271
1
#15
90412-KPH-900
WASHER, SPECIAL (12X23)
$0.83¢414
1
#16
90441-KRM-840
PLATE, BEARING HOLDER
$0.71¢357
1
#17
90452-KGH-900
WASHER, SPECIAL (12MM)
$3.13¢1 564
1
#18
90461-115-000
WASHER, SPLINE (17MM)
$3.15¢1 576
1
#19
90461-GB4-770
WASHER, SPLINE (20X1.2)
$4.01¢2 007
1
#20
90601-001-000
CIRCLIP, OUTER (17MM)
$1.71¢857
1
#21
90605-200-000
SET-RING (20MM)
$3.36¢1 679
1
#22
91204-KPH-901
OIL SEAL (17X30X5) (ARAI)
$1.26¢633
1
#23
92101-06010-0A
BOLT, HEX. (6X10)
$1.66¢828
1
#24
95701-06014-00
BOLT, FLANGE (6X14)
$1.13¢564
1
#25
96100-60010-00
BEARING, RADIAL BALL (6001)
$23.86¢11 931
1
#26
96100-62010-00
BEARING, RADIAL BALL (6201)
$9.02¢4 508
1
#27
96100-62030-00
BEARING, RADIAL BALL (6203)
$9.37¢4 686
1
