FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

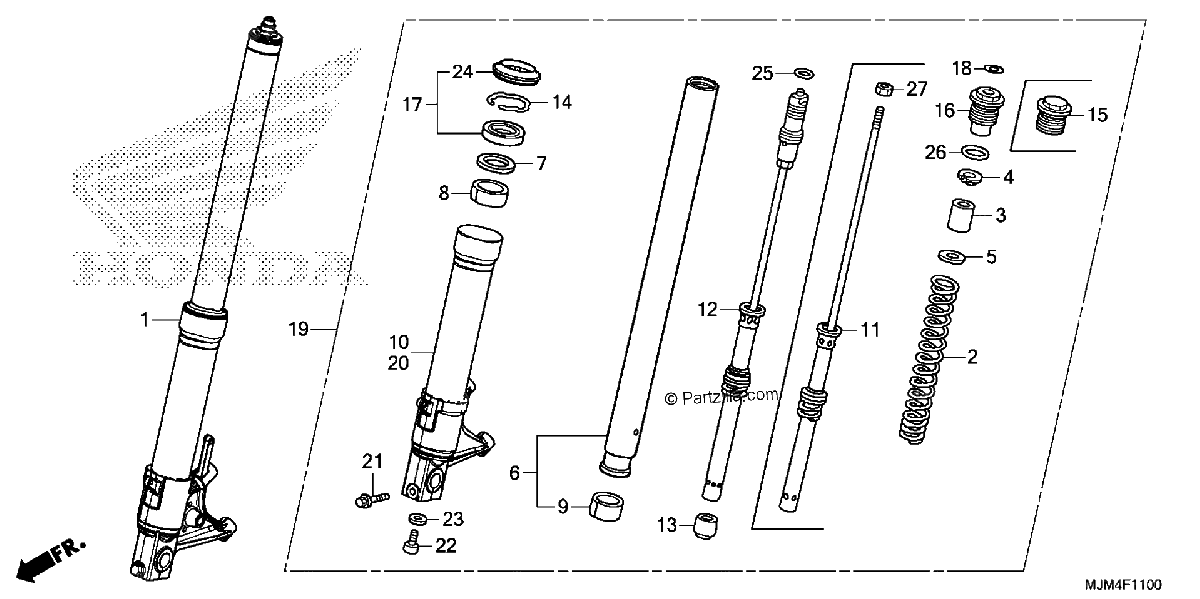

Diagrama de FRONT FORK

Repuestos

#1
51400-MJM-306
FORK ASSY., R. FR. (COO)
$1202.09¢601 044
1
#2
51401-MJM-D11
SPRING, FR. FORK
$96.80¢48 400
1
#3
51402-MS2-003
COLLAR, SPRING
$22.93¢11 463
1
#4
51404-MR7-003
SEAT, SPRING
$14.52¢7 262
1
#5
51405-KA4-711
SEAT, SPRING
$7.55¢3 775
1
#6
51410-MJM-D01
PIPE, FR. FORK
$469.52¢234 763
1
#7
51412-KA4-711
RING, BACK-UP
$11.29¢5 644
1
#8
51414-MCF-003
BUSH, GUIDE
$12.49¢6 244
1
#9
51415-MBW-E11
BUSH, SLIDER
$12.04¢6 019
1
#10
51420-MJM-D11
CASE, R. (LOWER)
$584.16¢292 081
1
#12
51430-MJM-D11
DAMPER, FR.
$400.49¢200 244
1
#13
51432-MS2-003
PIECE, OIL LOCK
$41.06¢20 531
1
#14
51447-KA4-711
RING, OIL SEAL STOPPER (SHOWA)
$5.47¢2 738
1
#16
51454-MJM-D11
BOLT, FR. FORK
$79.13¢39 563
1
#17
51490-MFL-003
SEAL SET, FR. FORK
$23.21¢11 606
1
#18
51496-MR7-003
LABEL
$4.20¢2 100
1
#19
51500-MJM-306
FORK ASSY., L. FR. (COO)
$1253.61¢626 806
1
#20
51520-MJM-D01
CASE, L. (LOWER)
$610.38¢305 188
1
#21
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#22
90116-383-721
BOLT, SOCKET (8X27)
$6.21¢3 106
1
#23
90544-283-000
WASHER, SPECIAL (8MM) (SHOWA)
$3.65¢1 825
1
#24
91254-MEJ-003
DUST SEAL
$15.00¢7 500
1
#25
91311-MR7-003
O-RING (13.8X2.4)
$2.91¢1 456
1
#25
91311-PH7-003
O-RING (13.8X2.4) (NOK)
$2.91¢1 456
1
#26
91356-KA4-711
O-RING (35.2X2.4)
$4.56¢2 281
1
