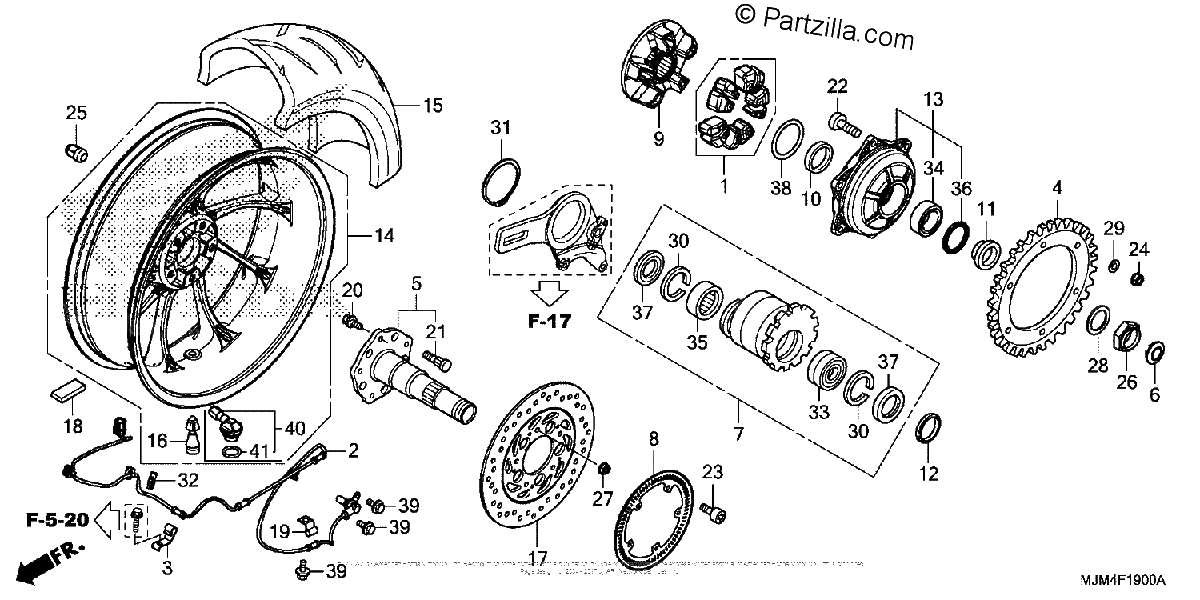

REAR WHEEL
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER SET, WHEEL
$42.24¢21 119
#2
SENSOR, RR. WHEEL SPEED
$249.80¢124 900
#3
CLAMP, SPEED SENSOR WIRE
$7.89¢3 944
#4
SPROCKET, FINAL DRIVEN (43T)
$131.56¢65 781
#5
AXLE, RR.
$343.84¢171 919
#6
CAP, RR. WHEEL
$8.81¢4 406
#7
HOLDER, BEARING
$381.38¢190 688
#8
RING, RR. PULSER
$180.86¢90 431
#9
FLANGE, FINAL DRIVEN
$183.43¢91 713
#10
COLLAR, RR. AXLE DISTANCE
$25.45¢12 725
#11
COLLAR, RR. AXLE SIDE
$28.17¢14 087
#12
COLLAR, RR. AXLE
$29.04¢14 519
#13
HUB ASSY., SPROCKET
$254.10¢127 050
#14
WHEEL SUB-ASSY., RR. (TYPE1) (COO)
$1095.55¢547 775
#15
TIRE, RR. (180/55ZR17) (M/C 73W) (BS)
$715.29¢357 644
#15
TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)
$417.41¢208 706
#16
VALVE, RIM (BS)
$14.79¢7 394
#16
VALVE, RIM (DUNLOP)
$14.79¢7 394
#17
DISK, RR. BRAKE
$418.84¢209 419
#18
WEIGHT, BALANCE (10G)
$5.67¢2 838
#18
WEIGHT, BALANCE (15G)
$6.76¢3 381
#18
WEIGHT, BALANCE (20G)
$6.76¢3 381
#19
CLAMP A, SENSOR CORD
$4.55¢2 275
#20
BOLT, FLANGE (8X20)
$2.48¢1 238
#21
BOLT, WHEEL (NAGOYA RASHI)
$3.47¢1 737
#21
BOLT, WHEEL (ROCKNEL FASTENER)
$3.47¢1 737
#22
BOLT (10X30)
$3.93¢1 963
#23
BOLT, TORX (5X7)
$3.91¢1 956
#24
NUT, U (10MM)
$5.25¢2 625
#25
NUT, WHEEL (FUSE RASHI)
$13.71¢6 856
#26
NUT, LOCK (35MM)
$14.94¢7 469
#27
NUT, FLANGE (M8X1.25) (SELF-LOCK)
$4.06¢2 031
#27
NUT, FLANGE (8MM)
$4.06¢2 031
#28
WASHER, CONICAL SPRING (35)
$9.94¢4 969
#29
WASHER (10MM)
$3.61¢1 806
#30
CIRCLIP (INNER) (62MM)
$7.70¢3 850
#31
CIRCLIP (OUTER) (75MM)
$13.43¢6 713
#32
CLIP, CABLE (14MM)
$2.27¢1 138
#33
BEARING, RADIAL BALL (6908LU)
$55.21¢27 606
#34
BEARING, RADIAL BALL (35X55X10)
$103.29¢51 644
#35
BEARING, RR. AXLE NEEDLE
$49.25¢24 625
#36
DUST SEAL (45X55X5) (ARAI)
$10.13¢5 063
#37
DUST SEAL (50X62X5)
$14.84¢7 419
#38
O-RING, SPROCKET HUB
$3.36¢1 681
#39
BOLT, FLANGE (6X10)
$2.09¢1 044
