STARTING CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

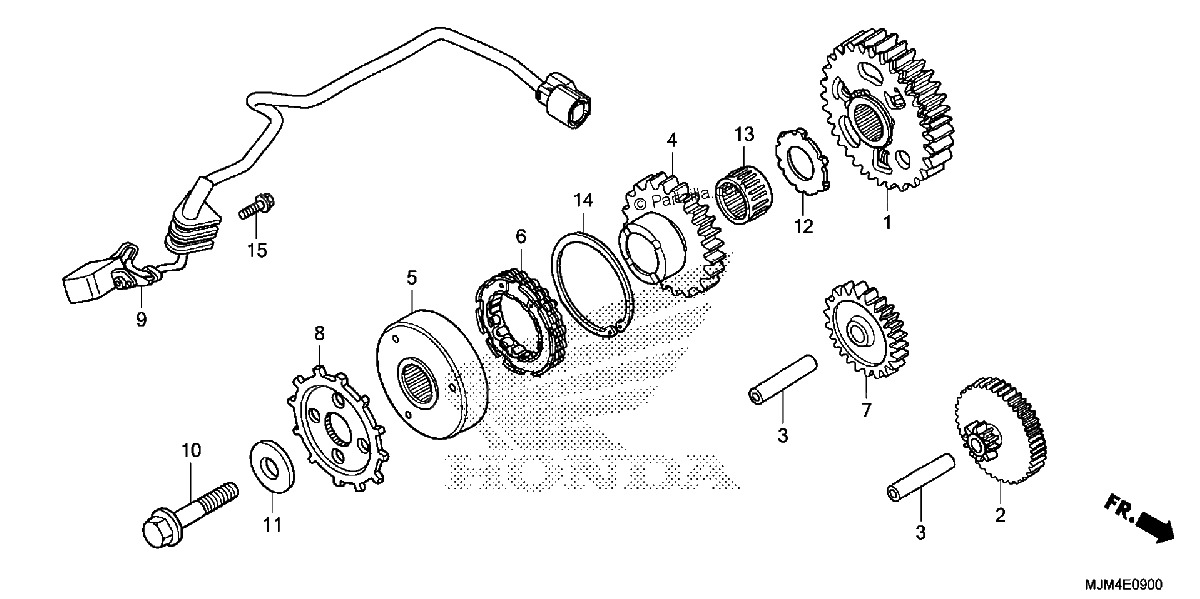

Diagrama de STARTING CLUTCH

Repuestos

#1
23110-MCW-000
GEAR, PRIMARY DRIVE (33T)
$310.32¢155 163
1
#2
28101-MJM-D00
GEAR, STARTER REDUCTION (60T/10T)
$108.38¢54 188
1
#3
28102-ML7-000
PIN (10X36.5)
$10.13¢5 063
1
#4
28110-MBG-000
GEAR, STARTING CLUTCH (39T)
$231.66¢115 831
1
#5
28115-MCW-000
FLANGE, STARTING CLUTCH
$119.26¢59 631
1
#6
28125-MW4-003
CLUTCH, ONE-WAY
$126.27¢63 137
1
#7
28131-MJM-D00
GEAR, STARTER IDLE (29T)
$66.47¢33 238
1
#8
30291-MBG-770
ROTOR, PULSE
$21.99¢10 994
1
#9
30300-MJM-D01
GENERATOR ASSY., PULSE
$132.69¢66 344
1
#10
90023-MV9-670
BOLT, FLANGE (10MM)
$13.09¢6 544
1
#11
90405-KT7-000
WASHER (10.5X27)
$6.06¢3 031
1
#12
90509-MCW-000
GUIDE, PRIMARY DRIVE GEAR
$8.44¢4 219
1
#13
91022-MW4-003
BEARING, NEEDLE (30X35X22.8)
$47.54¢23 769
1
#14
94520-63000
CIRCLIP (INNER) (63MM)
$4.45¢2 225
1
#15
96001-06016-00
BOLT, FLANGE (6X16)
$1.35¢675
1
