THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

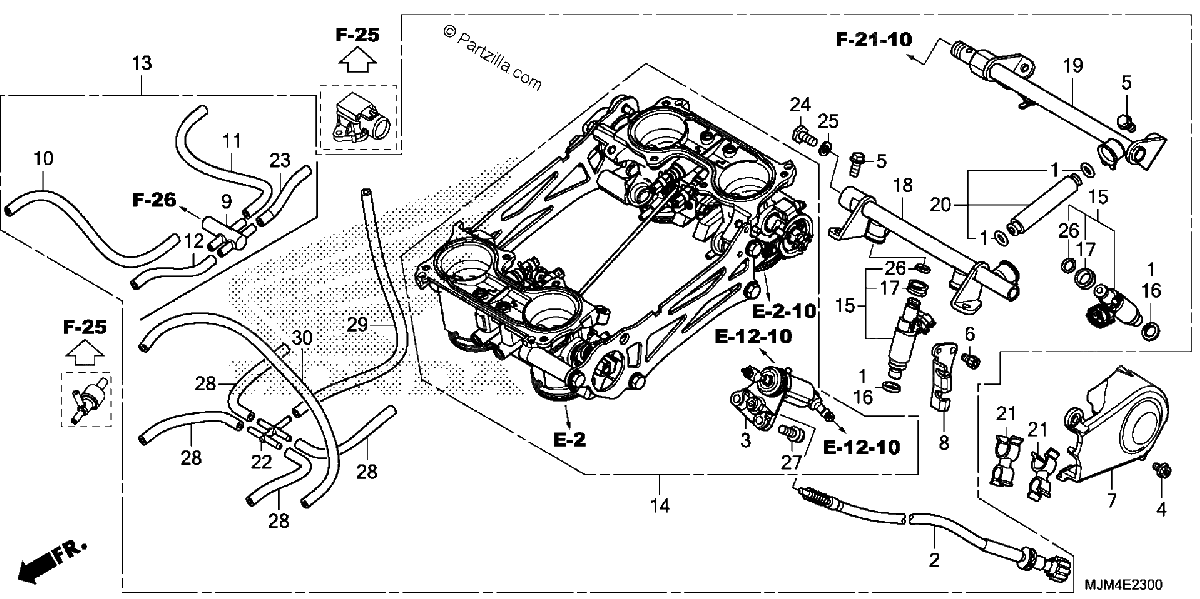

Diagrama de THROTTLE BODY

Repuestos

#1
16010-MGY-641
GASKET SET
$14.52¢7 262
1
#2
16029-MGY-641
SCREW SET, STOP
$57.75¢28 875
1
#3
16044-MCW-003
WAX ASSY.
$85.88¢42 938
1
#4
16080-HP1-601
BOLT, COVER
$4.94¢2 469
1
#5
16080-MCJ-003
BOLT, FLANGE (6X12)
$1.99¢994
1
#6
16081-MCW-003
BOLT, SOCKET (5X8)
$3.17¢1 588
1
#7
16150-MJM-D00
COVER, THROTTLE
$14.33¢7 163
1
#8
16169-MJM-D01
STAY, WIRE
$17.73¢8 863
1
#9
16180-ME5-761
T-JOINT
$40.74¢20 369
1
#10
16197-MBW-L11
TUBE
$7.25¢3 625
1
#11
16198-MCW-L01
TUBE
$6.29¢3 144
1
#12
16199-MCW-L01
TUBE
$4.42¢2 213
1
#13
16400-MJM-A01
BODY ASSY., THROTTLE (GQ3ZA A)
$2929.97¢1 464 988
1
#14
16401-MJM-A01
BODY ASSY., THROTTLE
$2594.63¢1 297 313
1
#15
16450-MEL-003
INJECTOR ASSY., FUEL
$191.90¢95 950
1
#16
16472-MCW-000
SEAL RING, INJECTOR
$3.08¢1 538
1
#17
16473-P7A-004
CUSHION RING, INJECTOR
$8.35¢4 175
1
#18
16610-MGY-641
PIPE, FR. FUEL
$87.19¢43 594
1
#19
16620-MCW-003
PIPE, RR. FUEL
$84.26¢42 131
1
#20
16630-MCW-003
PIPE SET, FUEL
$40.25¢20 125
1
#21
16965-VM0-771
CLAMP, HOSE
$3.65¢1 825
1
#22
17201-MCJ-003
JOINT, FIVE-WAY
$10.08¢5 038
1
#23
19199-MCW-L01
TUBE
$3.36¢1 681
1
#24
90009-PP4-E01
BOLT, SEALING (6MM)
$7.94¢3 969
1
#25
90430-PD6-003
WASHER, SEALING (6MM)
$4.85¢2 425
1
#26
91301-P7A-004
O-RING (7.8X1.9)
$4.07¢2 037
1
#27
93892-06020-00
SCREW-WASHER (6X20)
$1.11¢556
1
#27
93892-06020-10
SCREW-WASHER (6X20)
$1.11¢556
1
#28
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$11.33¢5 663
1
#29
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$11.33¢5 663
1
#30
95005-35001-20M
BULK HOSE, VACUUM (3.5X1000) (3.5X90)
$11.33¢5 663
1
