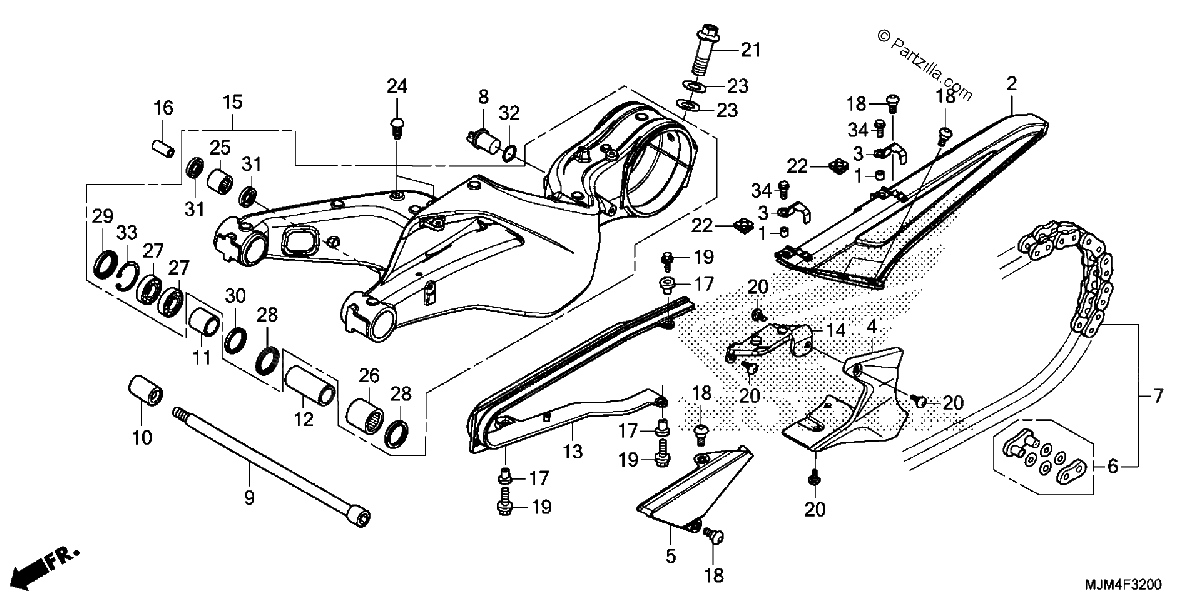

SWINGARM
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
COLLAR, ADJUSTING COVER
$12.25¢6 125
#2
CASE A, DRIVE CHAIN
$62.60¢31 300
#3
CLAMP, RR. BRAKE PIPE
$6.38¢3 188
#4
GUIDE, RR. BRAKE AIR
$41.19¢20 594
#5
CASE B, DRIVE CHAIN
$27.60¢13 800
#6
MASTER LINK SET (DAIDO)
$17.13¢8 563
#6
MASTER LINK SET (RK EXCEL)
$16.85¢8 425
#7
CHAIN, DRIVE (525ROZ6-120LJFZ) (RK EXCEL)
$294.88¢147 438
#7
CHAIN, DRIVE (DID525HV3-120ZB) (DAIDO)
$331.44¢165 719
#8
STOPPER, TORQUE LINK
$15.65¢7 825
#9
BOLT, SWINGARM PIVOT
$73.36¢36 681
#10
NUT, SWINGARM PIVOT
$21.86¢10 931
#11
COLLAR, R. PIVOT (INNER)
$27.41¢13 706
#12
COLLAR, L. PIVOT DISTANCE
$33.36¢16 681
#13
SLIDER, CHAIN
$98.20¢49 100
#14
GUIDE, CHAIN
$55.00¢27 500
#15
SWINGARM SUB-ASSY.
$1516.56¢758 281
#16
COLLAR, CUSHION CONNECTING ROD
$13.66¢6 831
#17
COLLAR
$4.01¢2 006
#18
SCREW, SPECIAL (5X14)
$3.83¢1 913
#19
BOLT, FLANGE (6X18)
$3.65¢1 825
#20
SCREW, SPECIAL (5X12)
$2.24¢1 119
#21
BOLT, FLANGE (16X51)
$20.45¢10 225
#22
NUT, CLIP (6MM)
$3.08¢1 538
#23
WASHER, PLAIN (16MM)
$8.43¢4 213
#24
PLUG, HOLE
$1.68¢838
#25
BEARING, NEEDLE (KOYO)
$28.90¢14 450
#26
BEARING, NEEDLE
$29.82¢14 913
#27
BEARING, RADIAL BALL (20X37X9)
$21.06¢10 531
#28
DUST SEAL (28X37X4)
$7.70¢3 850
#29
DUST SEAL (27X37X5)
$5.91¢2 956
#30
DUST SEAL (27X34X4)
$9.45¢4 725
#31
DUST SEAL (17X24X5) (ARAI)
$7.51¢3 756
#32
O-RING (21.8X2.4)
$2.13¢1 063
#33
CIRCLIP, INNER (37MM)
$2.81¢1 406
#34
BOLT, FLANGE (6X14)
$1.54¢769
