FINAL DRIVEN GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

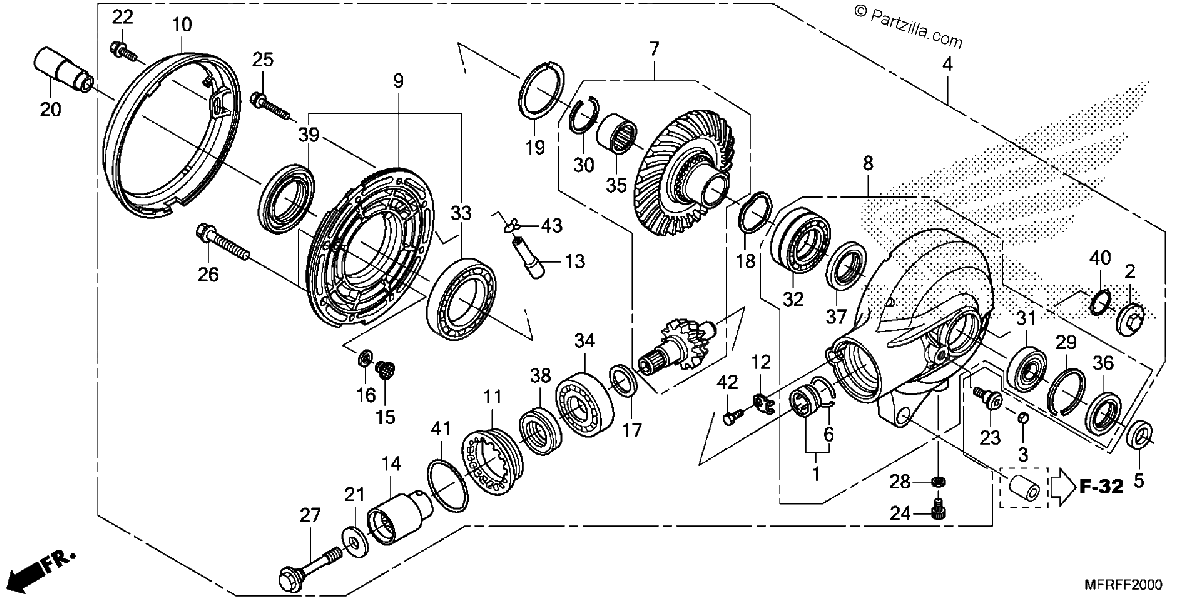

Diagrama de FINAL DRIVEN GEAR

Repuestos

#1
06910-MFR-670
BEARING SET, NEEDLE
$30.20¢15 100
1
#2
12361-035-000
CAP, TAPPET ADJUSTING HOLE
$12.51¢6 256
1
#2
12361-300-000
CAP, VALVE ADJ.
No Disponible
1
#2
12361-371-980
CAP, VALVE ADJ.
No Disponible
1
#3
12392-MJ0-000
PLUG, HEX. (6MM)
$5.47¢2 738
1
#4
41300-MFR-D20
GEAR ASSY., FINAL
$2603.50¢1 301 750
1
#5
41302-MFR-670
COLLAR, GEAR CASE SIDE
$10.61¢5 306
1
#6
41305-MB4-770
RING, STOPPER
$7.24¢3 619
1
#7
41310-MFR-670
GEAR SET, FINAL
$515.19¢257 594
1
#8
41311-MFR-D20
CASE SUB-ASSY., FINAL GEAR
$1467.69¢733 844
1
#9
41320-MFR-670
COVER SUB-ASSY., FINAL GEAR
$271.89¢135 944
1
#10
41324-MFR-680
PLATE, DUST GUARD
$106.95¢53 475
1
#11
41331-MN5-000
RETAINER, BEARING
$148.49¢74 244
1
#12
41332-415-000
LOCK A, BEARING ADJUSTING (SINGLE TAB)
$3.24¢1 619
1
#12
41333-415-000
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
$3.24¢1 619
1
#13
41391-MFR-670
TUBE, FINAL GEAR BREATHER
$5.20¢2 600
1
#14
41410-ME9-770
JOINT, PINION
$188.38¢94 188
1
#15
41436-MB0-310
PIN, RING GEAR STOPPER
$41.09¢20 544
1
#16
41437-MB0-310
SHIM A, STOPPER PIN (0.10)
$6.81¢3 406
1
#16
41438-MB0-310
SHIM B, STOPPER PIN (0.15)
$6.23¢3 113
1
#17
41450-MG9-000
SHIM A, PINION GEAR (1.32)
$9.24¢4 619
1
#17
41451-MG9-000
SHIM B, PINION GEAR (1.38)
$9.24¢4 619
1
#17
41452-MG9-000
SHIM C, PINION GEAR (1.44)
$9.24¢4 619
1
#17
41453-MG9-000
SHIM D, PINION GEAR (1.50)
$9.24¢4 619
1
#17
41454-MG9-000
SHIM E, PINION GEAR (1.56)
$9.24¢4 619
1
#17
41455-MG9-000
SHIM F, PINION GEAR (1.62)
$9.24¢4 619
1
#17
41456-MG9-000
SHIM G, PINION GEAR (1.68)
$9.24¢4 619
1
#18
41510-MFR-670
WASHER, SPECIAL (46X54)
$13.01¢6 506
1
#19
41538-MG9-000
SPACER I, RING GEAR (2.30)
$16.38¢8 188
1
#19
41537-MG9-000
SPACER H, RING GEAR (2.24)
$16.38¢8 188
1
#19
41535-MG9-000
SPACER F, RING GEAR (2.12)
$15.60¢7 800
1
#19
41536-MG9-000
SPACER G, RING GEAR (2.18)
$15.60¢7 800
1
#19
41532-MG9-000
SPACER C, RING GEAR (1.94)
$16.38¢8 188
1
#19
41534-MG9-000
SPACER E, RING GEAR (2.06)
$16.15¢8 075
1
#19
41533-MG9-000
SPACER D, RING GEAR (2.00)
$16.38¢8 188
1
#19
41531-MG9-000
SPACER B, RING GEAR (1.88)
$16.38¢8 188
1
#19
41530-MG9-000
SPACER A, RING GEAR (1.82)
$16.38¢8 188
1
#20
42625-MFR-670
COLLAR B, RR. AXLE DISTANCE
$98.75¢49 375
1
#21
44313-HP2-670
WASHER, FR. HUB
$1.86¢931
1
#22
90013-883-000
BOLT, FLANGE (6X12) (CT200)
$1.90¢950
1
#23
90107-MFR-670
BOLT, SOCKET (8X16)
$11.23¢5 613
1
#24
90109-ME5-770
BOLT, SOCKET (8X11)
$6.95¢3 475
1
#25
90133-MCA-000
BOLT, FLANGE (8X30)
$1.01¢506
1
#26
90134-MCA-000
BOLT, FLANGE (10X38)
$3.20¢1 600
1
#27
90138-MFR-670
BOLT, PINION JOINT
$24.04¢12 019
1
#28
90471-580-000
GASKET (8MM)
$3.65¢1 825
1
#29
90651-MFR-670
CIRCLIP (INNER) (52MM)
$4.17¢2 088
1
#30
90652-MFR-670
CIRCLIP (INNER) (45MM)
$4.22¢2 113
1
#31
91051-MFR-671
BEARING, RADIAL BALL (30X52X9)
$27.95¢13 975
1
#32
91052-MFR-671
BEARING, RADIAL BALL (45X68X19)
$75.60¢37 800
1
#33
91053-MCH-003
BEARING, RADIAL BALL (65X100X14)
$64.57¢32 287
1
#34
91061-MT3-003
BEARING, RADIAL BALL (QJ3/28V1)
$78.80¢39 400
1
#35
91071-MFR-671
BEARING, NEEDLE (35X45X24)
$32.69¢16 344
1
#36
91251-MFR-671
DUST SEAL (38X52X5)
$12.40¢6 200
1
#37
91252-MFR-671
OIL SEAL (45X55X6)
$14.51¢7 256
1
#38
91262-MCH-003
OIL SEAL (39X56X7)
$11.44¢5 719
1
#39
91265-MCH-003
OIL SEAL (65X85X7)
$11.21¢5 606
1
#40
91302-001-020
O-RING (30.8MM)
$4.54¢2 269
1
#41
91359-MG9-003
O-RING (64.5X3.5) (ARAI)
$5.47¢2 738
1
#42
92101-06012-0A
BOLT, HEX. (6X12)
$1.82¢913
1
#43
95002-02079
CLIP, TUBE (B7)
$1.54¢769
1
