THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

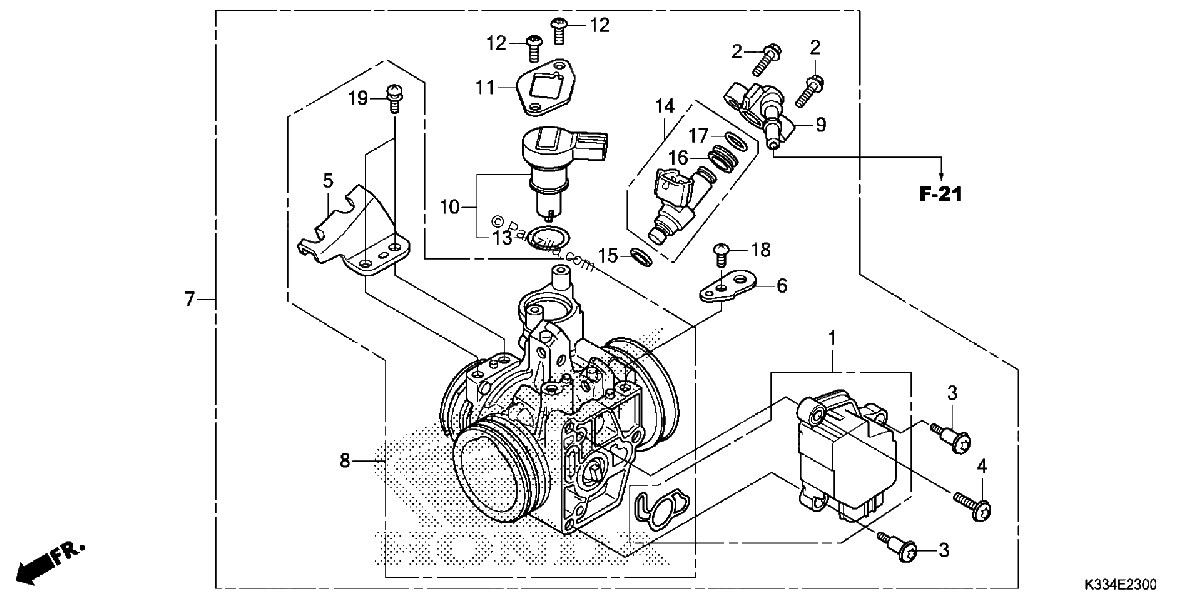

Diagrama de THROTTLE BODY

Repuestos

#001
16060-KYJ-901
SENSOR SET
$81.06¢40 531
1
#1
16060-KYJ-901
SENSOR SET
$81.06¢40 531
1
#2
16080-KPH-701
BOLT, FLANGE (5X20)
$5.46¢2 731
1
#002
16080-KPH-701
BOLT, FLANGE (5X20)
$5.46¢2 731
1
#003
16081-KYJ-901
SCREW, TORX (5X8.7)
$3.52¢1 763
1
#3
16081-KYJ-901
SCREW, TORX (5X8.7)
$3.52¢1 763
1
#4
16082-KYJ-901
SCREW, TORX (5X17)
$2.79¢1 394
1
#004
16082-KYJ-901
SCREW, TORX (5X17)
$2.79¢1 394
1
#5
16169-MFR-671
STAY, WIRE
$22.03¢11 013
1
#005
16169-MFR-671
STAY, WIRE
$22.03¢11 013
1
#006
16196-HP6-A01
STAY, HARNESS CLAMP
$12.11¢6 056
1
#6
16196-HP6-A01
STAY, HARNESS CLAMP
$12.11¢6 056
1
#7
16400-KYJ-902
BODY Assembly., THROTTLE (GQ9JA B)
$350.96¢175 481
1
#007
16400-KYJ-902
BODY Assembly., THROTTLE (GQ9JA B)
$350.96¢175 481
1
#008
16410-KYJ-902
BODY SET
$148.65¢74 325
1
#8
16410-KYJ-902
BODY SET
$148.65¢74 325
1
#9
16422-HP5-602
JOINT, INJECTOR
$6.32¢3 162
1
#009
16422-HP5-602
JOINT, INJECTOR
$6.32¢3 162
1
#10
16430-KYJ-901
VALVE SET, IDLE AIR CONTROL
$182.55¢91 275
1
#010
16430-KYJ-901
VALVE SET, IDLE AIR CONTROL
$182.55¢91 275
1
#011
16432-HP5-601
PLATE, IDLE AIR CONTROL VALVE
$4.28¢2 138
1
#11
16432-HP5-601
PLATE, IDLE AIR CONTROL VALVE
$4.28¢2 138
1
#12
16433-HN8-A61
SCREW, TORX
$0.47¢238
1
#012
16433-HN8-A61
SCREW, TORX
$0.47¢238
1
#13
16435-HN8-A61
O-RING (17.8X1.9)
$10.36¢5 181
1
#013
16435-HN8-A61
O-RING (17.8X1.9)
$10.36¢5 181
1
#014
16450-MFE-641
INJECTOR Assembly., FUEL
$200.63¢100 313
1
#14
16450-MFE-641
INJECTOR Assembly., FUEL
$200.63¢100 313
1
#015
16472-MCW-000
SEAL RING, INJECTOR
$3.08¢1 538
1
#15
16472-MCW-000
SEAL RING, INJECTOR
$3.08¢1 538
1
#16
16473-P7A-004
CUSHION RING, INJECTOR
$8.35¢4 175
1
#016
16473-P7A-004
CUSHION RING, INJECTOR
$8.35¢4 175
1
#017
91301-P7A-004
O-RING (7.8X1.9)
$4.07¢2 037
1
#17
91301-P7A-004
O-RING (7.8X1.9)
$4.07¢2 037
1
#018
93500-05010-08
SCREW, PAN (5X10)
$1.16¢581
1
#18
93500-05010-08
SCREW, PAN (5X10)
$1.16¢581
1
#018
93500-05010-0H
SCREW, PAN (5X10)
$1.16¢581
1
#18
93500-05010-0H
SCREW, PAN (5X10)
$1.16¢581
1
#18
93500-05010-1H
SCREW, PAN (5X10)
$1.16¢581
1
#018
93500-05010-1H
SCREW, PAN (5X10)
$1.16¢581
1
#019
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#19
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#019
93892-05012-18
SCREW-WASHER (5X12)
$1.47¢737
1
#19
93892-05012-18
SCREW-WASHER (5X12)
$1.47¢737
1
