HEADLIGHT 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

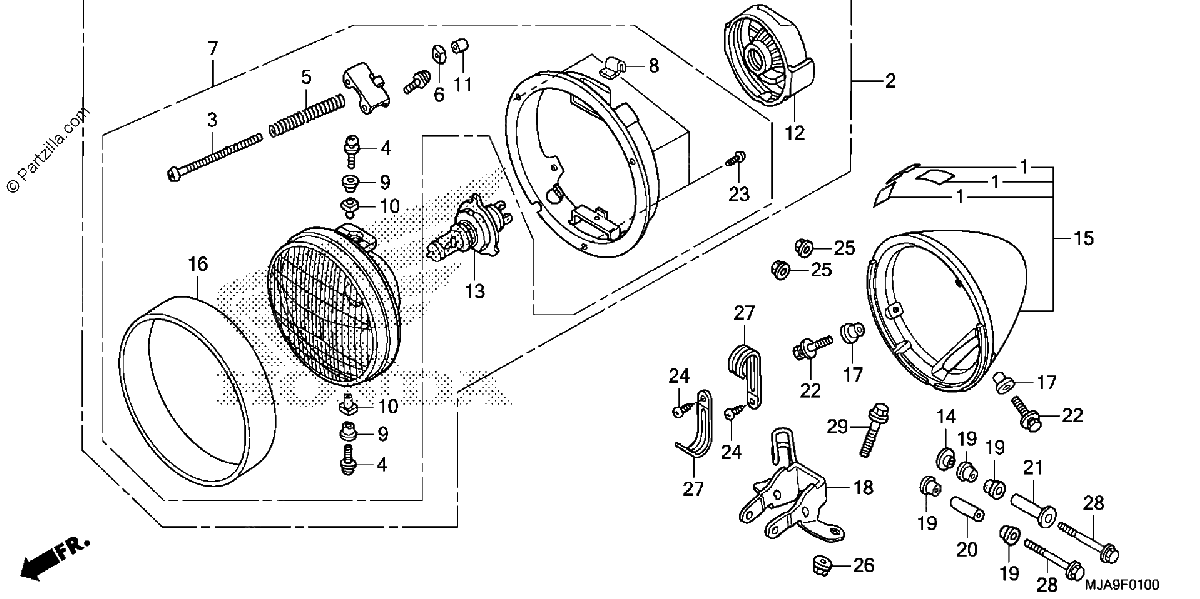

Diagrama de HEADLIGHT 1

Repuestos

#001
17518-MY9-690
PROTECTOR
$3.58¢1 788
1
#1
17518-MY9-690
PROTECTOR
$3.58¢1 788
1
#2
33100-MEG-305
HEADLIGHT Assembly. (12V 60/55W) (COO) (STANLEY)
$229.98¢114 988
1
#002
33100-MEG-305
HEADLIGHT Assembly. (12V 60/55W) (COO) (STANLEY)
$229.98¢114 988
1
#002
33100-MEG-A41
HEADLIGHT Assembly. (12V 60/55W) (STANLEY)
$229.98¢114 988
1
#3
33103-MM2-003
SCREW, BEAM ADJUSTING
$3.24¢1 621
1
#003
33103-MM2-003
SCREW, BEAM ADJUSTING
$3.24¢1 621
1
#004
33104-MAH-671
SCREW-WASHER
$4.47¢2 237
1
#4
33104-MAH-671
SCREW-WASHER
$4.47¢2 237
1
#005
33108-MM2-003
SPRING, BEAM ADJUSTING
$3.86¢1 932
1
#5
33108-MM2-003
SPRING, BEAM ADJUSTING
$3.86¢1 932
1
#6
33118-438-841
NUT, BEAM ADJUSTING
$2.64¢1 322
1
#006
33118-438-841
NUT, BEAM ADJUSTING
$2.64¢1 322
1
#007
33120-MEG-A41
HEADLIGHT UNIT
$178.02¢89 010
1
#7
33120-MEG-305
HEADLIGHT UNIT (COO)
$178.02¢89 010
1
#007
33120-MEG-305
HEADLIGHT UNIT (COO)
$178.02¢89 010
1
#008
33126-MEA-650
TAPE, PROTECTOR
$3.68¢1 840
1
#8
33126-MEA-650
TAPE, PROTECTOR
$3.68¢1 840
1
#009
33127-MAA-A31
SPACER
$2.56¢1 282
1
#9
33127-MAA-A31
SPACER
$2.56¢1 282
1
#010
33128-MAA-A31
NUT, UNIT HOLDER
$2.66¢1 328
1
#10
33128-MAA-A31
NUT, UNIT HOLDER
$2.66¢1 328
1
#011
33136-426-830
COVER, SCREW
$2.22¢1 110
1
#11
33136-426-830
COVER, SCREW
$2.22¢1 110
1
#012
33180-MR7-003
COVER, RUBBER
$15.20¢7 602
1
#12
33180-MR7-003
COVER, RUBBER
$15.20¢7 602
1
#013
34901-MC7-602
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$39.72¢19 861
1
#13
34901-MC7-602
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$39.72¢19 861
1
#14
52157-GC5-000
COLLAR, CHAIN GUARD
$4.99¢2 496
1
#014
52157-GC5-000
COLLAR, CHAIN GUARD
$4.99¢2 496
1
#15
61300-MEG-A40
CASE SET, HEADLIGHT
$133.23¢66 614
1
#015
61300-MEG-A40
CASE SET, HEADLIGHT
$133.23¢66 614
1
#016
61302-MEG-000
RIM, HEADLIGHT
$64.24¢32 119
1
#16
61302-MEG-000
RIM, HEADLIGHT
$64.24¢32 119
1
#17
61304-292-000
COLLAR, HEADLIGHT SETTING
$3.86¢1 932
1
#017
61304-292-000
COLLAR, HEADLIGHT SETTING
$3.86¢1 932
1
#18
61311-MEG-H10
STAY, HEADLIGHT
$54.99¢27 496
1
#018
61311-MEG-H10
STAY, HEADLIGHT
$54.99¢27 496
1
#019
61315-MR1-000
RUBBER, HEADLIGHT MOUNTING
$3.36¢1 679
1
#19
61315-MR1-000
RUBBER, HEADLIGHT MOUNTING
$3.36¢1 679
1
#20
61316-MK7-000
COLLAR, HEADLIGHT STAY
$3.36¢1 679
1
#020
61316-MK7-000
COLLAR, HEADLIGHT STAY
$3.36¢1 679
1
#21
90501-MCF-000
COLLAR A
$5.78¢2 892
1
#021
90501-MCF-000
COLLAR A
$5.78¢2 892
1
#22
93402-05020-00
BOLT-WASHER (5X20)
$1.23¢615
1
#022
93402-05020-00
BOLT-WASHER (5X20)
$1.23¢615
1
#023
93901-24310
SCREW, TAPPING (4X12)
$1.07¢535
1
#23
93901-24310
SCREW, TAPPING (4X12)
$1.07¢535
1
#24
93901-34310
SCREW, TAPPING (4X12)
$1.07¢535
1
#024
93901-34310
SCREW, TAPPING (4X12)
$1.07¢535
1
#25
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#025
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#26
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#026
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#027
94591-49000
CLIP (4X90)
$3.36¢1 679
1
#27
94591-49000
CLIP (4X90)
$3.36¢1 679
1
#28
95701-06055-07
BOLT, FLANGE (6X55)
$2.13¢1 064
1
#028
95701-06055-07
BOLT, FLANGE (6X55)
$2.13¢1 064
1
#29
95801-08045-07
BOLT, FLANGE (8X45)
$2.69¢1 346
1
#029
95801-08045-07
BOLT, FLANGE (8X45)
$2.69¢1 346
1
