SHELTER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

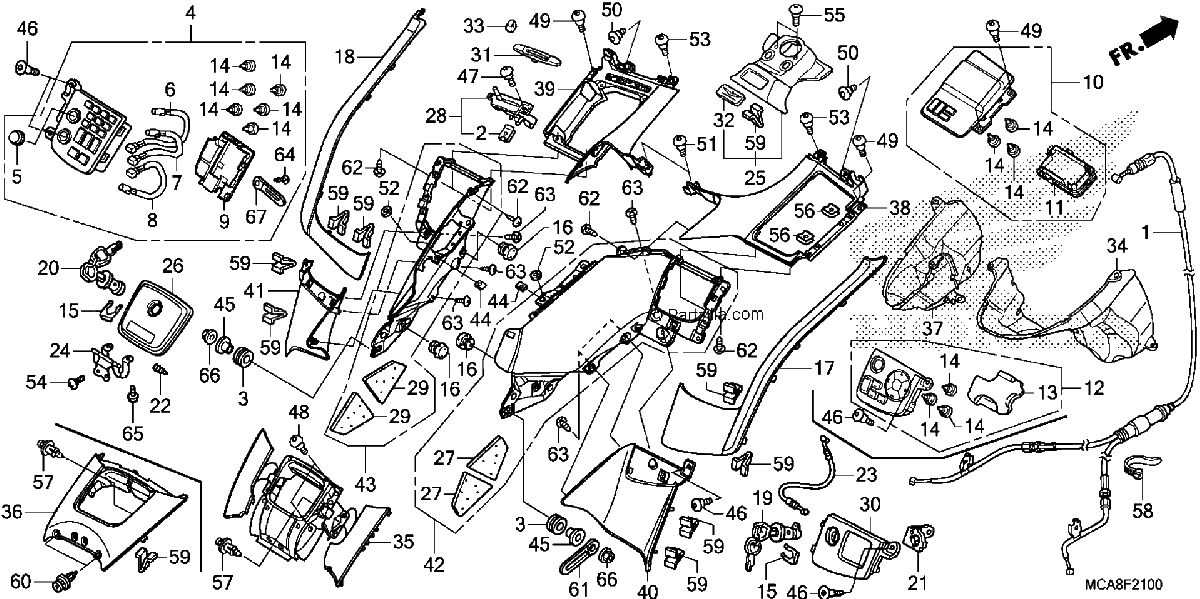

Diagrama de SHELTER

Repuestos

#1
18337-MCA-S40
CABLE, EX. PIPE PROTECTOR ADJUSTING
$125.09¢62 543
1
#001
18337-MCA-S40
CABLE, EX. PIPE PROTECTOR ADJUSTING
$125.09¢62 543
1
#002
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#2
19014-KEA-003
NUT, SETTING (6MM)
$3.45¢1 725
1
#003
33712-KT1-670
RUBBER, TAILLIGHT
$4.99¢2 496
1
#3
33712-KT1-670
RUBBER, TAILLIGHT
$4.99¢2 496
1
#004
35600-MCA-S41
SWITCH ASSY., AUDIO HAZARD
$843.13¢421 567
1
#4
35600-MCA-S41
SWITCH ASSY., AUDIO HAZARD
$843.13¢421 567
1
#4
35600-MCA-S81
SWITCH ASSY., AUDIO HAZARD
$927.24¢463 622
1
#5
35601-MCA-A81
KNOB, MODE SELECT
$11.86¢5 928
1
#005
35601-MCA-A81
KNOB, MODE SELECT
$11.86¢5 928
1
#6
35602-MCA-A81
(VOLUME ORNAMENT)
$12.27¢6 135
1
#006
35602-MCA-A81
(VOLUME ORNAMENT)
$12.27¢6 135
1
#007
35603-MCA-A81
(MODE ORNAMENT)
$12.27¢6 135
1
#7
35603-MCA-A81
(MODE ORNAMENT)
$12.27¢6 135
1
#8
35604-MCA-A81
(FOR HAZARD SW)
$12.27¢6 135
1
#008
35604-MCA-A81
(FOR HAZARD SW)
$12.27¢6 135
1
#009
35610-MCA-A81
COVER
$17.34¢8 671
1
#9
35610-MCA-A81
COVER
$17.34¢8 671
1
#010
35820-MCA-R61ZA
SWITCH ASSY., LEVELING *NH1* (BLACK)
$339.22¢169 608
1
#10
35820-MCA-R61ZA
SWITCH ASSY., LEVELING *NH1* (BLACK)
$339.22¢169 608
1
#011
35821-MCA-A81
COVER
$10.94¢5 468
1
#11
35821-MCA-A81
COVER
$10.94¢5 468
1
#12
35900-MCA-A71
SWITCH ASSY., NAVIGATION PANEL
$335.50¢167 751
1
#12
35900-MCA-A81
SWITCH ASSY., NAVIGATION PANEL
$335.25¢167 624
1
#13
35901-MCA-A70
COVER
$7.81¢3 904
1
#014
35902-MCA-A70
BULB
$12.99¢6 498
1
#14
35902-MCA-A70
BULB
$12.99¢6 498
1
#15
37222-MCA-000
SPRING, LOCK KEY SETTING
$4.15¢2 076
1
#015
37222-MCA-000
SPRING, LOCK KEY SETTING
$4.15¢2 076
1
#016
61112-727-000
RUBBER, TENSIONER ARM
$3.55¢1 777
1
#16
61112-727-000
RUBBER, TENSIONER ARM
$3.55¢1 777
1
#017
64204-MCA-S40ZA
MOLDING, R. COWL TRIM *NH1* (BLACK)
$25.25¢12 627
1
#17
64204-MCA-S40ZA
MOLDING, R. COWL TRIM *NH1* (BLACK)
$25.25¢12 627
1
#18
64214-MCA-S40ZA
MOLDING, L. COWL TRIM *NH1* (BLACK)
$25.25¢12 627
1
#018
64214-MCA-S40ZA
MOLDING, L. COWL TRIM *NH1* (BLACK)
$25.25¢12 627
1
#19
77233-MCA-A61
LOCK ASSY., POCKET LID
$96.39¢48 196
1
#19
77233-MCA-003
LOCK ASSY., POCKET LID
$77.67¢38 836
1
#019
77233-MCA-003
LOCK ASSY., POCKET LID
$77.67¢38 836
1
#020
77234-MCA-003
LOCK ASSY., FUEL LID
$100.07¢50 037
1
#20
77234-MCA-003
LOCK ASSY., FUEL LID
$100.07¢50 037
1
#21
77236-MCA-S40
PLATE, POCKET LOCK
$7.75¢3 875
1
#021
77236-MCA-S40
PLATE, POCKET LOCK
$7.75¢3 875
1
#22
83132-MN5-000
RUBBER, SHELTER LID
$2.83¢1 414
1
#022
83132-MN5-000
RUBBER, SHELTER LID
$2.83¢1 414
1
#23
83133-MCA-S40
CABLE, POCKET LOCK
$13.51¢6 756
1
#023
83133-MCA-S40
CABLE, POCKET LOCK
$13.51¢6 756
1
#024
83140-MCA-000
HINGE
$138.23¢69 115
1
#24
83140-MCA-000
HINGE
$138.23¢69 115
1
#025
83150-MJK-A80ZA
CENTER ASSY., FR. SHELTER *NH1* (BLACK)
$101.44¢50 721
1
#25
83150-MJK-A80ZA
CENTER ASSY., FR. SHELTER *NH1* (BLACK)
$101.44¢50 721
1
#026
83153-MCA-S40ZG
LID, SHELTER NHA30M (DIGITAL SILVER METALLIC)
$40.96¢20 481
1
#26
83153-MCA-S40ZG
LID, SHELTER NHA30M (DIGITAL SILVER METALLIC)
$40.96¢20 481
1
#26
83153-MCA-S40ZJ
LID, SHELTER R342C (CANDY PROMINENCE RED)
$37.01¢18 504
1
#26
83153-MCA-S40ZB
LID, SHELTER NHB01 NHRAPHITE BLACK)
$44.17¢22 086
1
#026
83153-MCA-S40ZB
LID, SHELTER NHB01 NHRAPHITE BLACK)
$44.17¢22 086
1
#27
83154-MCA-S40
MAT, R. TOP SHELTER
$14.14¢7 073
1
#027
83154-MCA-S40
MAT, R. TOP SHELTER
$14.14¢7 073
1
#28
83155-MCA-A70
LEVER ASSY., VENT ADJUSTER (LOWER)
$44.61¢22 304
1
#028
83155-MCA-A70
LEVER ASSY., VENT ADJUSTER (LOWER)
$44.61¢22 304
1
#029
83159-MCA-S40
MAT, L. TOP SHELTER
$14.14¢7 073
1
#29
83159-MCA-S40
MAT, L. TOP SHELTER
$14.14¢7 073
1
#030
83160-MCA-000
PANEL, R. SHELTER SWITCH
$26.70¢13 351
1
#30
83160-MCA-000
PANEL, R. SHELTER SWITCH
$26.70¢13 351
1
#031
83161-MCA-S40ZA
COVER, VENT ADJUSTER LEVER (LOWER) *NH1* (BLACK)
$25.79¢12 897
1
#31
83161-MCA-S40ZA
COVER, VENT ADJUSTER LEVER (LOWER) *NH1* (BLACK)
$25.79¢12 897
1
#32
83162-MJK-A80
EMBLEM, GOLD WING (40TH ANNIVERSARY)
$60.01¢30 004
1
#032
83162-MJK-A80
EMBLEM, GOLD WING (40TH ANNIVERSARY)
$60.01¢30 004
1
#33
83163-MCA-A70
KNOB, VENT ADJUSTER LEVER (LOWER)
$6.31¢3 157
1
#033
83163-MCA-A70
KNOB, VENT ADJUSTER LEVER (LOWER)
$6.31¢3 157
1
#034
83165-MCA-A60
COVER, R. SHELTER (INNER)
$46.53¢23 265
1
#34
83165-MCA-A60
COVER, R. SHELTER (INNER)
$46.53¢23 265
1
#35
83170-MCA-S80ZG
CENTER, TOP SHELTER *R342C* (CANDY PROMINENCE RED)
$169.64¢84 818
1
#36
83173-MCA-S40ZJ
SHELTER, CENTER TOP *R342C* (CANDY PROMINENCE RED)
$124.44¢62 221
1
#36
83173-MCA-S40ZG
SHELTER, CENTER TOP NHA30M (DIGITAL SILVER METALLIC)
$129.04¢64 521
1
#036
83173-MCA-S40ZB
SHELTER, CENTER TOP NHB01 NHRAPHITE BLACK)
$133.87¢66 936
1
#36
83173-MCA-S40ZB
SHELTER, CENTER TOP NHB01 NHRAPHITE BLACK)
$133.87¢66 936
1
#036
83173-MCA-S40ZG
SHELTER, CENTER TOP NHA30M (DIGITAL SILVER METALLIC)
$129.04¢64 521
1
#37
83175-MCA-A60
COVER, L. SHELTER (INNER)
$46.53¢23 265
1
#037
83175-MCA-A60
COVER, L. SHELTER (INNER)
$46.53¢23 265
1
#38
83177-MCA-S40ZA
SHELTER, R. FR. *NH1* (BLACK)
$255.74¢127 868
1
#038
83177-MCA-S40ZA
SHELTER, R. FR. *NH1* (BLACK)
$255.74¢127 868
1
#39
90113-MM5-000
SCREW, PAN (6X14)
$3.45¢1 725
1
#039
83178-MCA-S40ZA
SHELTER, L. FR. *NH1* (BLACK)
$255.74¢127 868
1
#39
83178-MCA-S40ZA
SHELTER, L. FR. *NH1* (BLACK)
$255.74¢127 868
1
#40
83191-MCA-S40ZE
PANEL, Right SHELTER TOP NHA30M (DIGITAL SILVER METALLIC)
$45.74¢22 868
1
#040
83191-MCA-S40ZE
PANEL, Right SHELTER TOP NHA30M (DIGITAL SILVER METALLIC)
$45.74¢22 868
1
#040
83191-MCA-S40ZJ
PANEL, R. SHELTER TOP *NHB01* (GRAPHITE BLACK)
$42.85¢21 425
1
#40
83191-MCA-S40ZJ
PANEL, R. SHELTER TOP *NHB01* (GRAPHITE BLACK)
$42.85¢21 425
1
#41
83192-MCA-S40ZE
PANEL, L SHELTER TOP NHA30M (DIGITAL SILVER METALLIC)
$43.76¢21 879
1
#041
83192-MCA-S40ZJ
PANEL, L. SHELTER TOP *NHB01* (GRAPHITE BLACK)
$42.85¢21 425
1
#41
83192-MCA-S40ZJ
PANEL, L. SHELTER TOP *NHB01* (GRAPHITE BLACK)
$42.85¢21 425
1
#041
83192-MCA-S40ZE
PANEL, L SHELTER TOP NHA30M (DIGITAL SILVER METALLIC)
$43.76¢21 879
1
#42
83190-MJK-G40ZA
SHELTER ASSY., R. TOP (TYPE1) (WL)
$631.29¢315 646
1
#42
83193-MCA-S40ZB
SHELTER SET, R. TOP *NHB01* (GRAPHITE BLACK)
$595.15¢297 574
1
#042
83193-MCA-S40ZB
SHELTER SET, R. TOP *NHB01* (GRAPHITE BLACK)
$595.15¢297 574
1
#042
83193-MCA-S40ZG
SHELTER SET, R. TOP *NHA30M* (DIGITAL SILVER METALLIC)
$624.54¢312 271
1
#42
83193-MCA-S40ZG
SHELTER SET, R. TOP *NHA30M* (DIGITAL SILVER METALLIC)
$624.54¢312 271
1
#43
83191-MJK-G40ZA
SHELTER ASSY., L. TOP (TYPE1) (WL)
$659.89¢329 947
1
#043
83194-MCA-S40ZG
SHELTER SET, L. TOP *NHA30M* (DIGITAL SILVER METALLIC)
$624.54¢312 271
1
#43
83194-MCA-S40ZG
SHELTER SET, L. TOP *NHA30M* (DIGITAL SILVER METALLIC)
$624.54¢312 271
1
#043
83194-MCA-S40ZB
SHELTER SET, L. TOP *NHB01* (GRAPHITE BLACK)
$595.15¢297 574
1
#43
83194-MCA-S40ZB
SHELTER SET, L. TOP *NHB01* (GRAPHITE BLACK)
$595.15¢297 574
1
#44
84601-HA7-670
NUT, FENDER SETTING
$6.18¢3 088
1
#45
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.55¢2 277
1
#045
84706-163-670
COLLAR, TAILLIGHT MOUNTING
$4.55¢2 277
1
#046
90003-GEV-760
BOLT, MUFFLER PROTECTOR
$2.28¢1 138
1
#46
90003-GEV-760
BOLT, MUFFLER PROTECTOR
$2.28¢1 138
1
#047
90103-MN9-000
BOLT, FR. DISK
$5.44¢2 720
1
#47
90103-MN9-000
BOLT, FR. DISK
$5.44¢2 720
1
#48
90104-MN4-000
SCREW, SPECIAL (6X19)
$6.45¢3 226
1
#49
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#049
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#050
90106-MM4-000
SCREW, PAN (6X14)
$4.34¢2 168
1
#50
90106-MM4-000
SCREW, PAN (6X14)
$4.34¢2 168
1
#51
90106-MM4-000
SCREW, PAN (6X14)
$4.34¢2 168
1
#51
90137-MCA-000
SCREW, SPECIAL (6MM)
$3.36¢1 679
1
#051
90137-MCA-000
SCREW, SPECIAL (6MM)
$3.36¢1 679
1
#52
90111-MCA-S40
COLLAR (6.5X11X2.5)
$5.54¢2 772
1
#053
90113-MM5-000
SCREW, PAN (6X14)
$3.45¢1 725
1
#54
90115-KW7-900
SCREW, VISOR SPECIAL SETTING
$2.46¢1 231
1
#054
90115-KW7-900
SCREW, VISOR SPECIAL SETTING
$2.46¢1 231
1
#55
90150-GBT-600
SCREW, PAN (5X18)
$2.38¢1 190
1
#055
90150-GBT-600
SCREW, PAN (5X18)
$2.38¢1 190
1
#056
90320-GE2-760
NUT, SPRING (5MM)
$2.33¢1 167
1
#56
90320-GE2-760
NUT, SPRING (5MM)
$2.33¢1 167
1
#057
90602-GCT-000
RIVET, PUSH (6MM)
$1.09¢546
1
#57
90602-GCT-000
RIVET, PUSH (6MM)
$1.09¢546
1
#58
90620-SB2-003
BAND, WIRE HARNESS
$29.19¢14 593
1
#058
90620-SB2-003
BAND, WIRE HARNESS
$29.19¢14 593
1
#59
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$0.93¢466
1
#059
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$0.93¢466
1
#60
90683-MBW-003
CLIP, BODY
$2.31¢1 156
1
#060
90683-MBW-003
CLIP, BODY
$2.31¢1 156
1
#61
91413-679-000
CLIP (2X70)
$9.95¢4 974
1
#061
91413-679-000
CLIP (2X70)
$9.95¢4 974
1
#62
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#062
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#63
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#063
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#64
93911-24110
SCREW, TAPPING (4X10) (PO)
$0.79¢397
1
#064
93911-24110
SCREW, TAPPING (4X10) (PO)
$0.79¢397
1
#065
93913-24380
SCREW, TAPPING (4X12) (PO)
$1.07¢535
1
#65
93913-24380
SCREW, TAPPING (4X12) (PO)
$1.07¢535
1
#066
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#66
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#067
94591-44000
CLIP (4X40)
$2.74¢1 368
1
#67
94591-44000
CLIP (4X40)
$2.74¢1 368
1
#068
35605-MCA-A81
KNOB SET, MODE SELECT
$13.71¢6 854
1
