SADDLEBAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

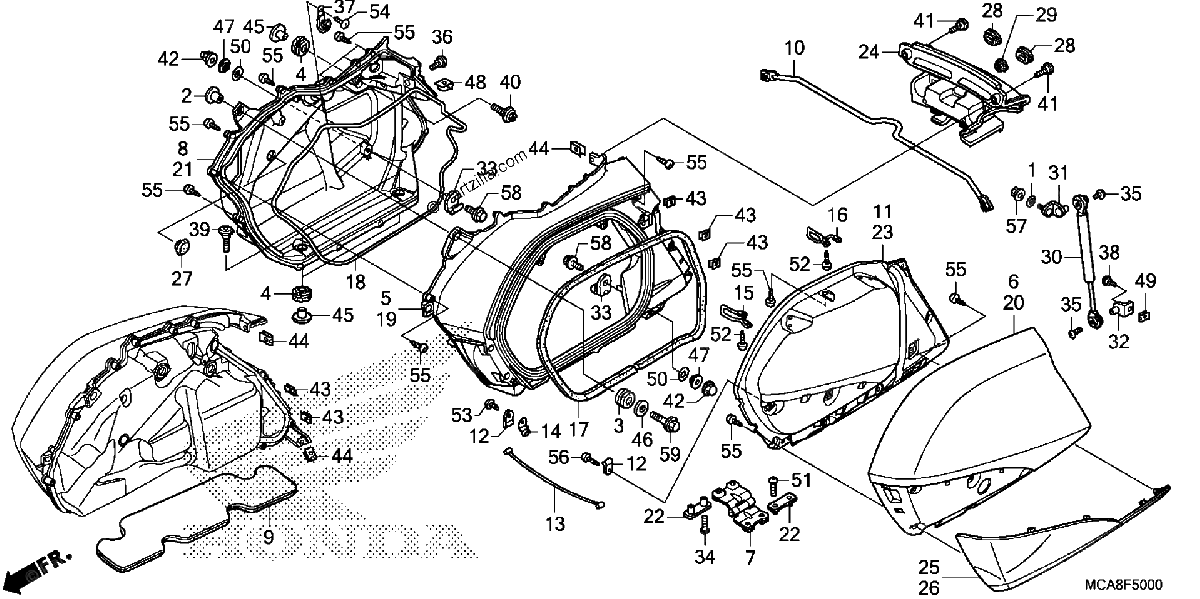

Diagrama de SADDLEBAG

Repuestos

#001
15142-PE0-000
O-RING (4.8X1.9)
$3.45¢1 725
1
#1
15142-PE0-000
O-RING (4.8X1.9)
$3.45¢1 725
1
#002
19052-KA3-710
COLLAR, RADIATOR MOUNTING
$7.72¢3 858
1
#2
19052-KA3-710
COLLAR, RADIATOR MOUNTING
$7.72¢3 858
1
#3
61320-KZ9-000
RUBBER, HEADLIGHT GUARD
$5.69¢2 846
1
#003
61320-KZ9-000
RUBBER, HEADLIGHT GUARD
$5.69¢2 846
1
#4
80201-MCA-000
RUBBER, SADDLEBAG MOUNTING
$16.81¢8 407
1
#004
80201-MCA-000
RUBBER, SADDLEBAG MOUNTING
$16.81¢8 407
1
#5
81210-MJK-G40ZA
SADDLEBAG SET, R. (TYPE1) (WL)
$1232.59¢616 296
1
#005
81211-MJG-670ZA
BODY, R. SADDLEBAG *NHB01* (GRAPHITE BLACK)
$1278.88¢639 440
1
#5
81211-MJG-670ZA
BODY, R. SADDLEBAG *NHB01* (GRAPHITE BLACK)
$1278.88¢639 440
1
#005
81211-MJG-670ZM
BODY, R. SADDLEBAG *NHA30M* (DIGITAL SILVER METALLIC)
$1240.50¢620 252
1
#5
81211-MJG-670ZM
BODY, R. SADDLEBAG *NHA30M* (DIGITAL SILVER METALLIC)
$1240.50¢620 252
1
#6
81221-MCA-S40ZG
LID, Right SADDLEBAG NHA30M (DIGITAL SILVER METALLIC)
$946.48¢473 242
1
#006
81221-MCA-S40ZG
LID, Right SADDLEBAG NHA30M (DIGITAL SILVER METALLIC)
$946.48¢473 242
1
#6
81221-MCA-S40ZB
LID, R. SADDLEBAG *NHB01* (GRAPHITE BLACK)
$946.47¢473 237
1
#006
81221-MCA-S40ZB
LID, R. SADDLEBAG *NHB01* (GRAPHITE BLACK)
$946.47¢473 237
1
#6
81220-MJK-G40ZA
LID SET, R. SADDLEBAG (TYPE1) (WL)
$990.95¢495 477
1
#007
81230-MCA-S40
HINGE, SADDLEBAG
$30.19¢15 094
1
#7
81230-MCA-S40
HINGE, SADDLEBAG
$30.19¢15 094
1
#8
81231-MCA-S40
PANEL, R. SADDLEBAG
$243.80¢121 900
1
#008
81231-MCA-S40
PANEL, R. SADDLEBAG
$243.80¢121 900
1
#9
81232-MCA-A40
GUARD, SADDLEBAG HEAT
$19.17¢9 585
1
#009
81232-MCA-A40
GUARD, SADDLEBAG HEAT
$19.17¢9 585
1
#010
81233-MCA-S40
PIPE, CROSS
$114.56¢57 282
1
#10
81233-MCA-S40
PIPE, CROSS
$114.56¢57 282
1
#011
81241-MCA-S40
INNER LID, R. SADDLEBAG
$256.16¢128 081
1
#11
81241-MCA-S40
INNER LID, R. SADDLEBAG
$256.16¢128 081
1
#12
81254-MN5-000
STAY B, LID STOPPER
$5.83¢2 915
1
#012
81254-MN5-000
STAY B, LID STOPPER
$5.83¢2 915
1
#13
81259-MCA-S40
CABLE, SADDLEBAG STOPPER
$10.06¢5 031
1
#013
81259-MCA-S40
CABLE, SADDLEBAG STOPPER
$10.06¢5 031
1
#14
81292-MCA-000
GUIDE, STOPPER CABLE
$4.31¢2 156
1
#014
81292-MCA-000
GUIDE, STOPPER CABLE
$4.31¢2 156
1
#15
81321-MCA-780
ROD A, SADDLEBAG STRIKER
$24.44¢12 219
1
#015
81321-MCA-780
ROD A, SADDLEBAG STRIKER
$24.44¢12 219
1
#016
81322-MCA-780
ROD B, SADDLEBAG STRIKER
$24.44¢12 219
1
#16
81322-MCA-780
ROD B, SADDLEBAG STRIKER
$24.44¢12 219
1
#017
81350-MCA-S40
RUBBER, SADDLEBAG SEAL
$30.67¢15 335
1
#17
81350-MCA-S40
RUBBER, SADDLEBAG SEAL
$30.67¢15 335
1
#018
81351-MCA-S40
RUBBER, BACK PANEL SEAL
$23.55¢11 776
1
#18
81351-MCA-S40
RUBBER, BACK PANEL SEAL
$23.55¢11 776
1
#19
81410-MJK-G40ZA
SADDLEBAG SET, L. (TYPE1) (WL)
$1232.59¢616 296
1
#19
81411-MJG-670ZA
BODY, L SADDLEBAG NHB01 NHRAPHITE BLACK)
$1344.05¢672 026
1
#019
81411-MJG-670ZA
BODY, L SADDLEBAG NHB01 NHRAPHITE BLACK)
$1344.05¢672 026
1
#019
81411-MJG-670ZM
BODY, L. SADDLEBAG *NHA30M* (DIGITAL SILVER METALLIC)
$1306.19¢653 096
1
#19
81411-MJG-670ZM
BODY, L. SADDLEBAG *NHA30M* (DIGITAL SILVER METALLIC)
$1306.19¢653 096
1
#20
81421-MCA-S40ZG
LID, L SADDLEBAG NHA30M (DIGITAL SILVER METALLIC)
$946.48¢473 242
1
#020
81421-MCA-S40ZG
LID, L SADDLEBAG NHA30M (DIGITAL SILVER METALLIC)
$946.48¢473 242
1
#020
81421-MCA-S40ZB
LID, L. SADDLEBAG *NHB01* (GRAPHITE BLACK)
$946.47¢473 237
1
#20
81421-MCA-S40ZB
LID, L. SADDLEBAG *NHB01* (GRAPHITE BLACK)
$946.47¢473 237
1
#20
81420-MJK-G40ZA
LID SET, L. SADDLEBAG (TYPE1) (WL)
$1041.69¢520 847
1
#021
81431-MCA-S40
PANEL, L. SADDLEBAG
$243.80¢121 900
1
#21
81431-MCA-S40
PANEL, L. SADDLEBAG
$243.80¢121 900
1
#22
81438-MN5-000
WASHER, HINGE SETTING
$10.65¢5 325
1
#022
81438-MN5-000
WASHER, HINGE SETTING
$10.65¢5 325
1
#23
81441-MCA-S40
INNER LID, L. SADDLEBAG
$256.16¢128 081
1
#023
81441-MCA-S40
INNER LID, L. SADDLEBAG
$256.16¢128 081
1
#24
81501-MCA-S40ZB
COWL, RR. CENTER SADDLEBAG *NHB01* (GRAPHITE BLACK)
$159.47¢79 735
1
#024
81501-MCA-S40ZB
COWL, RR. CENTER SADDLEBAG *NHB01* (GRAPHITE BLACK)
$159.47¢79 735
1
#24
81501-MCA-S40ZF
COWL, Rear CENTER SADDLEBAG NHA30M (DIGITAL SILVER METALLIC)
$153.71¢76 854
1
#024
81501-MCA-S40ZF
COWL, Rear CENTER SADDLEBAG NHA30M (DIGITAL SILVER METALLIC)
$153.71¢76 854
1
#24
81501-MCA-S40ZG
COWL, RR. CENTER SADDLEBAG *R342C* (CANDY PROMINENCE RED)
$141.90¢70 949
1
#25
82213-MCA-S40
COVER, R. SADDLEBAG LID
$106.04¢53 021
1
#025
82213-MCA-S40
COVER, R. SADDLEBAG LID
$106.04¢53 021
1
#026
82513-MCA-S40
COVER, L. SADDLEBAG LID
$106.04¢53 021
1
#26
82513-MCA-S40
COVER, L. SADDLEBAG LID
$106.04¢53 021
1
#27
82871-671-000
GROMMET, DRAIN HOLE (25MM)
$4.98¢2 490
1
#027
82871-671-000
GROMMET, DRAIN HOLE (25MM)
$4.98¢2 490
1
#28
83551-MA6-000
GROMMET, SIDE COVER
$3.74¢1 869
1
#028
83551-MA6-000
GROMMET, SIDE COVER
$3.74¢1 869
1
#029
83551-376-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#29
83551-376-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#30
83590-MCA-013
DAMPER, OPENER
$69.26¢34 632
1
#030
83590-MCA-013
DAMPER, OPENER
$69.26¢34 632
1
#31
83591-MCA-000
PLATE, DAMPER MOUNTING (UPPER)
$3.90¢1 949
1
#031
83591-MCA-000
PLATE, DAMPER MOUNTING (UPPER)
$3.90¢1 949
1
#32
83592-MCA-000
PLATE, DAMPER MOUNTING (LOWER)
$3.83¢1 915
1
#032
83592-MCA-000
PLATE, DAMPER MOUNTING (LOWER)
$3.83¢1 915
1
#33
89106-MN5-000
(L. SIDE ONLY)
$7.01¢3 507
1
#033
89106-MN5-000
(L. SIDE ONLY)
$7.01¢3 507
1
#34
90101-MCA-S40
BOLT, TORX (5X16)
$2.15¢1 075
1
#034
90101-MCA-S40
BOLT, TORX (5X16)
$2.15¢1 075
1
#035
90104-964-000
SCREW (5X12)
$2.77¢1 386
1
#35
90104-964-000
SCREW (5X12)
$2.77¢1 386
1
#036
90106-KBV-000
SCREW, PAN (6X14)
$4.36¢2 179
1
#36
90106-KBV-000
SCREW, PAN (6X14)
$4.36¢2 179
1
#037
90106-KJ6-740
CLIP, TUBE
$4.86¢2 432
1
#37
90106-KJ6-740
CLIP, TUBE
$4.86¢2 432
1
#38
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#038
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#39
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#39
90109-MCA-000
SCREW, SPECIAL (6MM)
$4.43¢2 214
1
#039
90109-MCA-000
SCREW, SPECIAL (6MM)
$4.43¢2 214
1
#040
90119-MCA-000
SCREW, SPECIAL (6MM)
$4.73¢2 363
1
#40
90119-MCA-000
SCREW, SPECIAL (6MM)
$4.73¢2 363
1
#041
90137-MCA-000
SCREW, SPECIAL (6MM)
$3.36¢1 679
1
#41
90137-MCA-000
SCREW, SPECIAL (6MM)
$3.36¢1 679
1
#42
90201-428-900
NUT, CAP
$2.64¢1 322
1
#042
90201-428-900
NUT, CAP
$2.64¢1 322
1
#043
90312-MT3-000
NUT, CLIP (5MM)
$5.11¢2 553
1
#43
90312-MT3-000
NUT, CLIP (5MM)
$5.11¢2 553
1
#44
90320-MM5-000
NUT, SPRING (6MM)
$3.36¢1 679
1
#044
90320-MM5-000
NUT, SPRING (6MM)
$3.36¢1 679
1
#45
90501-MCA-000
COLLAR, SADDLEBAG MOUNTING
$5.63¢2 818
1
#045
90501-MCA-000
COLLAR, SADDLEBAG MOUNTING
$5.63¢2 818
1
#46
90506-430-000
WASHER, FENDER MOUNTING
$3.36¢1 679
1
#046
90506-430-000
WASHER, FENDER MOUNTING
$3.36¢1 679
1
#47
90512-KF9-900
(L. SIDE ONLY)
$3.42¢1 708
1
#047
90512-KF9-900
(L. SIDE ONLY)
$3.42¢1 708
1
#048
90651-MFL-670
U-CLIP
$3.58¢1 788
1
#48
90651-MFL-670
U-CLIP
$3.58¢1 788
1
#49
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#049
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#50
91352-GAZ-930
(L. SIDE ONLY)
$2.75¢1 374
1
#050
91352-GAZ-930
(L. SIDE ONLY)
$2.75¢1 374
1
#051
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#51
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#52
93901-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#052
93901-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#053
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#054
93903-25180
SCREW, TAPPING (5X10)
$1.07¢535
1
#54
93903-25180
SCREW, TAPPING (5X10)
$1.07¢535
1
#55
93903-25280
SCREW, TAPPING (5X12)
$1.53¢765
1
#055
93903-25280
SCREW, TAPPING (5X12)
$1.53¢765
1
#56
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#056
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#057
94050-05000
NUT, FLANGE (5MM)
$1.54¢771
1
#57
94050-05000
NUT, FLANGE (5MM)
$1.54¢771
1
#58
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#058
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#59
96001-06030-00
BOLT, FLANGE (6X30)
$1.66¢828
1
#059
96001-06030-00
BOLT, FLANGE (6X30)
$1.66¢828
1
