SADDLEBAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

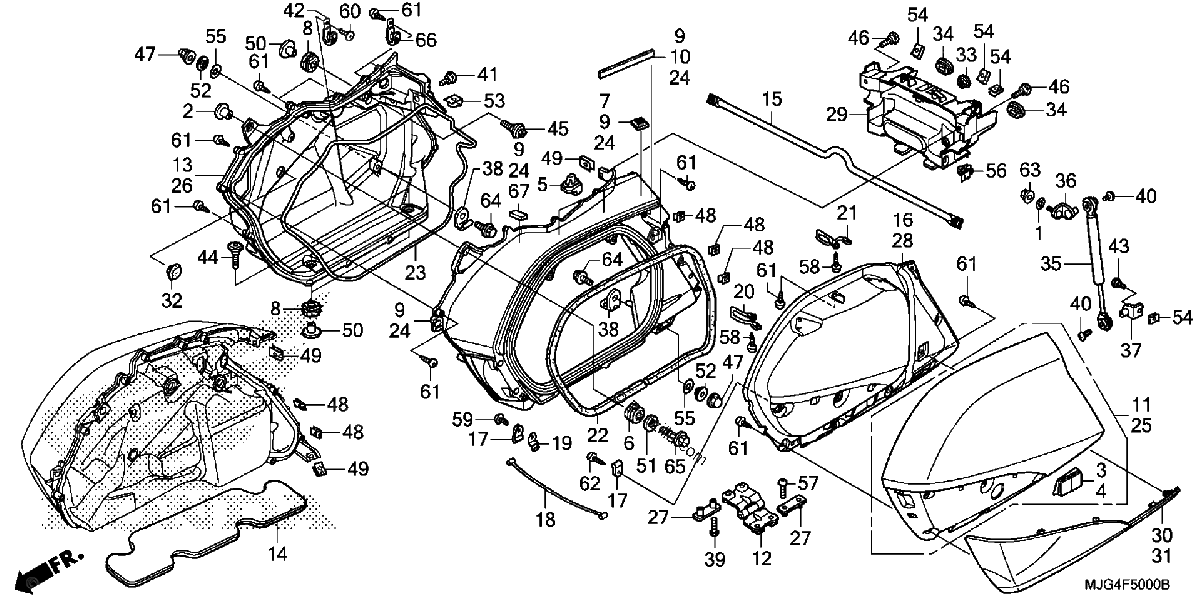

Diagrama de SADDLEBAG

Repuestos

#001
15142-PE0-000
O-RING (4.8X1.9)
$3.45¢1 725
1
#1
15142-PE0-000
O-RING (4.8X1.9)
$3.45¢1 725
1
#002
19052-KA3-710
COLLAR, RADIATOR MOUNTING
$7.72¢3 858
1
#2
19052-KA3-710
COLLAR, RADIATOR MOUNTING
$7.72¢3 858
1
#3
33740-MJG-670ZE
REFLECTOR, Right. PB395M (ATMOSPHERE BLUE METALLIC)
$43.00¢21 499
1
#003
33740-MJG-670ZE
REFLECTOR, Right. PB395M (ATMOSPHERE BLUE METALLIC)
$43.00¢21 499
1
#003
33740-MJG-670ZF
REFLECTOR, R. *NH389M* (MAT BULLET SILVER)
$41.11¢20 556
1
#3
33740-MJG-670ZF
REFLECTOR, R. *NH389M* (MAT BULLET SILVER)
$41.11¢20 556
1
#4
33745-MJG-670ZF
REFLECTOR, L. *NH389M* (MAT BULLET SILVER)
$41.14¢20 568
1
#4
33745-MJG-670ZE
REFLECTOR, Left PB395M (ATMOSPHERE BLUE METALLIC)
$42.96¢21 482
1
#004
33745-MJG-670ZE
REFLECTOR, Left PB395M (ATMOSPHERE BLUE METALLIC)
$42.96¢21 482
1
#004
33745-MJG-670ZF
REFLECTOR, L. *NH389M* (MAT BULLET SILVER)
$41.14¢20 568
1
#5
39115-TK6-003
CLIP, USB CONNECTOR HOLDER (A)
$1.39¢696
1
#005
39115-TK6-003
CLIP, USB CONNECTOR HOLDER (A)
$1.39¢696
1
#6
61320-KZ9-000
RUBBER, HEADLIGHT GUARD
$5.69¢2 846
1
#006
61320-KZ9-000
RUBBER, HEADLIGHT GUARD
$5.69¢2 846
1
#007
64243-MEW-920
FASTENER B, DUAL LOCK (20X20)
$3.36¢1 679
1
#7
64243-MEW-920
FASTENER B, DUAL LOCK (20X20)
$3.36¢1 679
1
#8
80201-MCA-000
RUBBER, SADDLEBAG MOUNTING
$16.81¢8 407
1
#008
80201-MCA-000
RUBBER, SADDLEBAG MOUNTING
$16.81¢8 407
1
#009
81210-MJG-671ZE
SADDLEBAG, R. *NH389M* (MAT BULLET SILVER)
$1335.39¢667 696
1
#9
81210-MJG-671ZE
SADDLEBAG, R. *NH389M* (MAT BULLET SILVER)
$1335.39¢667 696
1
#9
81210-MJG-671ZD
SADDLEBAG, Right. PB395M (ATMOSPHERE BLUE METALLIC)
$1278.04¢639 020
1
#009
81210-MJG-671ZD
SADDLEBAG, Right. PB395M (ATMOSPHERE BLUE METALLIC)
$1278.04¢639 020
1
#010
81212-MJG-670
MAT, SADDLEBAG BODY
$3.51¢1 754
1
#10
81212-MJG-670
MAT, SADDLEBAG BODY
$3.51¢1 754
1
#11
81220-MJG-670ZD
LID, Right SADDLEBAG PB395M (ATMOSPHERE BLUE METALLIC)
$1032.19¢516 097
1
#011
81220-MJG-670ZD
LID, Right SADDLEBAG PB395M (ATMOSPHERE BLUE METALLIC)
$1032.19¢516 097
1
#11
81220-MJG-670ZE
LID, Right SADDLEBAG NH389M (MAT BULLET SILVER)
$1032.49¢516 246
1
#011
81220-MJG-670ZE
LID, Right SADDLEBAG NH389M (MAT BULLET SILVER)
$1032.49¢516 246
1
#12
81230-MCA-S40
HINGE, SADDLEBAG
$30.19¢15 094
1
#012
81230-MCA-S40
HINGE, SADDLEBAG
$30.19¢15 094
1
#13
81231-MCA-S40
PANEL, R. SADDLEBAG
$243.80¢121 900
1
#013
81231-MCA-S40
PANEL, R. SADDLEBAG
$243.80¢121 900
1
#014
81232-MCA-A40
GUARD, SADDLEBAG HEAT
$19.17¢9 585
1
#14
81232-MCA-A40
GUARD, SADDLEBAG HEAT
$19.17¢9 585
1
#15
81233-MJG-670
PIPE, CROSS
$94.60¢47 300
1
#015
81233-MJG-670
PIPE, CROSS
$94.60¢47 300
1
#016
81241-MCA-S40
INNER LID, R. SADDLEBAG
$256.16¢128 081
1
#16
81241-MCA-S40
INNER LID, R. SADDLEBAG
$256.16¢128 081
1
#017
81254-MN5-000
STAY B, LID STOPPER
$5.83¢2 915
1
#17
81254-MN5-000
STAY B, LID STOPPER
$5.83¢2 915
1
#018
81259-MCA-S40
CABLE, SADDLEBAG STOPPER
$10.06¢5 031
1
#18
81259-MCA-S40
CABLE, SADDLEBAG STOPPER
$10.06¢5 031
1
#019
81292-MCA-000
GUIDE, STOPPER CABLE
$4.31¢2 156
1
#19
81292-MCA-000
GUIDE, STOPPER CABLE
$4.31¢2 156
1
#020
81321-MCA-780
ROD A, SADDLEBAG STRIKER
$24.44¢12 219
1
#20
81321-MCA-780
ROD A, SADDLEBAG STRIKER
$24.44¢12 219
1
#21
81322-MCA-780
ROD B, SADDLEBAG STRIKER
$24.44¢12 219
1
#021
81322-MCA-780
ROD B, SADDLEBAG STRIKER
$24.44¢12 219
1
#022
81350-MCA-S40
RUBBER, SADDLEBAG SEAL
$30.67¢15 335
1
#22
81350-MCA-S40
RUBBER, SADDLEBAG SEAL
$30.67¢15 335
1
#23
81351-MCA-S40
RUBBER, BACK PANEL SEAL
$23.55¢11 776
1
#023
81351-MCA-S40
RUBBER, BACK PANEL SEAL
$23.55¢11 776
1
#024
81410-MJG-671ZD
SADDLEBAG, L. *PB395M* (ATMOSPHERE BLUE METALLIC)
$1278.04¢639 020
1
#24
81410-MJG-671ZD
SADDLEBAG, L. *PB395M* (ATMOSPHERE BLUE METALLIC)
$1278.04¢639 020
1
#024
81410-MJG-671ZE
SADDLEBAG, L. *NH389M* (MAT BULLET SILVER)
$1335.39¢667 696
1
#24
81410-MJG-671ZE
SADDLEBAG, L. *NH389M* (MAT BULLET SILVER)
$1335.39¢667 696
1
#025
81420-MJG-670ZE
LID, L. SADDLEBAG *NH389M* (MAT BULLET SILVER)
$1032.49¢516 246
1
#25
81420-MJG-670ZE
LID, L. SADDLEBAG *NH389M* (MAT BULLET SILVER)
$1032.49¢516 246
1
#025
81420-MJG-670ZD
LID, L. SADDLEBAG *PB395M* (ATMOSPHERE BLUE METALLIC)
$1032.19¢516 097
1
#25
81420-MJG-670ZD
LID, L. SADDLEBAG *PB395M* (ATMOSPHERE BLUE METALLIC)
$1032.19¢516 097
1
#026
81431-MCA-S40
PANEL, L. SADDLEBAG
$243.80¢121 900
1
#26
81431-MCA-S40
PANEL, L. SADDLEBAG
$243.80¢121 900
1
#27
81438-MN5-000
WASHER, HINGE SETTING
$10.65¢5 325
1
#027
81438-MN5-000
WASHER, HINGE SETTING
$10.65¢5 325
1
#28
81441-MCA-S40
INNER LID, L. SADDLEBAG
$256.16¢128 081
1
#028
81441-MCA-S40
INNER LID, L. SADDLEBAG
$256.16¢128 081
1
#29
81501-MJG-670
COWL, Rear CENTER SADDLEBAG
$68.47¢34 235
1
#029
81501-MJG-670
COWL, Rear CENTER SADDLEBAG
$68.47¢34 235
1
#30
82213-MCA-S40
COVER, R. SADDLEBAG LID
$106.04¢53 021
1
#030
82213-MCA-S40
COVER, R. SADDLEBAG LID
$106.04¢53 021
1
#31
82513-MCA-S40
COVER, L. SADDLEBAG LID
$106.04¢53 021
1
#031
82513-MCA-S40
COVER, L. SADDLEBAG LID
$106.04¢53 021
1
#32
82871-671-000
GROMMET, DRAIN HOLE (25MM)
$4.98¢2 490
1
#032
82871-671-000
GROMMET, DRAIN HOLE (25MM)
$4.98¢2 490
1
#033
83551-376-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#33
83551-376-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#34
83551-MA6-000
GROMMET, SIDE COVER
$3.74¢1 869
1
#034
83551-MA6-000
GROMMET, SIDE COVER
$3.74¢1 869
1
#35
83590-MCA-013
DAMPER, OPENER
$69.26¢34 632
1
#035
83590-MCA-013
DAMPER, OPENER
$69.26¢34 632
1
#36
83591-MCA-000
PLATE, DAMPER MOUNTING (UPPER)
$3.90¢1 949
1
#036
83591-MCA-000
PLATE, DAMPER MOUNTING (UPPER)
$3.90¢1 949
1
#37
83592-MCA-000
PLATE, DAMPER MOUNTING (LOWER)
$3.83¢1 915
1
#037
83592-MCA-000
PLATE, DAMPER MOUNTING (LOWER)
$3.83¢1 915
1
#038
89106-MN5-000
(L. SIDE ONLY)
$7.01¢3 507
1
#38
89106-MN5-000
(L. SIDE ONLY)
$7.01¢3 507
1
#39
90651-MFL-670
U-CLIP
$3.58¢1 788
1
#39
90101-MCA-S40
BOLT, TORX (5X16)
$2.15¢1 075
1
#039
90101-MCA-S40
BOLT, TORX (5X16)
$2.15¢1 075
1
#040
90104-964-000
SCREW (5X12)
$2.77¢1 386
1
#40
90104-964-000
SCREW (5X12)
$2.77¢1 386
1
#41
90106-KBV-000
SCREW, PAN (6X14)
$4.36¢2 179
1
#041
90106-KBV-000
SCREW, PAN (6X14)
$4.36¢2 179
1
#042
90106-KJ6-740
CLIP, TUBE
$4.86¢2 432
1
#42
90106-KJ6-740
CLIP, TUBE
$4.86¢2 432
1
#043
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#43
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#044
90109-MCA-000
SCREW, SPECIAL (6MM)
$4.43¢2 214
1
#44
90109-MCA-000
SCREW, SPECIAL (6MM)
$4.43¢2 214
1
#045
90119-MCA-000
SCREW, SPECIAL (6MM)
$4.73¢2 363
1
#45
90119-MCA-000
SCREW, SPECIAL (6MM)
$4.73¢2 363
1
#046
90116-MEW-920
BOLT, SPECIAL (6X8)
$1.38¢690
1
#46
90116-MEW-920
BOLT, SPECIAL (6X8)
$1.38¢690
1
#047
90201-428-900
NUT, CAP
$2.64¢1 322
1
#47
90201-428-900
NUT, CAP
$2.64¢1 322
1
#048
90312-MT3-000
NUT, CLIP (5MM)
$5.11¢2 553
1
#48
90312-MT3-000
NUT, CLIP (5MM)
$5.11¢2 553
1
#049
90320-MM5-000
NUT, SPRING (6MM)
$3.36¢1 679
1
#49
90320-MM5-000
NUT, SPRING (6MM)
$3.36¢1 679
1
#050
90501-MCA-000
COLLAR, SADDLEBAG MOUNTING
$5.63¢2 818
1
#50
90501-MCA-000
COLLAR, SADDLEBAG MOUNTING
$5.63¢2 818
1
#051
90506-430-000
WASHER, FENDER MOUNTING
$3.36¢1 679
1
#51
90506-430-000
WASHER, FENDER MOUNTING
$3.36¢1 679
1
#52
90512-KF9-900
(L. SIDE ONLY)
$3.42¢1 708
1
#052
90512-KF9-900
(L. SIDE ONLY)
$3.42¢1 708
1
#053
90651-MFL-670
U-CLIP
$3.58¢1 788
1
#54
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#054
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#55
91352-GAZ-930
(L. SIDE ONLY)
$2.75¢1 374
1
#055
91352-GAZ-930
(L. SIDE ONLY)
$2.75¢1 374
1
#56
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
1
#056
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
1
#57
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#057
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#058
93901-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#58
93901-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#59
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#059
93903-24280
SCREW, TAPPING (4X10)
$1.60¢799
1
#060
93903-25180
SCREW, TAPPING (5X10)
$1.07¢535
1
#60
93903-25180
SCREW, TAPPING (5X10)
$1.07¢535
1
#061
93903-25280
SCREW, TAPPING (5X12)
$1.53¢765
1
#61
93903-25280
SCREW, TAPPING (5X12)
$1.53¢765
1
#062
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#62
93903-25380
SCREW, TAPPING (5X16)
$1.07¢535
1
#063
94050-05000
NUT, FLANGE (5MM)
$1.54¢771
1
#63
94050-05000
NUT, FLANGE (5MM)
$1.54¢771
1
#064
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#64
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#65
96001-06030-00
BOLT, FLANGE (6X30)
$1.66¢828
1
#065
96001-06030-00
BOLT, FLANGE (6X30)
$1.66¢828
1
#66
17215-MG9-950
CLAMP A, TUBE
$4.38¢2 191
1
#066
17215-MG9-950
CLAMP A, TUBE
$4.38¢2 191
1
#067
64121-MBG-000
RUBBER, PROTECTOR
$2.42¢1 208
1
#67
64121-MBG-000
RUBBER, PROTECTOR
$2.42¢1 208
1
