HANDLE SWITCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

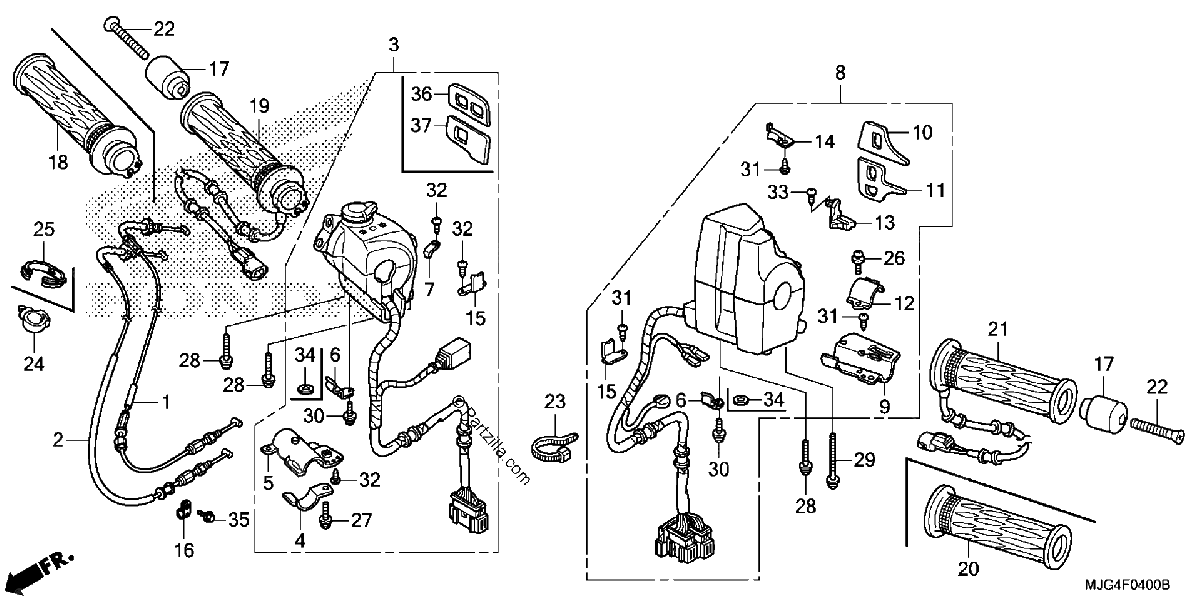

Diagrama de HANDLE SWITCH

Repuestos

#001
17910-MCA-A60
CABLE A, THROTTLE
$23.91¢11 954
1
#1
17910-MCA-A60
CABLE A, THROTTLE
$23.91¢11 954
1
#2
17920-MCA-A60
CABLE B, THROTTLE
$48.56¢24 282
1
#002
17920-MCA-A60
CABLE B, THROTTLE
$48.56¢24 282
1
#3
35130-MJG-A11
SWITCH Assembly., STARTER & STOP &CRUISE
$362.17¢181 085
1
#003
35130-MJG-A11
SWITCH Assembly., STARTER & STOP &CRUISE
$362.17¢181 085
1
#004
35132-MCA-003
PLATE A, STOP SWITCH SETTING
$6.26¢3 128
1
#4
35132-MCA-003
PLATE A, STOP SWITCH SETTING
$6.26¢3 128
1
#5
35133-MCA-003
PLATE B, STOP SWITCH SETTING
$6.55¢3 278
1
#005
35133-MCA-003
PLATE B, STOP SWITCH SETTING
$6.55¢3 278
1
#7
35146-MCA-A20
CLAMP, WIRE (D)
$1.44¢719
1
#007
35146-MCA-A20
CLAMP, WIRE (D)
$1.44¢719
1
#008
35200-MJG-A11
SWITCH ASSY., TURN SIGNAL AUDIO
$579.99¢289 995
1
#8
35200-MJG-A11
SWITCH ASSY., TURN SIGNAL AUDIO
$579.99¢289 995
1
#9
35202-MCA-003
PLATE SET A, TURN SIGNAL
$6.73¢3 364
1
#009
35202-MCA-003
PLATE SET A, TURN SIGNAL
$6.73¢3 364
1
#10
35205-MCA-S40
PLATE, ORNAMENT (C)
$4.54¢2 271
1
#010
35205-MCA-S40
PLATE, ORNAMENT (C)
$4.54¢2 271
1
#011
35206-MCA-A20
PLATE, ORNAMENT (D)
$5.92¢2 961
1
#11
35206-MCA-A20
PLATE, ORNAMENT (D)
$5.92¢2 961
1
#12
35207-MCA-003
PLATE SET B, TURN SIGNAL
$3.71¢1 857
1
#012
35207-MCA-003
PLATE SET B, TURN SIGNAL
$3.71¢1 857
1
#13
35215-MCA-A20
LENS (LOWER)
$15.98¢7 993
1
#013
35215-MCA-A20
LENS (LOWER)
$15.98¢7 993
1
#014
35217-MCA-S40
CLAMP, WIRE
$1.44¢719
1
#14
35217-MCA-S40
CLAMP, WIRE
$1.44¢719
1
#015
35218-MCA-A20
CLAMP, WIRE
$1.44¢719
1
#15
35218-MCA-A20
CLAMP, WIRE
$1.44¢719
1
#016
50153-MCA-A60
CLAMP, THROTTLE CABLE
$1.12¢558
1
#16
50153-MCA-A60
CLAMP, THROTTLE CABLE
$1.12¢558
1
#017
53105-MK4-620
WEIGHT, HANDLEBAR
$16.04¢8 021
1
#17
53105-MK4-620
WEIGHT, HANDLEBAR
$16.04¢8 021
1
#018
53145-MCA-000
GRIP, Right.
$36.75¢18 377
1
#018
53145-MJG-305
GRIP, R. (COO)
$36.75¢18 377
1
#18
53145-MJG-305
GRIP, R. (COO)
$36.75¢18 377
1
#020
53166-MCA-000
GRIP, L HANDLE
$16.73¢8 366
1
#20
53166-MJG-305
GRIP, L HANDLE (COO)
$16.73¢8 366
1
#020
53166-MJG-305
GRIP, L HANDLE (COO)
$16.73¢8 366
1
#22
90191-KBG-000
SCREW, OVAL (6X65)
$5.51¢2 754
1
#022
90191-KBG-000
SCREW, OVAL (6X65)
$5.51¢2 754
1
#023
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#23
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#024
90652-HC4-003
CLAMP, HARNESS
$6.64¢3 318
1
#24
90652-HC4-003
CLAMP, HARNESS
$6.64¢3 318
1
#26
93892-05010-08
SCREW-WASHER (5X10)
$1.36¢678
1
#026
93892-05010-08
SCREW-WASHER (5X10)
$1.36¢678
1
#27
93892-05020-08
SCREW-WASHER (5X20)
$1.28¢638
1
#027
93892-05020-08
SCREW-WASHER (5X20)
$1.28¢638
1
#028
93892-05025-07
SCREW-WASHER (5X25)
$1.28¢638
1
#28
93892-05025-07
SCREW-WASHER (5X25)
$1.28¢638
1
#29
93892-05045-07
SCREW-WASHER (5X45)
$1.53¢765
1
#029
93892-05045-07
SCREW-WASHER (5X45)
$1.53¢765
1
#30
93893-04008-07
SCREW-WASHER (4X8)
$0.86¢431
1
#030
93893-04008-07
SCREW-WASHER (4X8)
$0.86¢431
1
#030
93893-04008-17
SCREW-WASHER (4X8)
$1.58¢788
1
#30
93893-04008-17
SCREW-WASHER (4X8)
$1.58¢788
1
#31
93901-32120
SCREW, TAPPING (3X8)
$0.93¢466
1
#031
93901-32120
SCREW, TAPPING (3X8)
$0.93¢466
1
#032
93901-32220
SCREW, TAPPING (3X10)
$1.07¢535
1
#32
93901-32220
SCREW, TAPPING (3X10)
$1.07¢535
1
#033
93901-32320
SCREW, TAPPING (3X12)
$1.02¢512
1
#33
93901-32320
SCREW, TAPPING (3X12)
$1.02¢512
1
#035
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
#35
96001-06016-00
BOLT, FLANGE (6X16)
$1.24¢621
1
#036
35134-MCA-A20
PLATE, ORNAMENT (A)
$3.36¢1 679
1
#36
35134-MCA-A20
PLATE, ORNAMENT (A)
$3.36¢1 679
1
#037
35135-MJG-A10
PLATE, ORNAMENT (B)
$4.21¢2 105
1
#37
35135-MJG-A10
PLATE, ORNAMENT (B)
$4.21¢2 105
1
