MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

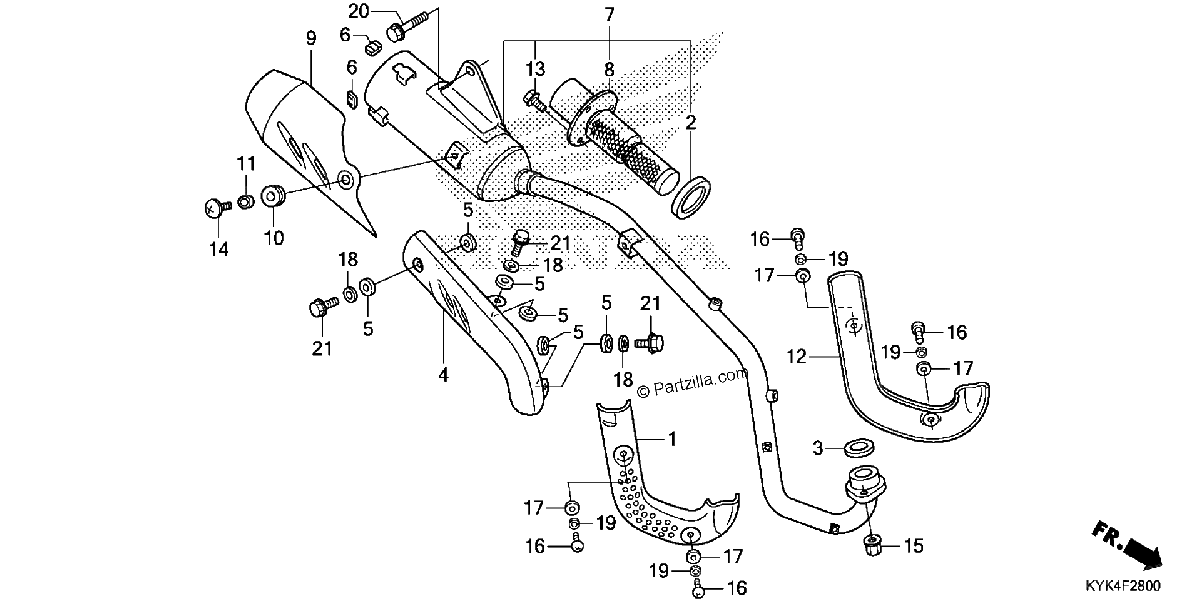

Diagrama de MUFFLER

Repuestos

#1
18240-KYK-910
COVER A, EX. PIPE
$52.34¢26 169
1
#2
18291-KR1-680
GASKET A, EX PIPE
$10.16¢5 081
1
#3
18291-GE2-920
GASKET, EX. PIPE
$7.85¢3 925
1
#3
18291-KVR-C00
GASKET, EX. PIPE
$7.85¢3 925
1
#4
18291-KYK-910
COVER C, EX. PIPE
$35.13¢17 563
1
#5
18292-KBR-000
GASKET, PROTECTOR
$4.19¢2 094
1
#6
18293-KYY-900
RUBBER, PROTECTOR GASKET
$3.34¢1 669
1
#7
18300-KYK-305
MUFFLER ASSY. (COO)
$441.45¢220 725
1
#8
18317-KYK-305
ARRESTER, SPARK (COO)
$81.11¢40 556
1
#9
18330-KYK-305
COVER, MUFFLER (COO)
$32.79¢16 394
1
#10
18345-KTJ-900
RUBBER, MUFFLER MOUNTING
$4.33¢2 163
1
#11
18422-KTJ-900
COLLAR, MUFFLER MOUNTING
$3.50¢1 750
1
#12
18450-KYK-910
COVER B, EX. PIPE
$22.21¢11 106
1
#13
90101-KCE-000
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#13
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#14
90107-KWK-900
BOLT, BODY COVER SETTING
$3.85¢1 925
1
#15
90301-KWB-600
NUT, FLANGE (8MM)
$1.13¢563
1
#16
93500-05006-0G
SCREW, PAN (5X6)
$1.06¢531
1
#17
94101-05700
WASHER, PLAIN (5MM)
$1.27¢638
1
#18
94101-06700
WASHER, PLAIN (6MM)
$1.21¢606
1
#19
94111-05700
WASHER, SPRING (5MM)
$1.45¢725
1
#20
95701-08035-00
BOLT, FLANGE (8X35)
$2.95¢1 475
1
#21
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
