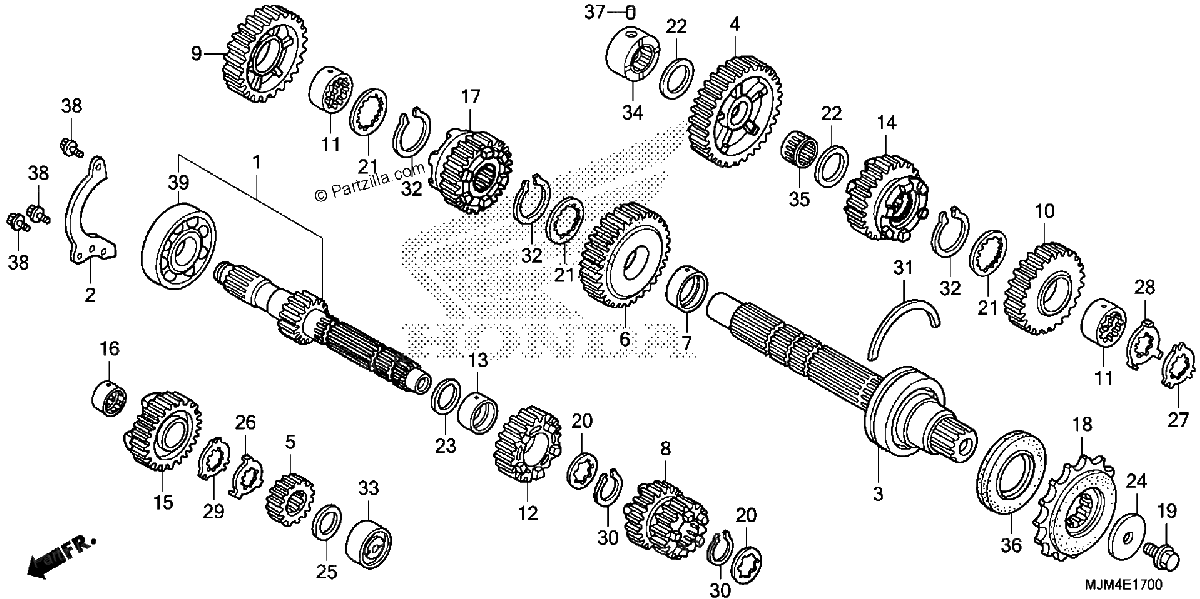

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
MAINSHAFT (13T)
$211.66¢105 829
#2
PLATE, BEARING SETTING
$14.46¢7 228
#3
COUNTERSHAFT
$287.05¢143 526
#4
GEAR, COUNTERSHAFT FIRST (37T)
$131.93¢65 964
#5
GEAR, MAINSHAFT SECOND (16T)
$67.38¢33 689
#6
GEAR, COUNTERSHAFT SECOND (33T)
$140.00¢70 000
#7
COLLAR (28MM)
$33.09¢16 543
#8
GEAR, MAINSHAFT THIRD FOURTH (19T/24T)
$150.48¢75 239
#9
GEAR, COUNTERSHAFT THIRD (30T)
$125.88¢62 939
#10
GEAR, COUNTERSHAFT FOURTH (31T)
$125.88¢62 939
#11
COLLAR, SPLINE (28X9.6)
$27.28¢13 639
#12
GEAR, MAINSHAFT FIFTH (27T)
$122.87¢61 433
#13
COLLAR (25X12)
$31.07¢15 536
#14
GEAR, COUNTERSHAFT FIFTH (30T)
$142.16¢71 081
#15
GEAR, MAINSHAFT SIXTH (29T)
$76.01¢38 007
#16
COLLAR, SPLINE
$36.35¢18 176
#17
GEAR, COUNTERSHAFT SIXTH (28T)
$151.24¢75 618
#18
SPROCKET, DRIVE (16T)
$79.90¢39 951
#19
BOLT, SPECIAL (10MM)
$8.18¢4 088
#20
WASHER, SPLINE (25X31X1.5)
$4.25¢2 128
#21
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
#22
WASHER B, THRUST (22MM) (BLUE)
$5.43¢2 714
#23
WASHER, THRUST (25MM)
$3.00¢1 501
#24
WASHER (10.2MM)
$6.51¢3 254
#25
WASHER A, THRUST (20MM)
$5.92¢2 961
#26
WASHER, LOCK (25MM)
$13.03¢6 515
#27
WASHER, SPLINE (28MM)
$12.52¢6 262
#28
WASHER, LOCK (28MM)
$12.52¢6 262
#29
WASHER, SPLINE (25MM)
$12.33¢6 164
#30
CIRCLIP (25MM)
$4.17¢2 087
#31
RING SET (68MM)
$10.12¢5 060
#32
CIRCLIP (28MM)
$4.17¢2 087
#33
BEARING, NEEDLE (20MM)
$27.13¢13 564
#34
BEARING, NEEDLE (22MM)
$34.29¢17 147
#35
BEARING, NEEDLE (22X26X11)
$17.16¢8 579
#36
OIL SEAL (40X68X7.2) (ARAI)
No Disponible
#37
PIN B, DOWEL (8X10)
$2.66¢1 328
#38
BOLT, FLANGE (6X14)
$1.13¢564
#39
BEARING, RADIAL BALL (6305)
$16.32¢8 159
