REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

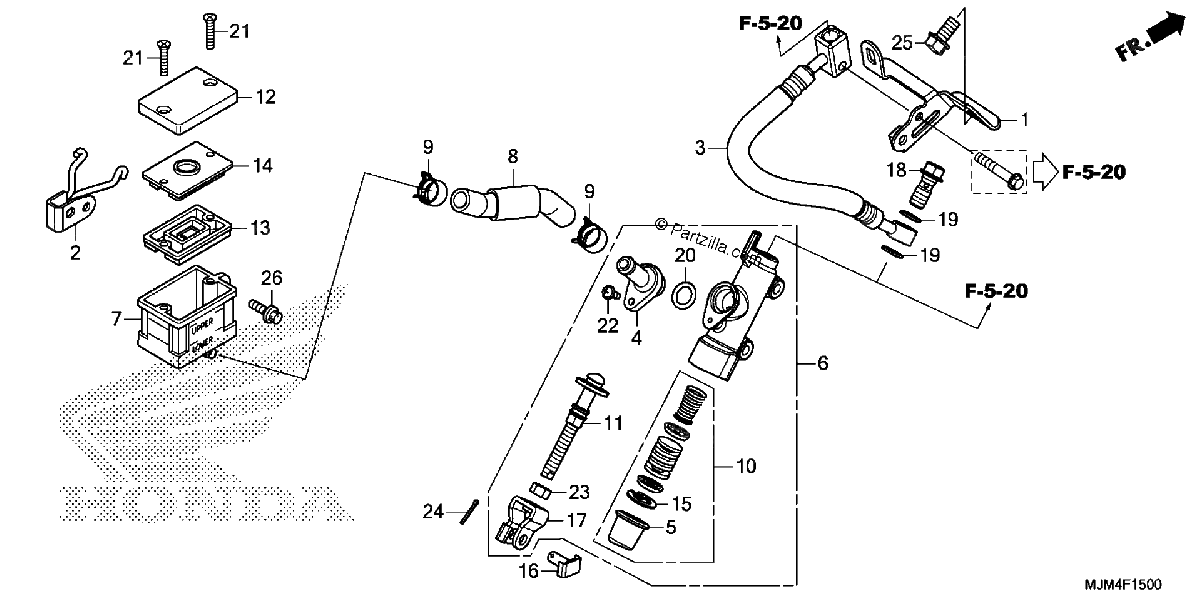

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#1
43160-MJM-D00
STAY A, RR. BRAKE PIPE
$21.86¢10 931
1
#2
43163-MJM-D10
GUIDE, RR. BRAKE HOSE
$16.13¢8 063
1
#4
43503-HB5-006
CONNECTOR
$12.81¢6 406
1
#5
43504-MB2-006
BOOT
$11.74¢5 869
1
#6
43510-MJM-305
MASTER CYLINDER SUB-ASSY., RR. (COO)
$243.24¢121 619
1
#7
43511-KT8-006
CUP, OIL
$46.06¢23 031
1
#8
43512-MJM-D01
HOSE, RR. MASTER CYLINDER
$17.56¢8 781
1
#9
43514-445-771
CLAMP, MASTER CYLINDER OIL HOSE
$16.57¢8 288
1
#10
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
1
#11
43530-MGY-641
ROD, PUSH
$35.65¢17 825
1
#12
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
1
#12
45513-KK1-771
CAP, MASTER CYLINDER
$5.04¢2 519
1
#13
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#14
45521-HA2-006
PLATE, DIAPHRAGM
$12.60¢6 300
1
#15
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#16
46503-MAL-000
PIN, BRAKE ROD
$7.72¢3 863
1
#17
46504-MAL-601
JOINT, BRAKE ROD
$17.25¢8 625
1
#20
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#21
93600-04040-1G
SCREW, FLAT (4X40)
$0.61¢306
1
#22
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#22
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#23
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#24
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#25
95701-08016-08
BOLT, FLANGE (8X16)
$2.15¢1 075
1
#26
96001-06016-07
BOLT, FLANGE (6X16)
$1.35¢675
1
