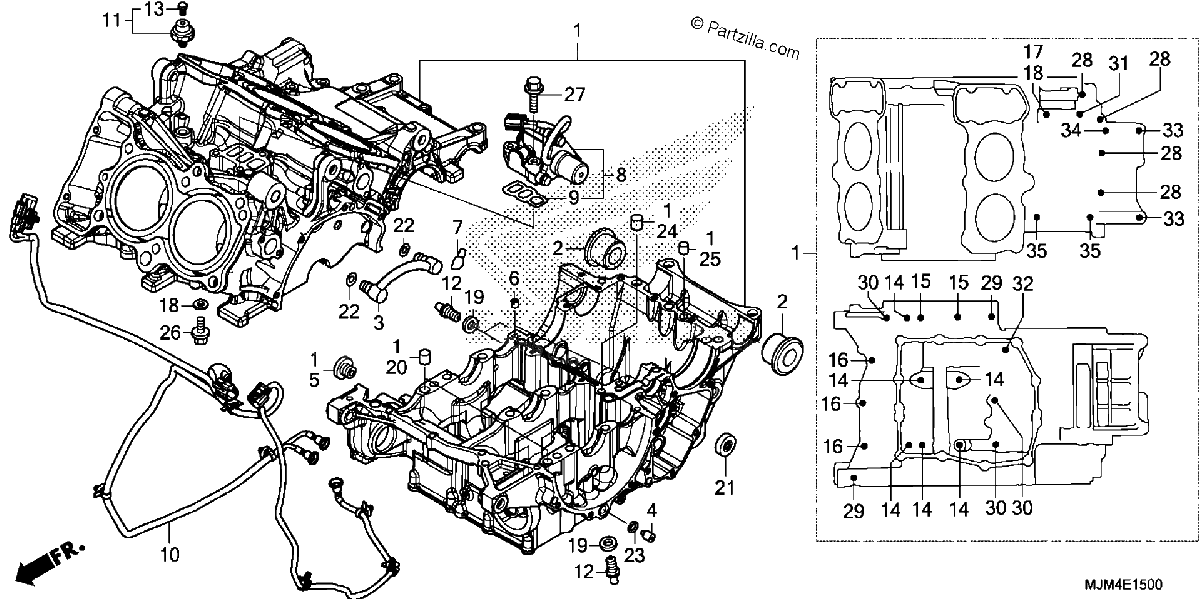

CRANKCASE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
CRANKCASE SET
$3525.09¢1 762 544
#2
COLLAR, PIVOT
$25.78¢12 888
#3
PIPE, OIL PASSAGE
$65.45¢32 725
#4
ORIFICE, ALTERNATOR COVER
$11.31¢5 656
#5
BOLT, SEALING (20MM)
$11.74¢5 869
#6
ORIFICE (1.2MM)
$9.94¢4 969
#7
JET, OIL (0.7MM)
$17.41¢8 706
#8
VALVE ASSY., SPOOL
$224.46¢112 231
#9
FILTER ASSY., SPOOL VALVE
$34.58¢17 288
#10
SUB-WIRE HARNESS, ENGINE
$124.39¢62 194
#11
SWITCH ASSY., OIL PRESSURE (DENSO)
$62.93¢31 463
#12
SWITCH ASSY., NEUTRAL
$25.29¢12 644
#13
BOLT-WASHER (4X8) (DENSO)
$7.54¢3 769
#14
BOLT, FLANGE (9X90)
$16.90¢8 450
#15
BOLT, FLANGE (9X105)
$16.90¢8 450
#16
BOLT, FLANGE (7X30)
$3.36¢1 681
#17
BOLT, FLANGE (6X85)
$6.38¢3 188
#18
WASHER, SEALING (6.5MM)
$3.65¢1 825
#19
WASHER, OIL BOLT
$4.85¢2 425
#20
PIN, DOWEL (10X16)
$5.21¢2 606
#21
OIL SEAL (8X25X8) (ARAI)
$4.91¢2 456
#22
O-RING (9.6X2.6) (ARAI)
$2.99¢1 494
#23
O-RING (7.7X2.3) (ARAI)
$3.65¢1 825
#23
O-RING (7.8X2.2)
$4.30¢2 150
#23
O-RING (7.8X2.2) (ARAI)
$4.30¢2 150
#24
PIN, DOWEL (10X16)
$2.92¢1 463
#25
PIN B, DOWEL (8X14)
$2.75¢1 375
#26
BOLT, FLANGE (6X12)
$2.09¢1 044
#27
BOLT, FLANGE (6X25)
$2.31¢1 156
#28
BOLT, FLANGE (6X40)
$2.41¢1 206
#29
BOLT, FLANGE (6X50)
$2.66¢1 331
#30
BOLT, FLANGE (6X60)
$0.39¢194
#31
BOLT, FLANGE (6X65)
$1.95¢975
#32
BOLT, FLANGE (6X70)
$2.95¢1 475
#33
BOLT, FLANGE (10X55)
$5.39¢2 694
#34
BOLT, FLANGE (10X65)
$4.22¢2 113
#35
BOLT, FLANGE (10X75)
$3.14¢1 569
