TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

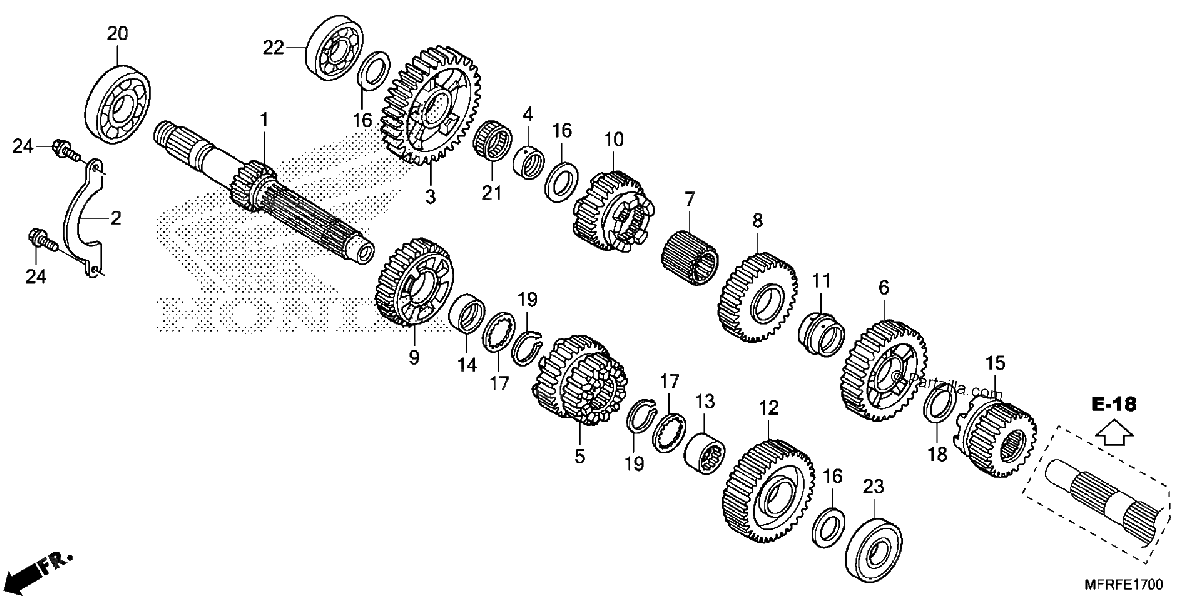

Diagrama de TRANSMISSION

Repuestos

#1
23210-MEA-670
MAINSHAFT (20T)
$205.82¢102 908
1
#2
23212-MCH-000
PLATE A, BEARING SETTING
$7.52¢3 760
1
#3
23421-MEA-A50
GEAR, COUNTERSHAFT FIRST (38T)
$144.37¢72 186
1
#4
23422-MCH-000
COLLAR
$11.12¢5 560
1
#5
23431-MFR-670
GEAR, MAINSHAFT SECOND THIRD (26T/33T)
$169.64¢84 818
1
#6
23441-MEA-A50
GEAR, COUNTERSHAFT SECOND (32T)
$132.54¢66 269
1
#7
23442-MCH-010
COLLAR, SPLINE
$24.12¢12 058
1
#8
23461-MFR-670
GEAR, COUNTERSHAFT THIRD (30T)
$141.62¢70 811
1
#9
23471-MFR-670
GEAR, MAINSHAFT FOURTH (37T)
$144.07¢72 036
1
#10
23481-MFR-670
GEAR, COUNTERSHAFT FOURTH (28T)
$153.04¢76 521
1
#11
23482-MCH-000
COLLAR
$29.04¢14 519
1
#12
23491-MFR-670
GEAR, MAINSHAFT FIFTH (34T)
$137.88¢68 943
1
#13
23492-MCH-000
COLLAR, SPLINE (28X22.7)
$18.34¢9 171
1
#14
23495-MM5-000
COLLAR (28X13)
$27.24¢13 622
1
#15
23501-MFR-670
GEAR, COUNTERSHAFT FIFTH (23T)
$132.99¢66 493
1
#16
52143-KZ3-860
WASHER, SWINGARM SIDE
$3.60¢1 800
1
#17
90452-MR7-000
WASHER, SPLINE (28X34X1.5)
$7.50¢3 749
1
#18
90501-752-A10
WASHER, THRUST (30X38X1)
$5.26¢2 628
1
#19
90603-MN4-000
CIRCLIP (28MM)
$4.17¢2 087
1
#20
91001-KY0-891
BEARING, RADIAL BALL (63/28) (FUJIKOSHI)
$26.94¢13 472
1
#21
91001-MCH-003
BEARING, NEEDLE (26X30X13)
$13.10¢6 549
1
#22
91001-MN8-911
BEARING, RADIAL BALL (63/22) (FUJIKOSHI)
$26.04¢13 018
1
#22
91002-KY4-901
BEARING, RADIAL BALL (63/22)
$26.04¢13 018
1
#23
91002-MCH-003
BEARING, RADIAL BALL (63/22U) (KOYO)
$32.59¢16 295
1
#24
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
