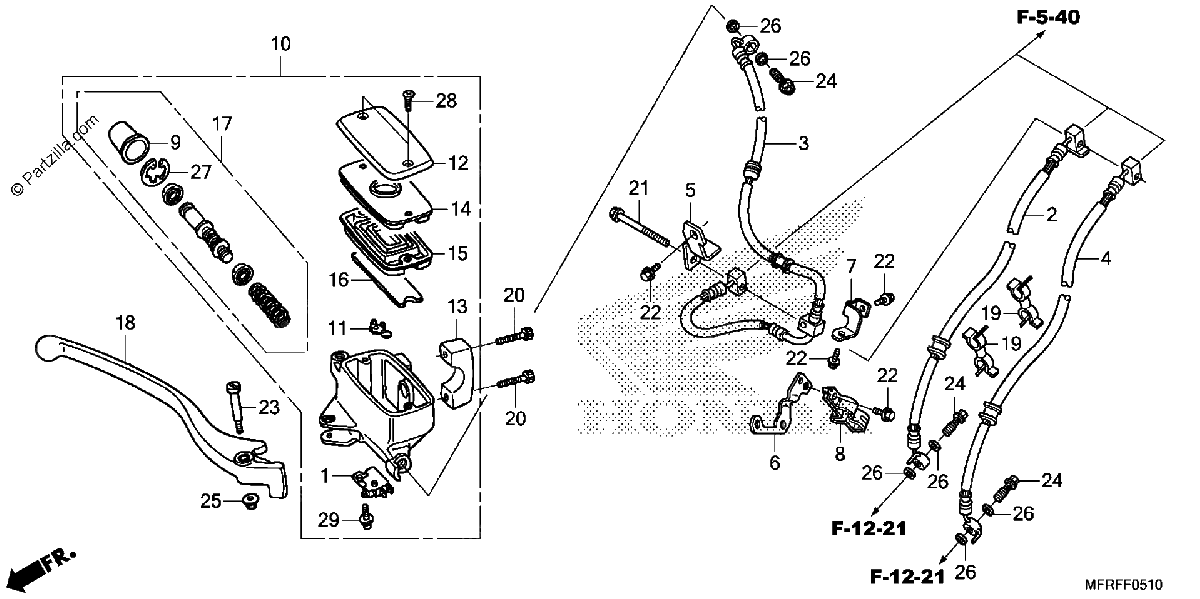

FRONT BRAKE MASTER CYLINDER 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SWITCH ASSY., FR. STOP
$16.70¢8 350
#2
HOSE C, SUB-BRAKE
$82.30¢41 150
#3
HOSE A, FR. BRAKE
$127.09¢63 544
#4
HOSE F, FR. BRAKE
$71.85¢35 925
#5
STAY, BRAKE JOINT
$11.89¢5 944
#6
BRACKET, L. FR. BRAKE HOSE
$10.06¢5 031
#7
STAY, L. FR. BRAKE HOSE
$4.30¢2 150
#8
CLAMP, FR. BRAKE HOSE
$11.57¢5 788
#9
BOOT
$14.24¢7 119
#10
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$341.25¢170 625
#11
PROTECTOR
$5.20¢2 600
#12
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
#12
CAP, MASTER CYLINDER (NISSIN)
$35.54¢17 769
#13
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
#13
HOLDER, MASTER CYLINDER (NISSIN)
$31.63¢15 813
#14
PLATE, DIAPHRAGM
$12.36¢6 181
#15
DIAPHRAGM
$17.68¢8 838
#16
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.45¢2 725
#17
MASTER CYLINDER SET
$46.40¢23 200
#18
LEVER, R. HANDLE (COO)
$21.78¢10 888
#18
LEVER, R. HANDLE (COO)
$19.06¢9 531
#19
CLIP, SENSOR HOSE
$4.22¢2 113
#19
CLIP, SENSOR HOSE
$4.22¢2 113
#20
BOLT, SOCKET (6X22)
$1.86¢931
#21
BOLT, FLANGE (6X45) (SH)
$3.49¢1 744
#22
BOLT, FLANGE (6X10)
$1.74¢869
#23
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
#24
BOLT, OIL (10X22)
$8.89¢4 444
#25
NUT, CAP (6MM)
$2.76¢1 381
#26
WASHER, OIL BOLT
$4.85¢2 425
#27
CIRCLIP
$3.10¢1 550
#28
SCREW, FLAT (4X12)
$1.16¢581
#28
SCREW, FLAT (4X12)
$0.80¢400
#28
SCREW, FLAT (4X12)
$1.16¢581
#29
SCREW-WASHER (4X12)
$1.72¢862
#29
SCREW-WASHER (4X12)
$1.72¢862
