EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

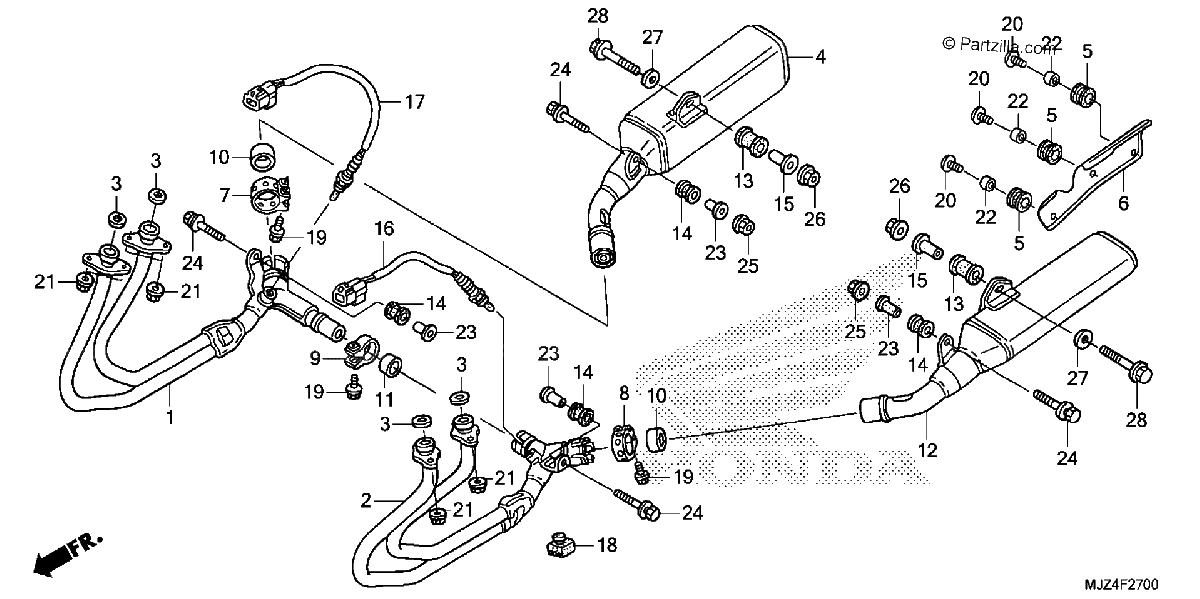

Diagrama de EXHAUST MUFFLER

Repuestos

#1
18150-MCS-G01
PIPE, R. EX.
$508.69¢254 344
1
#2
18170-MCS-G01
PIPE, L. EX.
$508.69¢254 344
1
#3
18291-MN4-920
GASKET, EX. PIPE
$6.44¢3 219
1
#4
18310-MCS-305
MUFFLER, R. (COO)
$1586.31¢793 156
1
#4
18310-MCS-D91
MUFFLER, R.
$1586.31¢793 156
1
#5
18316-KFT-620
RUBBER, PROTECTOR
$3.20¢1 600
1
#6
18345-MCS-760
COVER, MUFFLER
$189.69¢94 844
1
#7
18371-MAT-000
BAND, MUFFLER
$36.29¢18 144
1
#8
18372-MAT-000
BAND, MUFFLER
$38.55¢19 275
1
#9
18373-413-000
BAND, R. FR. MUFFLER
$50.13¢25 063
1
#10
18391-ML0-003
GASKET, MUFFLER
$34.01¢17 006
1
#11
18392-MK4-000
GASKET, MUFFLER
$15.97¢7 988
1
#12
18410-MCS-305
MUFFLER, L. (COO)
$1657.89¢828 944
1
#12
18410-MCS-D91
MUFFLER, L.
$1657.89¢828 944
1
#13
18421-MCS-760
RUBBER, MUFFLER MOUNTING
$12.72¢6 363
1
#14
18422-MCS-760
RUBBER, EX. PIPE MOUNTING
$14.07¢7 038
1
#15
18424-MN5-000
COLLAR, CHAMBER MOUNTING
$9.99¢4 994
1
#16
36531-MCS-D91
SENSOR, OXYGEN (1-3)
$291.38¢145 688
1
#17
36532-MCS-D91
SENSOR, OXYGEN (2-4)
$291.38¢145 688
1
#18
50505-MCS-760
RUBBER, STAND STOPPER
$21.27¢10 638
1
#19
90103-KCM-620
BOLT, FLANGE (8X35)
$2.03¢1 013
1
#20
90118-MR1-000
SCREW, PAN (6X14)
$3.75¢1 875
1
#21
90304-MM5-000
NUT, FLANGE (7MM)
$5.99¢2 994
1
#22
90325-197-000
COLLAR, RR. SPLASH GUARD
$4.39¢2 194
1
#23
90501-438-000
COLLAR (6X14.8)
$6.13¢3 063
1
#24
93404-06028-00
BOLT-WASHER (6X28)
$1.25¢625
1
#25
94050-06000
NUT, FLANGE (6MM)
$0.80¢400
1
#26
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#27
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#28
96300-08045-00
BOLT, FLANGE (8X45)
$2.69¢1 344
1
