REAR WHEEL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

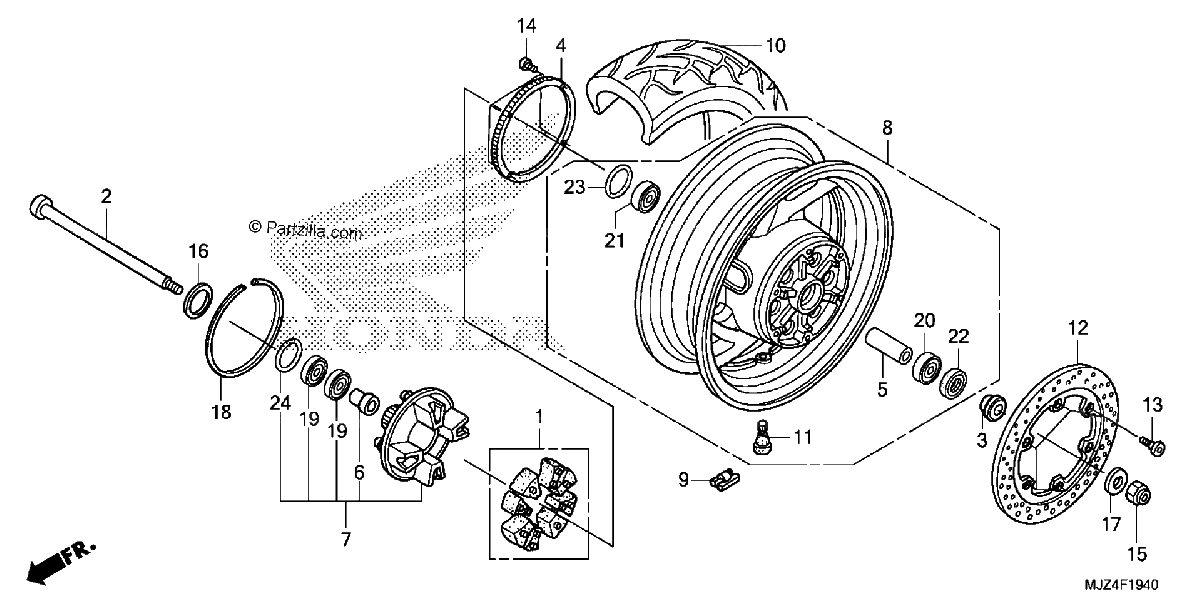

Diagrama de REAR WHEEL

Repuestos

#1
06410-MCS-G00
DAMPER SET, WHEEL
$29.16¢14 581
1
#2
42301-MCS-G00
AXLE, RR. WHEEL
$71.89¢35 944
1
#3
42311-MCS-G00
COLLAR, RR. WHEEL SIDE
$23.71¢11 856
1
#4
42515-MCS-G00
RING, RR. PULSER
$215.96¢107 981
1
#5
42620-MT3-000
COLLAR, RR. AXLE DISTANCE
$29.04¢14 519
1
#6
42624-MCH-000
COLLAR A, RR. AXLE DISTANCE
$16.75¢8 375
1
#7
42630-MCS-G00
FLANGE SET, FINAL DRIVEN
$482.25¢241 125
1
#8
42650-MCS-306
WHEEL SUB-ASSY., RR. (COO)
$1239.94¢619 969
1
#8
42650-MCS-760
WHEEL SUB-ASSY., RR.
$1239.94¢619 969
1
#9
42704-MCF-D60
WEIGHT, BALANCE (10G)
$14.79¢7 394
1
#9
42705-MCF-D60
WEIGHT, BALANCE (20G)
$19.80¢9 900
1
#9
42706-MCF-D60
WEIGHT, BALANCE (30G)
$16.81¢8 406
1
#10
42711-MCS-G04
TIRE, RR. (170/60ZR17 M/C 72W) (BS)
$356.26¢178 131
1
#11
42753-ML7-003
VALVE, RIM (BS)
$14.79¢7 394
1
#12
43351-MCS-G00
DISK, RR. BRAKE
$522.99¢261 494
1
#13
90105-MV9-003
BOLT, BRAKE DISK (8X24) (TSUKIBOSHI)
$7.52¢3 762
1
#14
90131-MY3-781
BOLT, TORX (5X14)
$3.71¢1 856
1
#15
90306-MCS-G01
NUT, U (18MM)
$8.26¢4 131
1
#16
90401-MAS-000
WASHER (20X31.5X2)
$3.89¢1 944
1
#17
90432-MCS-G00
WASHER, SPECIAL (18MM)
$3.69¢1 844
1
#18
90651-MCH-000
CIRCLIP (INNER) (188)
$22.81¢11 406
1
#19
91052-KZ4-J21
BEARING, RADIAL BALL (6905RS)
$20.15¢10 075
1
#20
91052-MAE-004
BEARING, RADIAL BALL (6204UU)
$32.17¢16 087
1
#21
91053-MN5-003
BEARING, RADIAL BALL (20X47X20.6) (NTN)
$87.01¢43 506
1
#22
91251-MCS-G01
DUST SEAL (30X47X13)
$11.68¢5 838
1
#23
91302-MA6-003
O-RING (61X2)
$6.26¢3 131
1
#24
91358-MG9-003
O-RING (50.5X3.5) (ARAI)
$4.56¢2 281
1
#24
91358-MG9-004
O-RING (50.5X3.5) (NOK)
$4.56¢2 281
1
