LEFT CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

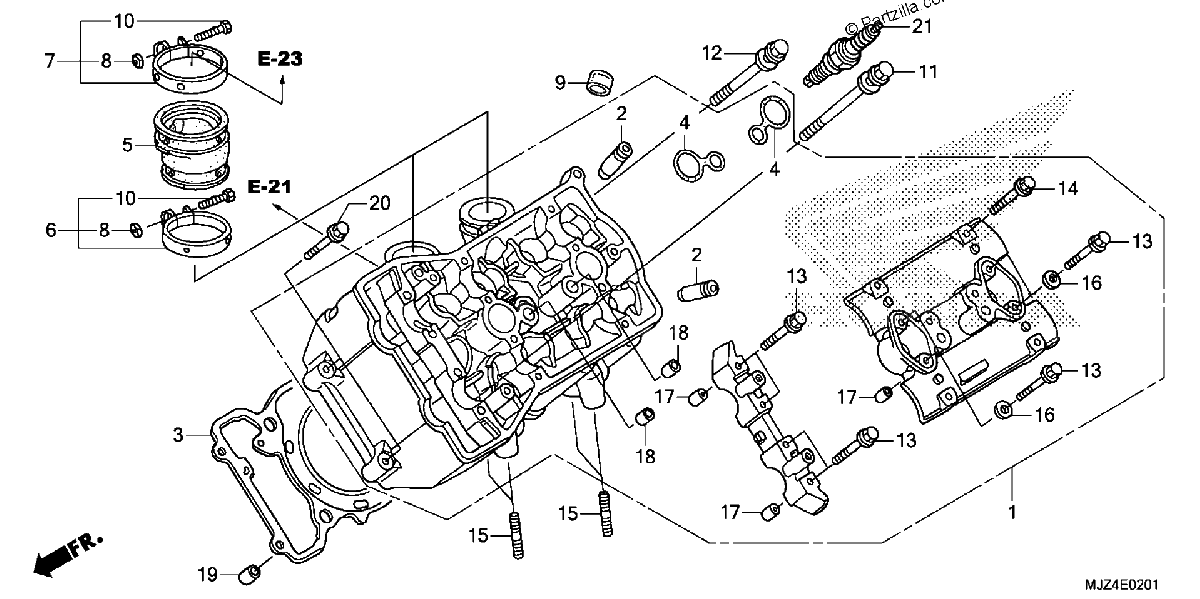

Diagrama de LEFT CYLINDER HEAD

Repuestos

#1
12020-MCS-D81
CYLINDER HEAD ASSY., L.
$1257.36¢628 682
1
#2
12205-MCS-305
GUIDE, VALVE (OVER SIZE)
$20.55¢10 275
1
#3
12252-MCS-D81
GASKET, L. CYLINDER HEAD
$65.93¢32 965
1
#4
12395-MCS-000
GASKET, PLUG HOLE
$5.80¢2 898
1
#5
16211-MCS-000
INSULATOR, THROTTLE BODY
$24.24¢12 121
1
#6
16217-MCS-000
BAND A, INSULATOR
$5.09¢2 547
1
#7
16218-MCS-000
BAND B, INSULATOR
$5.88¢2 938
1
#8
16222-MV4-300
NUT, SQUARE (5MM)
$2.54¢1 271
1
#9
46515-MN1-670
TUBE, BRAKE PEDAL SPRING
$3.86¢1 932
1
#10
90005-MAS-E00
BOLT, RECESSED (5X28)
$3.79¢1 897
1
#11
90007-MAT-000
BOLT-WASHER (10X105)
$12.78¢6 388
1
#12
90007-MCS-000
BOLT-WASHER (10X90)
$6.58¢3 289
1
#13
90018-425-000
BOLT, FLANGE (6X48)
$3.74¢1 869
1
#14
90019-MA6-000
BOLT, FLANGE (6X39.5)
$3.36¢1 679
1
#15
90035-MM5-000
BOLT, STUD (8X24)
$5.70¢2 852
1
#16
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.36¢1 679
1
#17
90702-HC4-000
PIN, DOWEL (8X16)
$2.47¢1 236
1
#17
94301-08160
PIN, DOWEL (8X16)
$2.47¢1 236
1
#18
94301-10160
PIN, DOWEL (10X16)
$2.69¢1 346
1
#19
94301-12200
PIN, DOWEL (12X20)
$2.71¢1 357
1
#20
95701-06040-00
BOLT, FLANGE (6X40)
$2.22¢1 110
1
#21
98059-57916
SPARK PLUG (CR7EH9) (NGK)
$8.33¢4 163
1
#21
98059-57926
SPARK PLUG (U22FER9) (DENSO)
$8.75¢4 376
1
#21
98059-58916
SPARK PLUG (CR8EH9) (NGK)
$8.75¢4 376
1
#21
98059-58926
SPARK PLUG (U24FER9) (DENSO)
$8.75¢4 376
1
#21
98059-59910
SPARK PLUG (CR9EH9) (NGK)
$8.75¢4 376
1
#21
98059-59916
SPARK PLUG (CR9EH-9) (NGK)
$8.75¢4 376
1
#21
98059-59926
SPARK PLUG (U27FER9) (DENSO)
$8.75¢4 376
1
