FUEL TANK FUEL PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

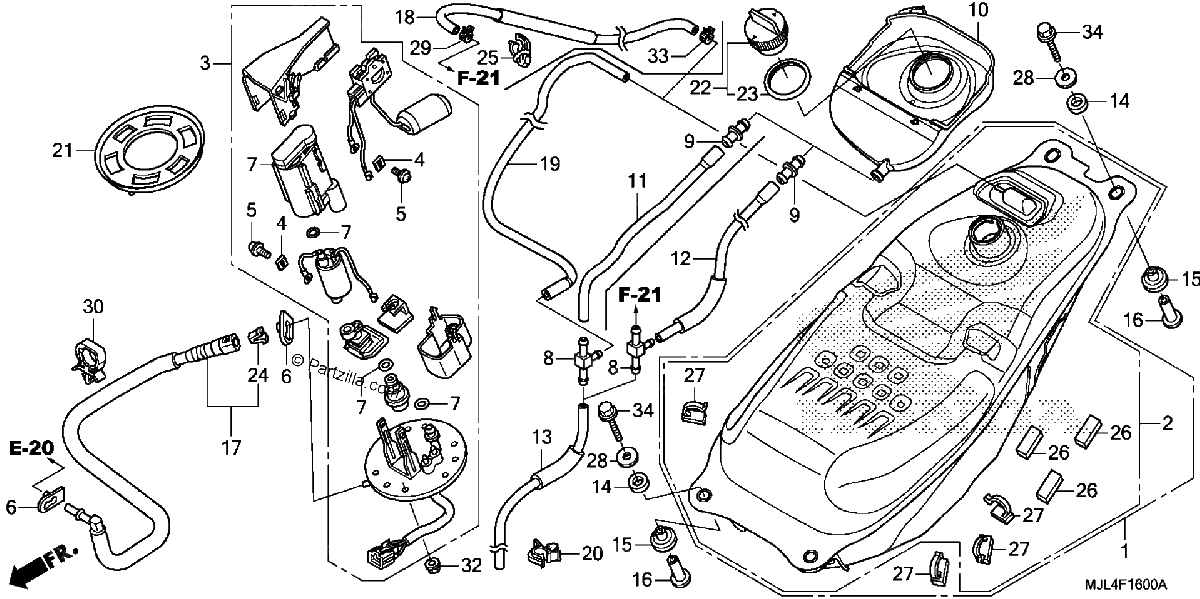

Diagrama de FUEL TANK FUEL PUMP

Repuestos

#2
04801-MGS-T51ZC
TANK Assembly., FUEL NH303M (MAT AXIS GRAY METALLIC)
$1084.36¢542 179
1
#002
04801-MGS-T51ZC
TANK Assembly., FUEL NH303M (MAT AXIS GRAY METALLIC)
$1084.36¢542 179
1
#3
16700-MGS-D33
PUMP ASSY., FUEL (MSDS)
$784.32¢392 161
1
#003
16700-MGS-D33
PUMP ASSY., FUEL (MSDS)
$784.32¢392 161
1
#4
16711-MGS-D31
STOPPER
$5.73¢2 864
1
#004
16711-MGS-D31
STOPPER
$5.73¢2 864
1
#5
16712-MGS-D31
SCREW (4X6.6)
$2.22¢1 110
1
#005
16712-MGS-D31
SCREW (4X6.6)
$2.22¢1 110
1
#6
16719-MEW-920
DAMPER, CONNECTOR
$3.36¢1 679
1
#006
16719-MEW-920
DAMPER, CONNECTOR
$3.36¢1 679
1
#7
16730-MGS-D31
FILTER Assembly., FUEL
No Disponible
1
#007
16730-MGS-D31
FILTER Assembly., FUEL
No Disponible
1
#8
16960-ME9-000
PIPE, THREE WAY JOINT
$17.62¢8 809
1
#008
16960-ME9-000
PIPE, THREE WAY JOINT
$17.62¢8 809
1
#9
17359-419-670
JOINT, BREATHER TUBE
$2.43¢1 213
1
#009
17359-419-670
JOINT, BREATHER TUBE
$2.43¢1 213
1
#10
17507-MGS-D30
TRAY, FUEL TANK
$22.21¢11 103
1
#010
17507-MGS-D30
TRAY, FUEL TANK
$22.21¢11 103
1
#012
17508-MGS-T50
TUBE A, DRAIN
$11.58¢5 790
1
#12
17508-MGS-T50
TUBE A, DRAIN
$11.58¢5 790
1
#13
95005-45001-20M
BULK HOSE, VACUUM (4.5X1000) OEM CUT SIZE: (4.5X600)
$35.66¢17 831
1
#013
95005-45001-20M
BULK HOSE, VACUUM (4.5X1000) OEM CUT SIZE: (4.5X600)
$35.66¢17 831
1
#14
17516-MGS-D30
RUBBER, FUEL TANK MOUNTING (UPPER)
$2.92¢1 461
1
#014
17516-MGS-D30
RUBBER, FUEL TANK MOUNTING (UPPER)
$2.92¢1 461
1
#15
17517-MGS-D30
RUBBER, FUEL TANK MOUNTING (LOWER)
$4.62¢2 311
1
#015
17517-MGS-D30
RUBBER, FUEL TANK MOUNTING (LOWER)
$4.62¢2 311
1
#16
17518-MGS-D30
COLLAR, FUEL TANK
$3.43¢1 713
1
#016
17518-MGS-D30
COLLAR, FUEL TANK
$3.43¢1 713
1
#17
17526-MGS-D31
HOSE, FUEL FEED
$243.89¢121 946
1
#017
17526-MGS-D31
HOSE, FUEL FEED
$243.89¢121 946
1
#18
17530-MGS-A30
TUBE, SEPARATOR BREATHER
$20.67¢10 333
1
#018
17530-MGS-A30
TUBE, SEPARATOR BREATHER
$20.67¢10 333
1
#21
17574-MGS-D30
GASKET, BASE
$26.09¢13 047
1
#021
17574-MGS-D30
GASKET, BASE
$26.09¢13 047
1
#22
17620-KFR-840
CAP, FUEL FILLER
$47.32¢23 661
1
#022
17620-KFR-841
CAP, FUEL FILLER
$47.32¢23 661
1
#022
17620-KFR-840
CAP, FUEL FILLER
$47.32¢23 661
1
#23
17632-383-831
GASKET, FUEL FILLER CAP
No Disponible
1
#023
17632-383-831
GASKET, FUEL FILLER CAP
No Disponible
1
#023
17632-383-832
GASKET, FUEL FILLER CAP
No Disponible
1
#024
17711-MGE-003
RETAINER
$7.07¢3 536
1
#24
17711-MGE-003
RETAINER
$7.07¢3 536
1
#25
17938-SE0-941
CLIP, THROTTLE WIRE
$8.44¢4 220
1
#025
17938-SE0-941
CLIP, THROTTLE WIRE
$8.44¢4 220
1
#026
80129-MEG-000
RUBBER, RR. FRAME
$1.70¢851
1
#26
80129-MEG-000
RUBBER, RR. FRAME
$1.70¢851
1
#27
83705-MZ7-300
CLIP, HARNESS
$8.50¢4 249
1
#027
83705-MZ7-300
CLIP, HARNESS
$8.50¢4 249
1
#28
90404-680-000
WASHER (6.5X25X1.5)
$4.53¢2 266
1
#028
90404-680-000
WASHER (6.5X25X1.5)
$4.53¢2 266
1
#29
90652-KSJ-A21
CLAMP, TUBE (8.0)
$1.71¢857
1
#029
90652-KSJ-A21
CLAMP, TUBE (8.0)
$1.71¢857
1
#32
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#032
94050-06080
NUT, FLANGE (6MM)
$0.74¢368
1
#33
95002-40730-08
CLAMP, TUBE (D7.3)
$3.00¢1 501
1
#033
95002-40730-08
CLAMP, TUBE (D7.3)
$3.00¢1 501
1
#34
95701-06040-08
BOLT, FLANGE (6X40)
$2.17¢1 087
1
#034
95701-06040-08
BOLT, FLANGE (6X40)
$2.17¢1 087
1
