CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

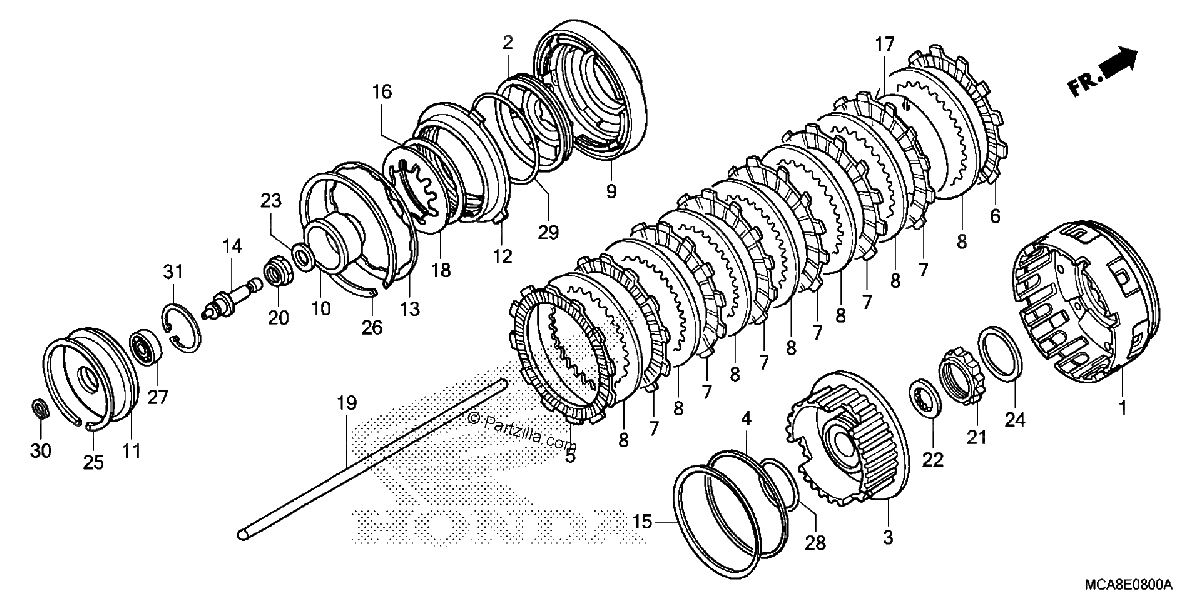

Diagrama de CLUTCH

Repuestos

#1
22100-MCA-780
CLUTCH OUTER
$491.63¢245 813
1
#001
22100-MCA-780
CLUTCH OUTER
$491.63¢245 813
1
#2
22111-MCA-000
PISTON, CLUTCH
$33.52¢16 763
1
#002
22111-MCA-000
PISTON, CLUTCH
$33.52¢16 763
1
#3
22120-MCA-000
CENTER, CLUTCH
$119.61¢59 806
1
#003
22120-MCA-000
CENTER, CLUTCH
$119.61¢59 806
1
#4
22125-MCA-000
SEAT, JUDDER SPRING
$14.39¢7 194
1
#004
22125-MCA-000
SEAT, JUDDER SPRING
$14.39¢7 194
1
#5
22201-MCA-000
DISK, CLUTCH FRICTION
$20.94¢10 469
1
#005
22201-MCA-000
DISK, CLUTCH FRICTION
$20.94¢10 469
1
#006
22202-MAT-000
DISK B, CLUTCH FRICTION
$24.88¢12 438
1
#6
22202-MAT-000
DISK B, CLUTCH FRICTION
$24.88¢12 438
1
#7
22203-MCA-000
DISK A, CLUTCH FRICTION
$21.97¢10 987
1
#007
22203-MCA-000
DISK A, CLUTCH FRICTION
$21.97¢10 987
1
#008
22321-MAT-000
PLATE, CLUTCH
$17.41¢8 706
1
#8
22321-MAT-000
PLATE, CLUTCH
$17.41¢8 706
1
#9
22351-MCA-000
PLATE, CLUTCH PRESSURE
$117.52¢58 762
1
#009
22351-MCA-000
PLATE, CLUTCH PRESSURE
$117.52¢58 762
1
#010
22352-MCA-000
GUIDE, SPRING
$46.95¢23 475
1
#10
22352-MCA-000
GUIDE, SPRING
$46.95¢23 475
1
#11
22353-MCA-000
PLATE, CLUTCH LIFTER
$37.56¢18 781
1
#011
22353-MCA-000
PLATE, CLUTCH LIFTER
$37.56¢18 781
1
#012
22354-MCA-000
LIFTER B, CLUTCH
$48.38¢24 188
1
#12
22354-MCA-000
LIFTER B, CLUTCH
$48.38¢24 188
1
#13
22355-MCA-000
SPRING, CLUTCH LIFTER
$21.44¢10 719
1
#013
22355-MCA-000
SPRING, CLUTCH LIFTER
$21.44¢10 719
1
#14
22366-MCA-000
PIECE, CLUTCH JOINT
$43.69¢21 844
1
#014
22366-MCA-000
PIECE, CLUTCH JOINT
$43.69¢21 844
1
#015
22402-MAT-000
SPRING, JUDDER
$28.11¢14 056
1
#15
22402-MAT-000
SPRING, JUDDER
$28.11¢14 056
1
#16
22425-MCA-000
SEAT, CLUTCH SPRING
$17.93¢8 963
1
#016
22425-MCA-000
SEAT, CLUTCH SPRING
$17.93¢8 963
1
#17
22431-MAT-000
CLIP, CLUTCH CENTER
$14.31¢7 156
1
#017
22431-MAT-000
CLIP, CLUTCH CENTER
$14.31¢7 156
1
#18
22441-MCA-000
SPRING, CLUTCH
$20.74¢10 369
1
#018
22441-MCA-000
SPRING, CLUTCH
$20.74¢10 369
1
#19
22851-MCA-000
ROD, CLUTCH LIFTER
$38.21¢19 106
1
#019
22851-MCA-000
ROD, CLUTCH LIFTER
$38.21¢19 106
1
#020
90206-MZ0-000
NUT, HEX. (22MM)
$12.49¢6 244
1
#20
90206-MZ0-000
NUT, HEX. (22MM)
$12.49¢6 244
1
#021
90245-MN5-000
NUT, LOCK (40MM)
$40.03¢20 013
1
#21
90245-MN5-000
NUT, LOCK (40MM)
$40.03¢20 013
1
#22
90403-MN5-000
WASHER, SPLINE (25MM)
$12.01¢6 006
1
#022
90403-MN5-000
WASHER, SPLINE (25MM)
$12.01¢6 006
1
#23
90407-MJ0-000
WASHER (22X33)
$8.36¢4 181
1
#023
90407-MJ0-000
WASHER (22X33)
$8.36¢4 181
1
#024
90491-MN5-000
WASHER, SPRING (40MM)
$28.24¢14 119
1
#24
90491-MN5-000
WASHER, SPRING (40MM)
$28.24¢14 119
1
#025
90601-MB0-771
CIRCLIP (INNER) (95MM)
$14.55¢7 275
1
#25
90601-MB0-771
CIRCLIP (INNER) (95MM)
$14.55¢7 275
1
#025
90601-MG8-000
CIRCLIP (INNER) (95MM)
$14.55¢7 275
1
#25
90601-MG8-000
CIRCLIP (INNER) (95MM)
$14.55¢7 275
1
#026
90602-MG8-000
RING, SETTING (123MM)
$19.69¢9 844
1
#26
90602-MG8-000
RING, SETTING (123MM)
$19.69¢9 844
1
#027
91008-362-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#27
91008-362-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#027
91008-KK6-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#27
91008-KK6-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#27
91010-HC0-003
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#027
91010-HC0-003
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#027
91011-KK6-013
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#028
91301-MG8-003
O-RING (51X2.3) (ARAI)
$3.65¢1 825
1
#28
91301-MG8-003
O-RING (51X2.3) (ARAI)
$3.65¢1 825
1
#029
91302-MG8-003
O-RING (92.3X2.3) (ARAI)
$6.71¢3 356
1
#29
91302-MG8-003
O-RING (92.3X2.3) (ARAI)
$6.71¢3 356
1
#30
94510-17000
CIRCLIP, OUTER (17MM)
$1.56¢781
1
#030
94510-17000
CIRCLIP, OUTER (17MM)
$1.56¢781
1
#31
94520-35100
CIRCLIP (INNER) (35MM)
$2.21¢1 106
1
#031
94520-35100
CIRCLIP (INNER) (35MM)
$2.21¢1 106
1
