FRAME 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

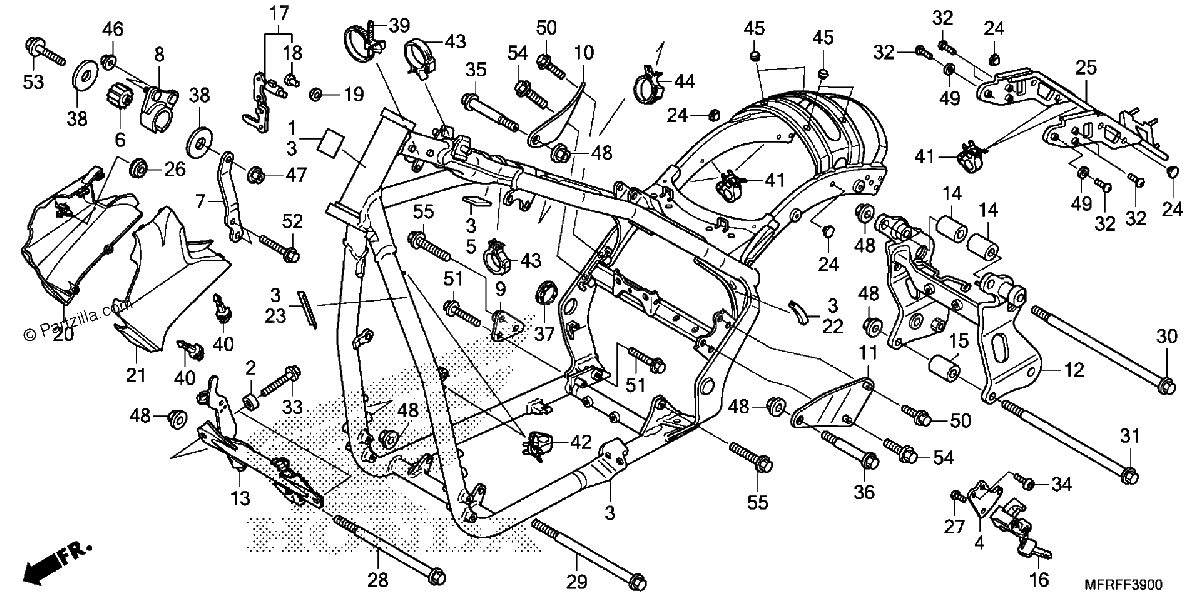

Diagrama de FRAME 1

Repuestos

#1
17528-KCZ-930
TAPE B, TANK GUARD
$4.42¢2 208
1
#2
18309-GN3-670
COLLAR B, MUFFLER STAY
$2.86¢1 432
1
#3
50010-MFY-A40ZA
FRAME SET *NH1* (BLACK)
$4379.22¢2 189 612
1
#4
50165-MFY-A00
BRACKET, HELMET HOLDER
$8.14¢4 071
1
#5
50190-MFY-A00
MAT, MAIN PIPE
$2.13¢1 064
1
#6
50201-MFY-A00
RUBBER, ENGINE HEAD MOUNTING
$10.50¢5 250
1
#7
50202-MFY-A00
PLATE, ENGINE HANGER (LOWER) (E)
$37.42¢18 711
1
#8
50203-MFY-A00
PLATE, ENGINE HANGER CENTER (E)
$69.11¢34 558
1
#9
50204-MFR-670
PLATE, RR. ENGINE MOUNT (LOWER) (RH)
$17.61¢8 803
1
#10
50207-MFR-670
PLATE, R. RR. ENGINE HANGER (UPPER)
$51.49¢25 743
1
#11
50208-MFR-670
PLATE, L. RR. ENGINE HANGER (UPPER)
$51.49¢25 743
1
#12
50210-MFR-670
PLATE, PIVOT MOUNT
$371.75¢185 874
1
#13
50220-MFY-A00
PIPE, FR. CROSS
$258.98¢129 490
1
#14
50221-MFR-670
COLLAR, ENGINE HANGER (24X41.5)
$10.37¢5 187
1
#15
50223-MFR-670
COLLAR, ENGINE HANGER (24X32)
$8.39¢4 198
1
#16
50710-GCN-003
HOLDER ASSY., HELMET (HONDALOCK)
$30.84¢15 421
1
#16
50710-GCN-305
HOLDER ASSY., HELMET (COO)
$30.84¢15 421
1
#17
53600-404-611
LOCK, HANDLEBAR
$99.08¢49 542
1
#18
53603-051-000
RIVET (4.1MM)
$3.01¢1 507
1
#19
53604-098-940
WASHER (4.5MM)
$2.81¢1 403
1
#20
63500-MFY-A40ZA
COVER, R. FR. SIDE *NH1* (BLACK)
$38.34¢19 171
1
#21
63600-MFY-A40ZA
COVER, L. FR. SIDE *NH1* (BLACK)
$38.34¢19 171
1
#22
64122-MBB-300
RUBBER, PROTECTOR
$5.22¢2 610
1
#23
76259-767-L00
SEAL, PROTECTOR
$3.23¢1 616
1
#24
77212-965-000
RUBBER, SEAT SIDE
$5.51¢2 754
1
#25
80132-MFY-A00
STAY, RR. FENDER
$299.51¢149 753
1
#26
83551-376-000
GROMMET, SIDE COVER
$3.36¢1 679
1
#27
90105-KEB-620
BOLT, ONE-WAY (6X12)
$2.68¢1 340
1
#28
90110-MFR-670
BOLT, FLANGE (10X148)
$9.22¢4 611
1
#29
90111-MFR-670
BOLT, FLANGE (10X151)
$9.64¢4 819
1
#30
90112-MFR-670
BOLT, FLANGE (10X235.5)
$11.41¢5 704
1
#31
90117-MFR-670
BOLT, FLANGE (10X212)
$11.41¢5 704
1
#32
90118-MR1-000
SCREW, PAN (6X14)
$3.45¢1 725
1
#33
90125-MFY-A00
BOLT, FLANGE (8X40) (G)
$3.96¢1 978
1
#34
90130-MEW-D20
BOLT, TORX (6X13)
$3.63¢1 817
1
#35
90154-MFR-670
BOLT, FLANGE (10X52)
$14.86¢7 429
1
#36
90155-MFR-670
BOLT, FLANGE (10X66)
$16.13¢8 067
1
#37
90312-MB0-700
CAP, Right LOCK NUT
$19.45¢9 723
1
#38
90455-896-700
WASHER, TANK MOUNTING
$3.50¢1 748
1
#39
95701-08055-07
BOLT, FLANGE (8X55)
$2.18¢1 092
1
#39
90672-SA0-003
STRAP, CABLE (118MM) (BLACK)
$6.97¢3 484
1
#40
90683-GAZ-003
CLIP, TRIM
$4.24¢2 122
1
#41
90690-GHB-631
CLIP, CABLE (8MM)
$2.59¢1 294
1
#42
90690-GHB-641
CLIP, CABLE (10MM)
$2.59¢1 294
1
#43
90690-GHB-651
CLIP, CABLE (15MM)
$2.59¢1 294
1
#44
90690-GHB-701
CLIP, CABLE (17MM)
$3.36¢1 679
1
#45
90852-446-630
PLUG, HOLE
$3.04¢1 518
1
#46
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#47
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#48
94050-10070
NUT, FLANGE (10MM)
$3.74¢1 869
1
#48
90303-428-900
NUT, FLANGE (10MM)
$3.74¢1 869
1
#49
94103-06800
WASHER, PLAIN (6MM)
$0.92¢460
1
#50
95701-08025-07
BOLT, FLANGE (8X25)
$1.09¢546
1
#51
95701-08028-07
BOLT, FLANGE (8X28)
$1.47¢736
1
#52
95701-08030-07
BOLT, FLANGE (8X30)
$2.69¢1 346
1
#54
95701-10025-07
BOLT, FLANGE (10X25)
$1.68¢839
1
#55
95701-10032-07
BOLT, FLANGE (10X32)
$2.09¢1 047
1
